THIS CRIB CONFORMS TO APPLICABLE
REGULATIONS PROMULGATED BY THE
CONSUMER PRODUCT SAFETY COMMISSION

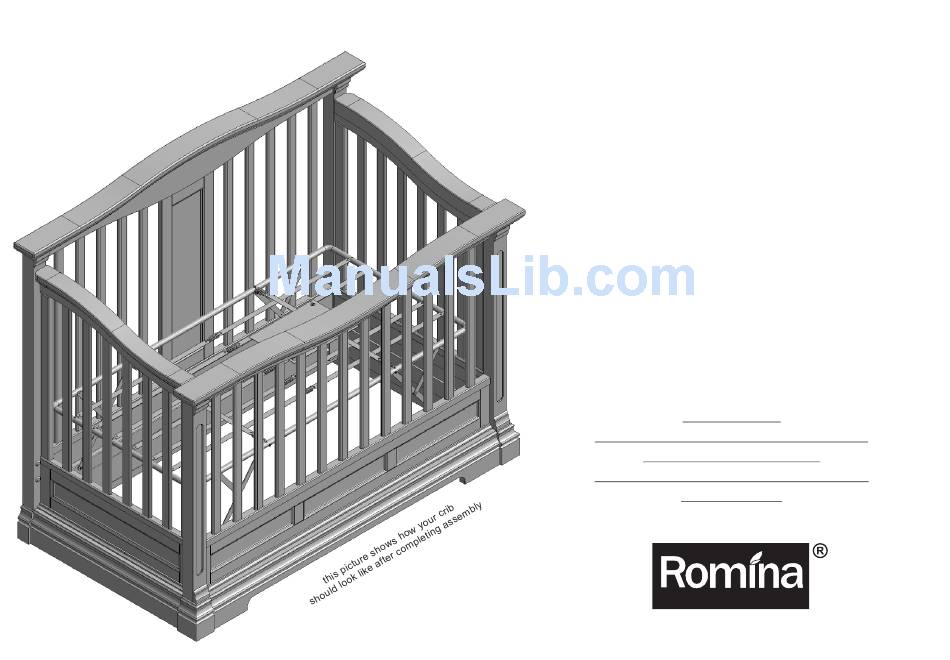

ASSEMBLY INSTRUCTIONS
FOR YOUR 8501 & 8501 SP
CONVERTIBLE CRIBS
* READ ALL INSTRUCTIONS BEFORE ASSEMBLING
CRIB. KEEP INSTRUCTIONS FOR FUTURE USE.
* NEVER USE PLASTIC SHIPPING BAGS OR OTHER
PLASTIC FILM AS MATTRESS COVERS BECAUSE
T H E Y
* INFANTS CAN SUFFOCATE IN GAPS BETWEEN CRIB
SIDES AND A MATTRESS THAT IS TOO SMALL.
DO NOT THROW OUT THIS INSTRUCTION BOOKLET
NOTE: THE STYLE OF YOUR
CRIB, HEADBOARD
OR OF
YOUR MATTRESS SUPPORT
MAY VARY FROM WHAT IS
P I C T U R E D
I N
T H E
INSTRUCTION SHEET
C A N
C A U S E
IMPORTANT:
PLEASE, READ ALL INSTRUCTIONS
BEFORE ASSEMBLING!
PLEASE, SAVE INSTRUCTIONS FOR
FUTURE USE
