THIS CRIB CONFORMS TO APPLICABLE
REGULATIONS PROMULGATED BY THE
CONSUMER PRODUCT SAFETY COMMISION
AND BY THE
AMERICAN SOCIETY FOR TESTING AND
MATERIALS
NOTE: THE STYLE OF YOUR CRIB OR OF YOUR
MATTRESS SUPPORT MAY VARY FROM WHAT IS
PICTURED IN THE INSTRUCTION SHEET

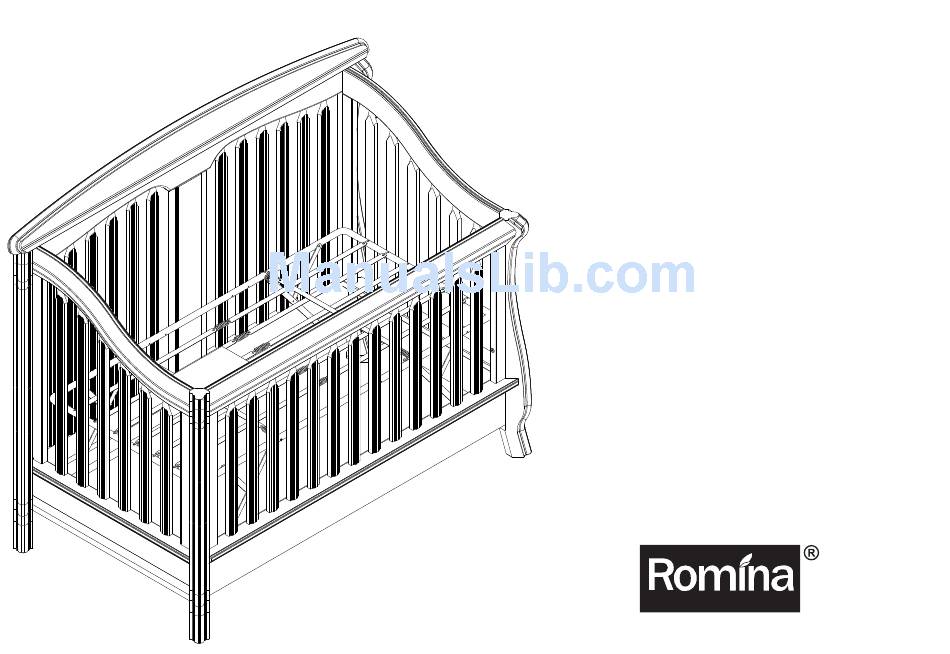

ASSEMBLY INSTRUCTIONS
FOR
3
01 NERVA CRIB
WARNING:
THE PROPER USE OF THIS CRIB IS
IMPORTANT FOR YOUR BABY'S SAFETY. TO KEEP
Y O U R
B A B Y
S E C U R E
AND TO AVOID POTENTIAL INJURY OR DEATH,
CAREFULLY READ AND FAMILIARIZE YOURSELF
W I T H A L L W A R N I N G S , C A U T I O N S A N D
INSTRUCTIONS IN THE INSTRUCTION BOOKLET.
KEEP THIS INSTRUCTION BOOKLET FOR FUTURE
.
USE
DO NOT THROW THIS INSTRUCTION BOOKLET
* READ ALL INSTRUCTIONS BEFORE ASSEMBLING
CRIB. KEEP INSTRUCTIONS FOR FUTURE USE.
* NEVER USE PLASTIC SHIPPING BAGS OR OTHER
PLASTIC FILM AS MATTRESS COVERS BECAUSE
T H E Y
C A N
C A U S E
* INFANTS CAN SUFFOCATE IN GAPS BETWEEN CRIB
SIDES AND A MATTRESS THAT IS TOO SMALL.
20 Corporation Row, Edison, NJ 088 7
Phone
(718) 478 5100, Fax (718) 478 5117
www.rominakidsfurniture.com
YOUR
A N D
S A F E ,
S U F F O C A T I O N .
Furniture
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 301 Nerva and is the answer not in the manual?

Questions and answers

Summary of Contents for Romina 301 Nerva

  • Page 1 THIS CRIB CONFORMS TO APPLICABLE REGULATIONS PROMULGATED BY THE CONSUMER PRODUCT SAFETY COMMISION ASSEMBLY INSTRUCTIONS AND BY THE AMERICAN SOCIETY FOR TESTING AND MATERIALS YOUR 01 NERVA CRIB WARNING: THE PROPER USE OF THIS CRIB IS IMPORTANT FOR YOUR BABY'S SAFETY. TO KEEP Y O U R B A B Y S E C U R E...
  • Page 4 / bolt on the upper diagram which is drawn in actual size. ROMINA FURNITURE or your local Be sure to use the proper size and shape specified in the instructions.
  • Page 5 STEP 1 Attach the right panel of your crib to the back panel using 3 Allen bolts washers and the Allen wrench supplied Do the same for the left panel Do not tighten the bolts completely at this step, you will be asked to do so later. this shows how your crib should look after completing STEP 1 FIGURE 1...
  • Page 6 STEP 2 Assemble the result of STEP 1 with the front panel using 4 Allen bolts 4 washers and the Allen wrench supplied Do not tighten the bolts completely at this step, you will be asked to do so later. this shows how your crib should look after completing STEP 2 FIGURE 2...
  • Page 7 STEP 3 Assemble the mattress support using 4 bigger round head bolts "butterfly" type nuts smaller lock washers and a Phillips screwdriver (not supplied). The lock washer must be attached to the bolt after the bolt passed through the frame and the metallic bracket of the mattress support and before attaching the nut.
  • Page 8 WARNING: STEP 4 TO KEEP YOUR BABY Insert the mattress support into the crib and fix it SECURE AND SAFE, AND TO AVOID on the back panel through the wooden blocks POTENTIAL INJURY OR DEATH, IT'S using 2 rounded head bolts , 2 washers VERY IMPORTANT TO TIGHTEN...
  • Page 9 STEP 5 Turn your crib with its feet back on the floor. FIGURE 5...
  • Page 10 STEP 6 WARNING! sing the Allen wrench supplied, you must tighten TIGHTEN COMPLETELY! completely all the Allen bolts (2+7) remained untighten from all previous steps (see FIGURE 6 REMINDER You have a total of 10 Allen bolts, distributed as following: - 4 bolts (2+7) in the bottom part of back panel...
  • Page 11 Once completed STEP 6 , attach the storage pouch supplied to the mattress support spring using two plastic ties (also supplied). Store this instruction booklet in the storage pouch for future use. this shows how your crib should look like after completing assembly...
  • Page 12 ASSEMBLY INSTRUCTIONS DAY BED OPTION OF YOUR 01 NERVA CRIB WARNING (FOR DAY BED OPTION ONLY): § ANY MATTRESS USED IN THIS CRIB MUST BE AT LEAST 27 1/4 INCHES BY 51 5/8 INCHES WITH A THICKNESS NOT EXCEEDING 6 INCHES. §...
  • Page 13 STARTING FROM CRIB STEP A Turn your crib and place it with the back panel on the floor. Please, take care not to scratch the finish of your crib. Remove the mattress support unscrewing completely all the 4 rounded head bolts (1+8) found on the back panel and the front panel...
  • Page 14 STEP B Remove all the 4 bigger round head bolts & nuts (5+8+6) located on your mattress support, adjust this to it's lowest position WARNING! then tighten completely all the 4 bolts & TIGHTEN COMPLETELY! nuts (5+8+6) in their new position using a Phillips screwdriver (not supplied).
  • Page 15 STEP C Insert the mattress support as it was adjusted at STEP B into the crib and fix it on the back panel and the front panel using the same tehnique described in STEP 4 Tighten completely the four rounded head bolts (1+8) involved in mattress support fixing...
  • Page 16 STEP D Using the supplied Allen wrench unscrew completely the 4 Allen bolts and washers (previously mounted in factory) located 2 by 2 on the lateral sides of the front panel . Then, remove the middle panel resulted (see FIGURE D ).
  • Page 17: Starting From Scratch

    STARTING FROM SCRATCH § FOLLOW STEPS 1 TO 6 FROM THE CRIB ASSEMBLY INSTRUCTIONS. WHEN YOU REACH STEP 3 , PLEASE ADJUST YOUR MATTRESS SUPPORT TO ITS LOWEST POSITION (YOU MUST ALSO SEE STEPS B & 3 FOR MORE DETAILS). §...
  • Page 18 FULL SIZE BED OPTION OF YOUR 01 NERVA CRIB NOTE: YOUR 301 NERVA CRIB CAN CONVERT INTO A FULL SIZE BED WITH THE PURCHASE OF ROMINA FURNITURE ITEM CODE CKC 301 C ( ONVERSION FOR RIBS, code 301 . ASSEMBLY INSTRUCTIONS FOR FULL SIZE BED OPTION CAN BE FOUND INSIDE OF CKC PACKAGE.
  • Page 20 Regular cleaning with mild soap on a soft cloth, followed by a clean damp cloth, then a dry cloth, will preserve the original luster and beauty of this fine finish of your Romina Furniture product. Thank you for beeing one of our distinguished clients.
