THIS CRIB CONFORMS TO APPLICABLE
REGULATIONS PROMULGATED BY THE
CONSUMER PRODUCT SAFETY COMMISSION
NOTE: THE STYLE OF YOUR CRIB OR OF YOUR
MATTRESS SUPPORT MAY VARY FROM WHAT IS
PICTURED IN THE INSTRUCTION SHEET

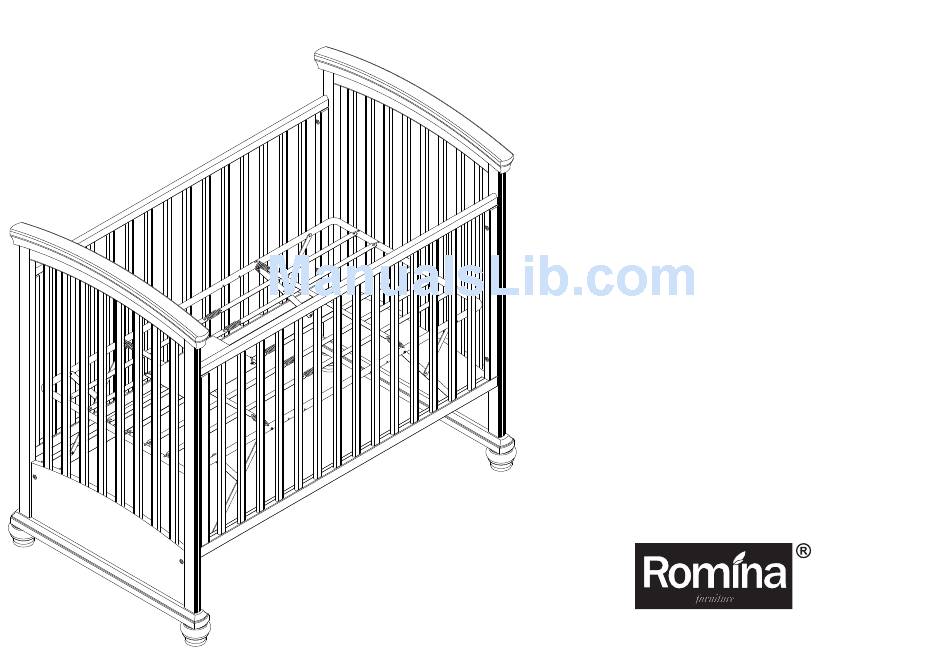

ASSEMBLY INSTRUCTIONS
FOR YOUR
401s STATIONARY CRIB
WARNING:
THE PROPER USE OF THIS CRIB IS
IMPORTANT FOR YOUR BABY SAFETY. TO KEEP
Y O U R
B A B Y
S E C U R E
AND TO AVOID POTENTIAL INJURY OR DEATH,
CAREFULLY READ AND FAMILIARIZE YOURSELF
W I T H A L L W A R N I N G S , C A U T I O N S A N D
INSTRUCTIONS IN THE INSTRUCTION BOOKLET.
KEEP THIS INSTRUCTION BOOKLET FOR FUTURE
.
USE
DO NOT THROW OUT THIS INSTRUCTION BOOKLET.
* READ ALL INSTRUCTIONS BEFORE ASSEMBLING
CRIB. KEEP INSTRUCTIONS FOR FUTURE USE.
* NEVER USE PLASTIC SHIPPING BAGS OR OTHER
PLASTIC FILM AS MATTRESS COVERS BECAUSE
T H E Y
C A N
C A U S E
* INFANTS CAN SUFFOCATE IN GAPS BETWEEN CRIB
SIDES AND A MATTRESS THAT IS TOO SMALL.
20 Corporation Row, Edison, NJ 088 7
Phone (718) 478 5100, Fax (718) 478 5117
www.rominafurniture.com
A N D
S A F E ,
S U F F O C A T I O N .
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 401s and is the answer not in the manual?

Questions and answers

Summary of Contents for Romina 401s

  • Page 1 ASSEMBLY INSTRUCTIONS THIS CRIB CONFORMS TO APPLICABLE REGULATIONS PROMULGATED BY THE CONSUMER PRODUCT SAFETY COMMISSION FOR YOUR 401s STATIONARY CRIB WARNING: THE PROPER USE OF THIS CRIB IS IMPORTANT FOR YOUR BABY SAFETY. TO KEEP Y O U R B A B Y...
  • Page 4 / bolt on the upper diagram which is drawn in actual size. Be sure to ROMINA FURNITURE or your local use the proper size and shape specified in the instructions.
  • Page 5 STEP 1 Attach one of the stabilizing bars (S) to left side (L) of opposite view the crib using 1 Allen bolt (3), 1 washer (8) and 1 barrel nut (4). Align the tenon attached at the end of the stabilizing bar with the upper hole existing on the inner face of the left side of the crib.
  • Page 6 STEP 2 Repeat STEP 1 for the second stabilizing bar. this shows how your crib should look after completing STEP 2 FIGURE 2...
  • Page 7 STEP 3 Assemble the result of STEPS 1&2 with the right side (R) of the crib using the same technique described above. Do not completely tighten the bolts at this step, you will be asked to do this later. this shows how your crib should look after completing STEP 3 FIGURE 3...
  • Page 8 STEP 4 Assemble the mattress support using 4 bigger round head bolts (5), 4 "butterfly" type nuts (7), 4 smaller lock washers (9) and a Phillips screwdriver (not supplied). The lock washer must be attached to the bolt after the bolt passed through the frame and the metallic bracket of the mattress support and before attaching the nut.
  • Page 9 STEP 5 WARNING: TO KEEP YOUR BABY Mount the mattress support on the stabilizing bars as these SECURE AND SAFE, AND TO AVOID resulted after STEP 3, using 4 smaller round head bolts (6), POTENTIAL INJURY OR DEATH, IT'S 4 washers (9) and a Phillips screwdriver.
  • Page 10 STEP 6 - position one fixed side (F) with the rounded horizontal rail on top then attach it to the part of your crib resulted after STEP 5, using 4 Allen bolts (3), 4 washers (8) and the Allen wrench supplied (1); - do the same for the second fixed side Do not completely tighten the bolts at this step, you will be asked to do this later.
  • Page 11 STEP 7 WARNING! Now, using the Allen wrench (1) supplied, you must completely tighten all the bolts (3+8) TIGHTEN COMPLETELY! which remained not tightened from all previous steps (see FIGURE 7). REMINDER You have a total of 12 bolts, distributed as following: - 8 bolts (3+8) in the fixed sides (F);...
  • Page 12 Store this instruction booklet in the storage pouch for future use. TODDLER RAIL OPTION OF YOUR 401s STATIONARY CRIB (SOLD SEPARATELY) YOU CAN ATTACH A TODDLER RAIL TO YOUR CRIB WITH THE PURCHASE OF ROMINA FURNITURE ITEM TR 401 (TODDLER RAIL 401).
  • Page 14 Regular cleaning with mild soap on a soft cloth, followed by a clean damp cloth, then a dry cloth, will preserve the original luster and beauty of the fine finish of your Romina Furniture product. Thank you for being one of our distinguished clients.
