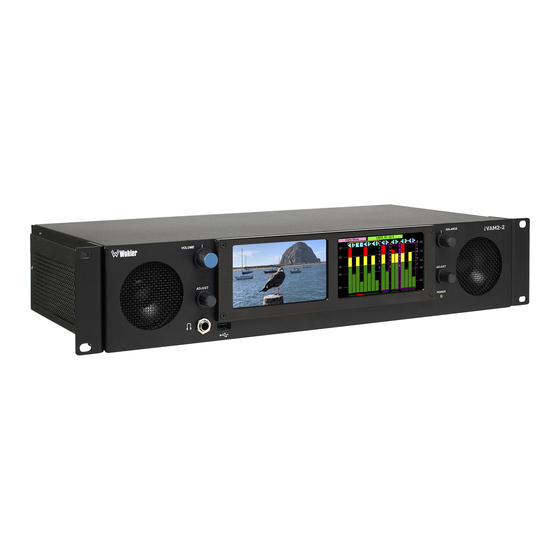

iVAM2-2
2RU Multi-Channel Audio Video Monitor
User Guide
Part Number 821831, Revision D

Advertisement

loading
Need help?

Need help?

Do you have a question about the iVAM2-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wohler iVAM2-2

Summary of Contents for Wohler iVAM2-2

  • Page 1 2RU Multi-Channel Audio Video Monitor User Guide Part Number 821831, Revision D...
  • Page 2 In no event will Wohler Technologies, Inc. be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect in the hardware, software, or its documentation, even if advised of the possibility of such damages.
  • Page 3 Unit Configuration ................27 Phase Configuration................28 HDMI Settings ................... 29 Analog Configuration ................30 Source Select ..................31 Presets ..................... 32 Preset Favorites ................. 33 All Presets ..................34 Loudness Meter.................. 35 Loudness Settings ................37 Page 3 iVAM2-2...
  • Page 4 System Details................... 44 Passcode Settings ................45 Forgotten Passcode ................47 CHAPTER 3: Technical Info ............... 48 CHAPTER 4: The iVAM2-2 Web GUI ............. 53 Web Browser / Control Device................ 53 First Time IP Assignments ................53 Peer-to-Peer Connection..............53 Network Connection................
  • Page 5 Updating an iVAM2-2 Remotely ..............94 Updating Multiple Units Remotely ..............96 APPENDIX B: Dante Network Setup ............. 99 Introduction ....................99 What is in the iVAM2-2 for Dante..............99 Dante Device Setup ..................101 Dante Clock Selection ..................102 Channel Names...................102 AES67 .......................103...
  • Page 6 APPENDIX E: API Documentation ............118 Introduction ....................118 API: Presets ....................118 APPENDIX F: Out of Band Control............130 Introduction ....................130 SFP IP Address Configuration ................130 SFP System Configuration ................131 SFP 2110 Configuration................132 SFP 2110 Preset Config ................135 Diagnostic Information.................136 Page 6 iVAM2-2...
  • Page 7 HDMI output. Any channels (or channel pairs) from any audio/video source stream may be monitored. The iVAM2-2 includes two 3G SDI inputs and it can monitor both video and audio from them. Optional modules will allow decoding of an additional SDI input, MADI, AES3, Dolby D, DD+, E, SMPTE 2110, SMPTE 2022-6, and AES streams.
  • Page 8 Heat generated by the class D power amplifiers, power supplies, and other components is vented by slots in the sides and back of the unit. Therefore, as a safety precaution, you must allow proper ventilation on these surfaces. Page 8 iVAM2-2...
  • Page 9 ICES-003 This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. Page 9 iVAM2-2...
  • Page 10 CHAPTER 2: Local Operation Operation The iVAM2-2 can be operated easily and simply from controls on its front panel, as described in this chapter. It may be accessed remotely in two ways, via the Wohler Web GUI for administrative purposes or by third party equipment via Application Programming Interface (API) commands.
  • Page 11 Channel control once again. 9. USB: This USB 2.0 Type A connector allows you to use a flash drive (not supplied) iVAM2-2 to perform software updates and copy system configurations to another or to a PC. Refer to Appendix A of this manual to learn about performing a software update.
  • Page 12 Cage Cage Power Connection: The iVAM2-2 receives power from an AC inlet, which is a standard IEC receptacle for 100 to 240 VAC ±10%, 50/60 Hz power connection. Four regional AC power cords, supplied according to shipping region, are available.
  • Page 13 Chapter 4 of this manual. Third party equipment, connecting to the iVAM2-2 via a LAN plugged into this port and using an API commands, can view and change product options, as well. This API is described in Appendix E of this manual.
  • Page 14 Wohler Technologies Technical Service. e. SMTPE 2110 or 2022-6 Receiver: This uses Multi-Mode 850 NM, LC fiber connectors. It allows the iVAM2-2 to monitor SDI audio transmitted in real time over Ethernet. You must use the MN-Set configuration software to set up this option. It is available from Wohler Technologies Technical Service.
  • Page 15 Volume and Balance controls. The Analog Outputs are standard on the iVAM2-2. Refer to Figure 2-5 for the pinout of this connector. Figure 2-5: Analog XLR-M Output Connections 12. Option Card Slot: This metal plate can be removed to reveal a location in which future optional modules can be installed.
  • Page 16 Ethernet characteristics. However, the two different ports cannot be used simultaneously. You must choose to connect either one or the other. Page 16 iVAM2-2...
  • Page 17 To integrate it into your digital network, you need to set its address to the source to be monitored. You must use the MN-Set configuration software to set up this option. It is available from Wohler Technologies Technical Service. The procedure to accomplish this is described in the SFP-2022-6 / SFP-2110 Setup Guide (part number 821822), which is available at https://wohler.com/downloads/...
  • Page 18 Dolby bitstream. Refer to the Dolby Zoom section of this chapter. 2. Source/Preset: This displays the name of the Source or Preset currently being displayed. 3. Loudness Cluster Marker: This orange bracket marks which cluster is currently being measured for Loudness. Page 18 iVAM2-2...
  • Page 19 Mute / Un-Mute Selection: A violet box surrounds any channel pair that is muted. Typically, when the iVAM2-2 is first powered, all of the channel pairs are muted. Touching a muted channel pair un- mutes it and removes the violet box. Muting and un-muting by touching is an alternate action function.
  • Page 20 Dolby Zoom Screen is shown in Figure 2-10. Dolby decoding is an optional feature requiring the OPT-DOLBY module. It allows decoding and monitoring of Dolby® D, DD+, & E streams. Refer to the System Setup section in Chapter 4 to install software licenses. Page 20 iVAM2-2...
  • Page 21 A wide range of Metadata is available, which can help you diagnose possible problems. It will vary according to the type of Dolby signal. For example, for checking Guard Band, the iVAM2-2 will display the Line Position of each Dolby E bitstream in the Dolby signal.
  • Page 22 HDMI Settings Screen Analog Config Analog Config Screen System Options Network Settings Network Settings Screen System Reboot System Reboot Screen System Update System Update Screen Factory Reset Factory Reset Screen Passcode Settings Passcode Settings Screen System Details Screen Page 22 iVAM2-2...
  • Page 23 Touching the Unit Settings selection on the Main Menu screen proceeds to the Unit Settings Menu, which contains additional menu selections. The Unit Settings Menu is shown in Figure 2-13. This is an intermediary menu which leads to other menus and screens. Figure 2-13: Unit Settings Menu Page 23 iVAM2-2...
  • Page 24 Touching the Speaker Options selection on the Unit Settings Menu screen proceeds to the Speaker Options screen. The controls on this screen affect various characteristics of the monitored audio as heard on the iVAM2-2. This screen is shown in Figure 2-14.
  • Page 25 Touch the left or right arrows to select the scale. A representation of the chosen scale will be shown at the right. The possible scales that can be selected are shown in Figure 2-16. Figure 2-16: Meter Scale Selection Page 25 iVAM2-2...
  • Page 26 10 ms to reach -2 dB of IEC Type II -24 dB 2.8 sec. settled reading None Bar or Floating Segment Not Displayed When you have made your choices, touch Save to retain them. Touch Back to exit this screen. Page 26 iVAM2-2...
  • Page 27 4. AES termination: AES signals should have one and only one termination. This termination should physically be at the last destination of an AES coax cable. If the iVAM2-2 is the last connection in a series of AES connections, then its terminations should be turned on. A symptom of too many terminations (or no termination) is that no signal appears to be present on the AES input.
  • Page 28 Effects channel. In these instances, the Phase Indicator would almost always indicate an out of phase condition. Because this would be a needless distraction to the operator, switches are provided on this screen to individually turn phase monitoring for each channel pair on or off. Page 28 iVAM2-2...
  • Page 29 (EDID) to disclose their capabilities to the video source. The iVAM2-2 can use this information to ensure its compatibility with the HDMI Monitor. If you decide that you do not want the iVAM2-2 to receive this information, set this switch to Off. By default this switch is set to On.
  • Page 30 Analog Config screen. Contained in this menu is an Analog Reference as illustrated in Figure 2-20. The parameters set on this screen pertain to the Analog Input and Analog Output DB25 and XLR connectors on the rear panel of the iVAM2-2. Figure 2-20: Analog Configuration Menu Analog Config...
  • Page 31 This screen also shows sources which are unlicensed and therefore nonfunctional. These sources are shown in a gray color. To license these sources so that they may be used, contact Wohler Technologies. Figure 2-21 shows the Source Select Menu.
  • Page 32 Presets, use the Configure Presets page in the Web GUI to do so. Refer to Chapter 4. Or, if you prefer not to set up any Presets, simply monitor the sources directly using the Source Select button in the Menu. Page 32 iVAM2-2...
  • Page 33 Favorite Presets have been designated, this screen will appear as shown in Figure 2-24. Figure 2-24: Preset Favorites Screen - No Favorites Menu Input Source: SDI-1 No presets have been created. You can use source select Create presets using the iVAM2-2 web interface. Page 33 iVAM2-2...
  • Page 34 To return to the All Presets Group Selection screen instead, touch the Groups button. To return to the Menu without making a selection, touch the Menu button. Page 34 iVAM2-2...
  • Page 35 Loudness calculation. Refer to the Configuration | System Preference | Loudness Configuration tab in the Web GUI. The following data is available on the Loudness Meter Screen: Page 35 iVAM2-2...
  • Page 36 5. Stop: When Manual Mode is selected in the Loudness Settings screen, the Stop button will stop gathering loudness data. Data will be held for viewing and not be reset using this control. 6. Back: Touching the Back button to go to the Loudness Menu. Page 36 iVAM2-2...
  • Page 37 2. Under: The Alarm indication will only appear when Loudness is below the Reference Level by the Tolerance amount. 3. Both: The Alarm indication will only appear when Loudness has exceeded or is below the Reference Level by the Tolerance amount. 4. Off: The Alarm indication will not appear. Page 37 iVAM2-2...
  • Page 38 This menu is shown in Figure 2-30. Figure 2-30: System Options Menu System Options Menu Network Settings System Reboot System Update Factory Reset Passcode Settings Touch Menu to exit this menu. Page 38 iVAM2-2...
  • Page 39 3. Now repeat steps 1 and 2 until you have replaced all of the necessary digits. 4. To save the newly entered address, touch the Enter button. Touch the Cancel button to return to the previous screen without saving any changes. Page 39 iVAM2-2...
  • Page 40 Important: There is no confirmation for Save and Exit, so make sure you want to perform this action before taking it. The system will not need to reboot before it is once again ready for operation. Page 40 iVAM2-2...
  • Page 41 You wish to Reboot the System? If you have any doubt as to whether you should press Yes, press Back or No instead, and contact Wohler Technical Service for advice. Pressing Back or No will return you to the System Options menu.
  • Page 42 Touching the System Update selection in the System Options Menu displays System Update screen as shown in Figure 2-35, showing the current software version of the product. To update the system software locally from the iVAM2-2 front panel, follow the procedure in the Local Update from the Front Panel section of Appendix A.
  • Page 43 Mac address 28.) If you have any doubt as to whether you should press Yes, press Back or No instead, and contact Wohler Technical Service for advice. Pressing Back or No will return you to the System Options menu.
  • Page 44 Valid / Normal System IP Address 169.254.1.100 Software 1.0.7 Serial Number 000000 MAC Address b4:ed:54:d0:07:64 Option Card Not Installed The information shown on this screen is read only and cannot be changed. Touch Menu to exit this screen. Page 44 iVAM2-2...
  • Page 45 To prevent accidental or unauthorized changing of critical settings in some of the menus, it is possible to block or restrict access to various menus. The Wohler Web GUI can be used to limit access to the menus of your choice. Refer to Chapter 4, the Front Panel Configuration tab of System Preferences.
  • Page 46 4-digit number. Touch Enter to save the new Passcode or touch Cancel to keep the previous Passcode. Be sure to save the Passcode in a safe place for future reference. Figure 2-41: Set Passcode Screen Set Passcode Backspace Clear Cancel Enter Page 46 iVAM2-2...
  • Page 47 Although the Passcode should be remembered or securely noted somewhere, it can happen that it is forgotten. This can be remedied by performing a Factory Reset from the Wohler Web GUI. Unfortunately, this will also erase all of the menu settings. You may also contact Wohler Technical Service for help.
  • Page 48 CHAPTER 3: Technical Info Table 3–1: iVAM2-2 Specifications Specification Values/Domains Power Requirements 100 VAC to 240 VAC ± 10%, 50/60Hz Power Consumption 65 Watts Dimensions 3.5” x 19” x 5.5” (88mm x 483mm x (H x W x D) 140mm), standard 19” rack mounting Shipping/Net Weight 12 lbs.
  • Page 49 15 Watts RMS, 30 Watts peak (each side) Acoustic Frequency 60 Hz to 16 kHz (± 5 dB) Response Headphone Out - Stereo Stereo, 40 Hz to 20 kHz (± 1 dB) Headphone Load 8Ω to 150Ω Page 49 iVAM2-2...
  • Page 50 Table 3–2: iVAM2-2 I/O Options Option Part # Description MADI optical fiber transceiver. Multi-Mode, LC SFP-Madi-MM- 829081 (fiber) connectors. SFP module with software Fiber activation key. MADI optical fiber transceiver. Single-Mode, SFP-Madi-SM- 829082 LC (fiber) connectors. SFP module with Fiber software activation key.
  • Page 51 Table 3–3: iVAM2-2 Option Cards Option Part # Description Enables decoding and monitoring of Dolby® OPT-DOLBY 829167 D, DD+, & E streams. Hardware card with D/DD+/E software activation key. OPT-ANLG/TOS Enable monitoring of 8 Analog channels on 829170 (iVAM) DB-25. TOSLINK included.
  • Page 52 Figure 3–1: iVAM2-2 Block Diagram 3G-SDI Input 1 HDMI Output Video from SDI 1, 2, or SFP 3G-SDI Input 2 Touchscreens for Video / Audio Meters / Loudness / Control Video 3G-SDI Output Audio & Video from SDI 1, 2, or SFP...
  • Page 53 If the default configuration suits your needs and you prefer to use it that way, then you do not need to use the iVAM2-2 Web GUI. The iVAM2-2 Web GUI also allows you to have a remote view of the Meter Screen.
  • Page 54 GUI. Network Connection When connected to a network, the iVAM2-2 address will need to be changed to another address in order to be compatible with the address assignments for that particular network. Immediately after the host setup is complete, change the iVAM2-2’s address.
  • Page 55 Network Setup Make network IP Address changes for the local iVAM2-2 Management (MGMT) Port here. Figure 4–2: Set IP Addresses The procedure for changing the IP Address information is as follows: 1. Use DHCP? Check this box if your network has a DHCP server and you want to use dynamic addressing.
  • Page 56 Throughout the Web GUI, pages are a click or two away using the list of selections on the left side. The Dashboard page shows all of the available Preset configurations at a glance. The iVAM2-2 allows you to assign Presets to particular groups. In Figure 4-3, two groups, Operator-1 and Operator-2 are shown.
  • Page 57 Figure 4–4: Dashboard Preset Recall / Edit A Group / Preset Summary is shown in the upper right of the screen. This enables you to see the total number of Groups, Presets and Favorite Presets in the iVAM2-2. Use the button, as shown in Figure 4-4, to toggle between Favorite Presets or All Presets.
  • Page 58 1. Delete: Remove the Preset from the system. Do Not delete the currently active Preset. 2. Rename: Rename the Preset, but keep all of its other characteristics. 3. Make Favorite: Make this Preset a favorite. This can be done for frequently used Presets. Page 58 iVAM2-2...
  • Page 59 Figure 4–6: Dashboard Group Edit The Edit options for a Group are as follows: 1. Delete: Delete the Group and all of the Presets it contains. 2. Rename: Rename the Group, but keep all of its other characteristics. Page 59 iVAM2-2...
  • Page 60 Audio Meters Click on Audio Meters to remotely display the audio meters of the iVAM2-2. This display is shown in Figure 4-7. Also displayed is the name of the source that the meters are displaying. In Figure 4-7, this is SDI/BNC-1.
  • Page 61 Reference. This tab is shown in Figure 4-8. This System Audio Clock Reference setting can be overridden by the optional System Clock Reference setting in the Preset Management menu when the Preset is chosen. Figure 4–8: System Audio Clock Reference Tab Page 61 iVAM2-2...
  • Page 62 Above or below this range will result in color changes in the graph. 7. Loudness Window: This may be set to Momentary, Short, or one of 22 values, ranging from one second to two hours. 8. Monitoring Mode: Page 62 iVAM2-2...
  • Page 63 Select All and Reset All buttons are also provided. Figure 4–10: Phase Indicator Configuration Tab When you have finished making the settings click Apply to save them or click Cancel to discard them. Page 63 iVAM2-2...
  • Page 64 Continue button to try again. If you have forgotten the Passcode, this can be remedied by performing a Factory Reset. Unfortunately, this will also erase all of the menu settings. You may also contact Wohler Technical Service for help. Figure 4-12: Unrecognized Passcode...
  • Page 65 You may set which menus are affected by restrictions. Click any menu shown to change it between affected (red icon) and unaffected (green icon). Apply: When you have completed the desired settings in this tab, click Apply to put them into effect. Page 65 iVAM2-2...
  • Page 66 1. Preset Configuration: You may create a new Preset, adjust an existing Preset, or create a new Preset from an existing Preset: To create a new Preset, enter the name for the new Preset in the • Page 66 iVAM2-2...
  • Page 67 Clicking a Cluster Info box opens a Cluster selection box. In the Cluster box, you can select the type of Cluster from a pull down selection. The available Cluster Type selections are: Mono 1.0: The channel will appear within a single-channel cluster. • Page 67 iVAM2-2...
  • Page 68 System Preference tab. However, to make unique settings for this Preset, uncheck Apply Global Phase Indicator Settings and then simply click each switch to the desired on or off position. Select All and Reset All buttons are also provided. Page 68 iVAM2-2...
  • Page 69 It allows you to view, but not change this default routing. Figure 4-17: Default Output Routing Default Output Routing However, if the OPT-OUTPUT-ROUTING license is installed, this tab allows you to determine exactly which input channels are routed to which outputs. Page 69 iVAM2-2...
  • Page 70 Save button to save the Preset, click the Save & Apply button to save the Preset and make it the current Preset, or click the Reset button to discard the changes just made. These selections are shown in Figure 4-18. Page 70 iVAM2-2...
  • Page 71 1 - 16 to meters 1 - 16, simply click the Autofill button. Note that by default, channels 15 and 16 are a downmix of the decoded Dolby channels. When you have finished making all of the settings for this Dolby Preset, click Save & Apply. Page 71 iVAM2-2...
  • Page 72 Six or eight channels could be directed to the AES outputs, which could feed an external surround sound system. Contact Wohler Sales to purchase the license for the OPT-OUTPUT- ROUTING feature.
  • Page 73 The source inputs which may be routed are described in this section. 1. Cluster Information: Cluster information show type of cluster and cluster name. 2. Speaker Assignment: Speaker assignment can be used to configure to which speakers the audio is routed to. The possible options are: Left Right Page 73 iVAM2-2...
  • Page 74 What signal outputs can be controlled using the Output Routing feature? All the outputs on the iVAM2-2 can be controlled using the Output Routing feature. This includes – Internal Speakers, Analog XLR outputs, all 4 pairs of AES outputs on HD-15, AoIP Pair 9 and Pair 10 and all 4 pairs of HDMI outputs.
  • Page 75 Using Global Output Routing (optional licensing upgrade), you may route any signals to the XLR & AES outputs. You may route signals to the XLR outputs using the Analog/XLR checkboxes and route signals to the AES outputs by using the AES/Pair 1 to Pair 4 checkboxes. Page 75 iVAM2-2...
  • Page 76 The setting shown above determines that outputs will follow the Audio Meter screen solos & mutes for the XLR outputs because the checkbox is checked. It is not checked for the AES outputs, so they will not be affected by the solo & mute Page 76 iVAM2-2...
  • Page 77 The Global Output Routing feature allows channels to be routed or combined and routed to various destinations. For example, channels 1 to 8 can be routed to AES outputs, while channels 9 to 16 can be routed to Analog XLR outputs: Page 77 iVAM2-2...
  • Page 78 What are AoIP-Pair 9 and AoIP Pair 10? AoIP-Pair 9: Selected inputs will be mixed to AoIP transmit channels 17 and 18. Note that configuration for channels 1 - 16 is not supported. Use a Dante Controller Page 78 iVAM2-2...
  • Page 79 In the Output Routing setting, for the Analog XLR outputs, keep the Volume Control checkbox unchecked and the Solo/Mute checkbox checked. This ensures that the Volume Control is not applied to the outputs, while the Solos/Mutes are. Page 79 iVAM2-2...
  • Page 80 To start Preset Replication, click on the Preset Replication tab on the master unit. This will start the unit discovery process and will list all the iVAM2-2 units that you currently have on your network. The discovery process will continue for a period of 2 minutes.
  • Page 81 The iVAM2-2 will create Preset Tags for the each set of Presets. Refer to Figure 4- 23. You may also change these Preset Tags, using the Preset Change Field. They allow you to quickly resolve questions about which Presets on various units are the most up to date.
  • Page 82 Figure 4–23: Database Export iVAM1-3 Export Configuration Use the following steps to save the Preset configuration in the iVAM2-2 to the computer hard drive: 1. If you need to, revise the Preset Tag name, observing the advice in the advice in the previous section.
  • Page 83 Figure 4–24: Database Export Import Configuration Use the following steps to copy the Preset configuration into the iVAM2-2: 1. Click the Choose File button as shown in Figure 4-24 and select the Preset Tag you would like to import. 2. If you want to allow existing Presets to be overwritten with imported Presets of the same name, check the Overwrite an existing Preset box.
  • Page 84 These tabs are explained in the following three sections. System Information This tab displays a variety of information about the iVAM2-2. It is shown in Figure 4-26. This information could be useful to view if you are contacting Wohler Technical Service.
  • Page 85 This tab displays a variety of information about the module inserted into the SFP slot on the rear panel of the iVAM2-2. It is shown in Figure 4-27. This information could be useful to view if you need to ascertain what module, if any, is installed, or if you are contacting Wohler Technical Service.
  • Page 86 This tab displays the license number for each of the modules or features in the iVAM2-2. It is shown in Figure 4-28. You will use this tab to enter any new license numbers that you purchase. Contact Wohler Sales to obtain new license numbers.
  • Page 87 If you have any doubt as to whether you should perform a Factory Reset, do not click the Initiate Factory Reset button. Contact Wohler Technical Service for advice. Factory Reset will also reset your IP address to the default one. After a Note: Factory Reset, the IP Settings will need to be updated.
  • Page 88 The Reboot System function should be used with a bit of caution. It puts the iVAM2-2 out of service for several minutes while it is rebooting, and this may unexpectedly interfere with the use of the product by the remote operator.
  • Page 89 Introduction This chapter describes how to download a software update file to your computer, transfer it to a USB flash drive and install the updated into an iVAM2-2. Download the Software The iVAM2-2 software update can be found at http://www.wohler.com, under Product Downloads on the Products >...
  • Page 90 USB flash drive. 2. Insert the USB flash drive with iVAM2-2 update package(s) into the front panel USB jack. 3. From the Menu screen, touch System Options. The screen shown in Figure A-1 will appear.
  • Page 91 The upgrade will take 5 minutes or more, after which the iVAM2-2 will restart. After the system has completed its restart cycle and is once again operational, you may then remove the flash drive.
  • Page 92 USB flash drive. 2. Connect to the iVAM2-2 with the Wohler Web GUI. Navigate to the System | System Update menu, as shown in Figure A-5. If the iVAM2-2 has recently...
  • Page 93 Figure A-8 – Software Upgrade in Progress 7. At this point, wait for the update to complete. It may take several minutes, Page 93 iVAM2-2...
  • Page 94 Use the following steps to update the iVAM2-2 software: 1. The Software Update files you downloaded earlier must be in the same computer that is running the Web GUI. Connect to the iVAM2-2 with the Wohler Web GUI. Navigate to the System | System Update menu. Click within the large blue dotted line rectangle at the right of the screen.
  • Page 95 3. At this point, wait for the update to complete. It may take several minutes, until the it is critical not to disturb the iVAM2-2 or the Web GUI update process is complete. When it is complete, the iVAM2-2 will restart.
  • Page 96 Use the following steps to update one or more iVAM2-2 units remotely by transferring the software from a previously updated iVAM2-2: 1. If any of the iVAM2-2 units that you intend to update remotely may be in use, contact the people using them and let them know what you will be doing.
  • Page 97 Figure A-13 – List of Found iVAM2-2 Units 4. Then click Update Selected Devices. The window shown in Figure A-14 will appear. Figure A-14 – Apply System Package 5. Click Apply System Update. The screen shown in Figure A-15 will appear.
  • Page 98 6. At this point, wait for each update to complete. It may take several minutes, it is critical not to disturb any of the iVAM2-2 units or the Web until the update process is complete. When it is complete, each iVAM2-2 will restart.
  • Page 99 On iVAM2-2, the AoIP source can be selected through the Source Select option. The iVAM2-2 is set up at the Wohler factory to be used as a slave rather than a master within the Dante network. Other devices or software, such as a Dante Controller, are expected to be responsible for most device configurations and all audio routing.
  • Page 100 Card ID Device View Up to 16 of the 64 AoIP receive channels can be monitored at once in the iVAM2-2. The iVAM2-2 transmits up to 20 channels. 1 to 16 are the monitored channel in prefade mode. The remaining four are reserved for future use. Currently they are mapped to channels being monitored on meter 1 to 4 in post-fade mode.
  • Page 101 Dante Device Setup The iVAM2-2’s default Dante Device Name is “Wohler- …” followed by the last 6 digits of the Dante port MAC address, as shown in Figure B-2. This name can be changed by the Dante Controller to appear that way on the network, but that will not change the iVAM2-2’s unit name appearing on GUI pages and iVAM2-2 Remote...
  • Page 102 Dante Clock Selection While the Brooklyn’s internal clock is highly accurate, the iVAM2-2 does not have provisions for external sync clocks, such as those that are GPS or media reference (video genlock or audio word clock) based. So it is generally not the best candidate to be the PTP Master Clock (commonly called the “grandfather clock”) for the...
  • Page 103 AES67 The iVAM2-2 Brooklyn II can be configured for AES67 operation. AES67 operation with Dante is limited to eight or less receive and transmit channels at 48 kHz sample rates. 24 bit linear (L24) encoding and 1 msec packet time are fixed default transmit parameters.
  • Page 104 Figure B–6: Device View - Network Config Page 104 iVAM2-2...
  • Page 105 Device Lock command at this time. Dante Firmware Upgrades Wohler iVAM2-2 monitors ship with current Brooklyn II firmware as of the option installation date. The version information is found in the Dante Controller Device View-Status page. iAM software/firmware is tested with the latest Dante code release.
  • Page 106 8171152, European Patent 2255541, Chinese Patent ZL200780026677.0 and other patents pending or issued, see or such other www.audinate.com/patents legend as Audinate may stipulate from time to time to the Manufactured Product and any packaging and marketing materials therefor. Page 106 iVAM2-2...
  • Page 107 Merging ZMAN Card is virtually plug and play. The iAM rear panel AoIP jack supports 1Gb/s and 100Mb/s Ethernet devices in Ravenna Audio over IP network configurations. iVAM2-2 channel source selections are made by choosing Input Type ‘AoIP’ in the Configuration-Configure Presets page regardless of which AoIP option is installed.
  • Page 108 The Merging Ravenna card runs specific firmware from Merging and augmented by Wohler for use within the iVAM2-2. The card will not function correctly if the user downloads and installs firmware from any source besides Wohler. The Wohler augmentation includes the ability to support 64 channels.
  • Page 109 6. Network Interface: Note the address of the card and its type (Zeroconf, DHCP, Static). (If necessary, the address can be changed to another type such as a Static address which must include a Network Mask and Gateway.) Page 109 iVAM2-2...
  • Page 110 Announce: This is PTP Profile related - PTP announcement interval (1 - 2 - 4 - 8 -16 seconds) i. Sync: This is PTP Profile related (0.0625 - 0.125 - 0.25 - 0.5 seconds) 3. Status: Page 110 iVAM2-2...
  • Page 111 7. TTL: Time to Live (also called Hop Limit) - This value should not be modified. 8. Payload type: RTP Payload type - This value should not be modified. Page 111 iVAM2-2...
  • Page 112 3. Label: This is the Sink name. 4. Source: This is a drop down menu to select a source (both sap and bonjour advertised sources are automatically listed). 5. Manual: This allows manual entry of an SDP. Page 112 iVAM2-2...
  • Page 113 (usually the same as the source name) 4. Clock Domain: This is the PTP clock type and domain 5. Payload: Selections are Payload / Codec / Sampling Rate / Number of Channels 6. SDP: This displays detailed SDP information on the current stream. Page 113 iVAM2-2...
  • Page 114 Getting Started | I/O Router This page allows remapping of incoming channels to different internal channel assignments. For example, Stream channel 1 can be remapped to Merging card Channel 0, and so on. Figure D-6: Getting Started | I/O Router Page 114 iVAM2-2...
  • Page 115 IAM interface for display on meters and speakers, etc. The iVAM2-2 must be set to receive AOIP from the Source Select Front Panel menu or a browser iVAM2-2 GUI.
  • Page 116 For example, for monitoring 2 SDI sources (four 8 channel Flows), assign two flows to 1-8 and 9-16 and the next SDI signal to 17-24 and 25- 32. Touch the iVAM2-2 AOIP selection menu to select the proper range to monitor, up to 57-64.
  • Page 117 Figure D-8: Session Sources Tab ZMAN Updating The Zman card is pre-initialized with the correct Wohler firmware load. In case of future upgrades, use the following steps: 1. In Aneman, right click the ZMAN entry on the bottom Devices section, and select Maintenance Mode.
  • Page 118 Introduction This appendix discusses ways to use the Application Program Interface (API) to allow third party equipment to remotely access options and settings of the iVAM2-2. It includes specific code examples for commonly used requests. The API uses JavaScript Object Notation (JSON) as its communication language.
  • Page 119 "NumberOfMeters": 2, "FirstMeter": 5, "Name": "Stereo 2.0 #3", "Type": "Stereo", "MuteOnPresetRecall": true "NumberOfMeters": 2, "FirstMeter": 7, "Name": "Stereo 2.0 #4", "Type": "Stereo", "MuteOnPresetRecall": true "NumberOfMeters": 2, "FirstMeter": 9, "Name": "Stereo 2.0 #5", "Type": "Stereo", "MuteOnPresetRecall": true Page 119 iVAM2-2...
  • Page 120 "Source": { "Slot": 1, "Cage": 1, "Channel": 8, "ConnectorType": "BNC", "InputNo": 1, "InputIndex": 0, "Type": "SDI" "VolumeDb": 0, "DelayMs": 0, "Speaker": "Right" "2": { "Source": { "Slot": 1, "Cage": 1, "Channel": 2, "ConnectorType": "BNC", "InputNo": 1, "InputIndex": 0, Page 120 iVAM2-2...
  • Page 121 "Cage": 1, "Channel": 16, "ConnectorType": "BNC", "InputNo": 1, "InputIndex": 0, "Type": "SDI" "VolumeDb": 0, "DelayMs": 0, "Speaker": "Right" "11": { "Source": { "Slot": 1, "Cage": 1, "Channel": 11, "ConnectorType": "BNC", "InputNo": 1, "InputIndex": 0, "Type": "SDI" "VolumeDb": 0, Page 121 iVAM2-2...
  • Page 122 "Cage": 1, "Channel": 9, "ConnectorType": "BNC", "InputNo": 1, "InputIndex": 0, "Type": "SDI" "VolumeDb": 0, "DelayMs": 0, "Speaker": "Left" "14": { "Source": { "Slot": 1, "Cage": 1, "Channel": 14, "ConnectorType": "BNC", "InputNo": 1, "InputIndex": 0, "Type": "SDI" "VolumeDb": 0, Page 122 iVAM2-2...
  • Page 123 "ConnectorType": "BNC", "InputNo": 1, "InputIndex": 0, "Type": "SDI" "VolumeDb": 0, "DelayMs": 0, "Speaker": "Right" "12": { "Source": { "Slot": 1, "Cage": 1, "Channel": 12, "ConnectorType": "BNC", "InputNo": 1, "InputIndex": 0, "Type": "SDI" "VolumeDb": 0, "DelayMs": 0, "Speaker": "Right" Page 123 iVAM2-2...
  • Page 124 "Favorite": 0, "PresetId": 1, "GroupName": "G1" 3. GET list of groups/presets Method: GET /api/cf/groups Example Response: "error": null, "params": null, "result": [ "Name": "G1", "Presets": [ "Favorite": 1, "Name": "AES", "Id": "Favorite": 0, "Name": "SDI", "Id": "Id": Page 124 iVAM2-2...
  • Page 125 Example Response: "error": null, "params": { "PresetId": "result": { "PresetId": 1, "GroupId": 1, "PresetName": "SDI", "GroupName": "G1" 5. POST to delete the group Method: POST api/op/group/<int:groupID>/delete Example Response: "error": null, "params": { "GroupId": "result": { "GroupId": Page 125 iVAM2-2...
  • Page 126 Method: POST api/op/preset/<int:presetID>/delete Example Response: "error": null, "params": { "PresetId": "result": { "PresetId": 7. POST to rename group Method: POST /api/op/group/<int:groupID>/newGrpNameSdi/rename Example Response: "error": null, "params": { "GroupId": 1, "GroupName": "newGrpNameSdi" "result": { "GroupId": 1, "GroupName": "newGrpNameSdi" Page 126 iVAM2-2...
  • Page 127 9. POST to set preset as Favorite Method: POST /api/op/preset/<int:presetID>/<favoriteVal>/favorite Example Response: "error": null, "params": { "PresetId": 4, "Favorite": "result": { "PresetId": 4, "Favorite": 10. Source Select Method: POST /api/op/sourceselect Body content for SDI/SMPTE-2022-6/ SMPTE-2110 "SourceType": “<String: SDI Input Source>” Page 127 iVAM2-2...
  • Page 128 3. Body content for Analog "SourceType": "Analog.XLR" "SourceType": "Analog.DB25" Body content for Aes "SourceType": "Aes" 5. Body content for Aoip "SourceType": "Aoip", "ChannelGroup": <Int: 1-16> Note: ChannelGroup 1 => Channels 1-16 and ChannelGroup 2 => Channels 17-32 and so on Page 128 iVAM2-2...
  • Page 129 6. Body content for TOSLINK "SourceType": "Toslink" Example Response: "unit_name": "iVam", "model": "iVam", "api_version": 1, "message": "Input Source Toslink has been applied successfully", "serial_number": "162978", "status": Page 129 iVAM2-2...
  • Page 130 SFP IP Address Configuration You may change the IP address of a 2110 or 2022-6 SFP. This can be done using the System Setup | Sfp Information | Network tab of the Wohler Web Server, as shown in Figure F-1.
  • Page 131 You may change the Personality of an SFP using the System Setup | SFP Information | Personality tab of the Wohler Web Server. If the Embrionix SFP is a combo SFP module, you may also switch from 2110 to 2022 using this feature. All the personalities loaded on a SFP are displayed on the tab, as shown in Figure F-2.
  • Page 132 SFP 2110 Configuration If a 2110 firmware is loaded, the Wohler Web-GUI can be used to configure Audio/Video Flows of the SFP. The Out of Band On/Off Switch at the top of the SFP 2110 Global Setup page controls whether the out of band settings will be applied to the SFP or not.
  • Page 133 Appendix. The global configuration will be used for Source Select. Refer Figures F-3 and F-4 for Video parameters. Refer to Figures F-5 and F-6 for Audio parameters. Refer to Figure F-7 for PTP parameters. Figure F-5: Audio Parameters Page 133 iVAM2-2...
  • Page 134 Figure F-6: Audio Parameters Figure F-7: PTP Parameters Page 134 iVAM2-2...
  • Page 135 Figure F-8: SFP 2110 Preset SFP Configuration Enable SFP Config After clicking the SFP Config button, the SFP 2110 Setup Screen will appear, as shown in Figure F-9. Make the settings you need for this Preset and then click Close. Page 135 iVAM2-2...
  • Page 136 10 seconds to fetch the latest information from the SFP. The diagnostic information is always available even when the “Out of band” control is turned off. Refer to Figures F-10, F-11, and F-12 for descriptions of the information available. Figure F-10: Diagnostic Information Page 136 iVAM2-2...
  • Page 137 Figure F-11: Diagnostic Information Figure F-12: Diagnostic Information Page 137 iVAM2-2...
