Page 1

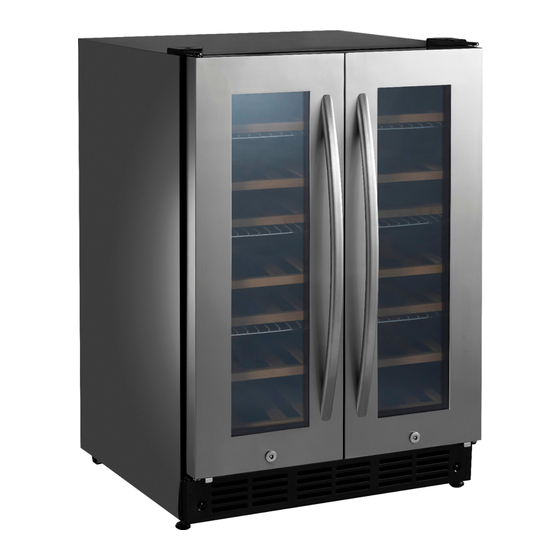

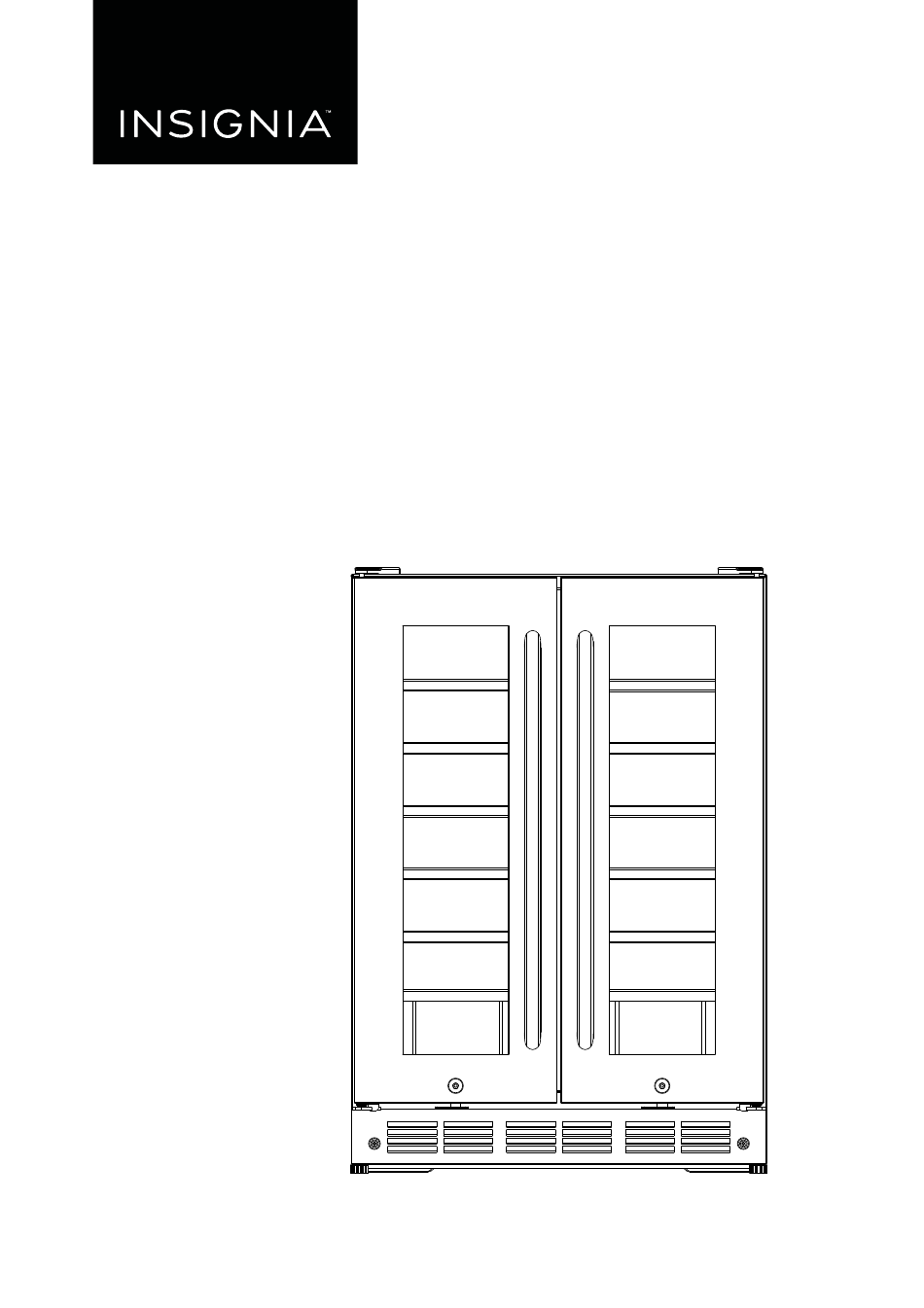

USER GUIDE Dual-Zone Wine and Beverage Center NS-BC2ZSS8 Before using your new product, please read these instructions to prevent any damage.
Page 2
ONE-YEAR LIMITED WARRANTY ........17 Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-BC2ZSS8 represents the state of the art in wine and beverage center design and is designed for reliable and trouble-free performance. www.insigniaproducts.com...
Page 3
Dual-Zone Wine and Beverage Center IMPORTANT SAFETY INSTRUCTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your cooler. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your cooler.
Page 4
NS-BC2ZSS8 WARNING Electric Shock Hazard Failure to follow these instructions can result in electric shock, fire, or death. 1 WARNING–Keep ventilation openings in the appliance enclosure or in the built-in structure clear of obstruction. 2 WARNING–Do not touch the interior of the chiller compartment with wet hands.
Page 5
Dual-Zone Wine and Beverage Center 12 This cooler is intended to be used in household and similar environments. 13 Do not store or use gasoline or any flammable liquids inside or in the vicinity of this cooler. 14 Do not use extension cords or ungrounded (two prong) adapters with this refrigerator.
Page 6
NS-BC2ZSS8 Components Cabinet Interior Circulation light Control panel and display Drip pan Tempered glass door Thermostat Wood shelves (10) Flat chrome shelves for cans (6) Wood shelves (2) Notes • For your cooler to operate normally, avoid placing it in areas with high magnetic fields or high humidity.
Page 7
Dual-Zone Wine and Beverage Center Control and display panels (both) Up and down buttons Power button Light button Display BUTTON FUNCTION Press to turn the power on or off. Press to turn the interior light on or off. Press to raise the temperature in the selected zone. Press to lower the temperature in the selected zone.
Page 8
NS-BC2ZSS8 Ambient temperature below 68°F (20°C) or above 90°F (32°C) will hinder the performance of this cooler. This cooler is not designed for use in a garage or any other outside installation. • Avoid locating the cooler in moist areas.
Page 9
Dual-Zone Wine and Beverage Center Leveling your cooler • It is very important for the cooler to be level in order to function properly. If the cooler is not leveled during installation, the door may not close or seal properly, causing cooling, frost, or moisture problems. •...
Page 10
NS-BC2ZSS8 • Do not use an extension cord with this cooler. If the power cord is too short, have a qualified electrician install an outlet near the cooler. Use of an extension cord can negatively affect the cooler’s performance. Using your wine and beverage center...
Page 11
Dual-Zone Wine and Beverage Center Understanding the dual temperature zones There are two temperature zones in this appliance. They are divided by a partition. • Each zone has its own independent temperature control and display. • Each zone can be used to store wine bottles or beverage cans. •...
Page 12
NS-BC2ZSS8 To replace a shelf • Place the sides of the shelf back onto the supporting guides of the cabinet and push back until the shelf tabs slide into place. Caution Make sure that the tabs are firmly engaged in the supporting guides before storing any bottles.
Page 13
Dual-Zone Wine and Beverage Center • The cork of an opened bottle should always be moistened when returning it to the bottle. • Red wine should be allowed to breath (oxygenate) before drinking. We suggest that you put pink/rose type wines onto the table two to five hours before drinking and red wine four to five hours before drinking.
Page 14
NS-BC2ZSS8 Storing your cooler 1 Turn off the cooler and unplug it from the wall outlet. 2 Remove all wine/beverages. 3 Clean the cooler. 4 Leave the door open slightly to avoid possible formation of condensation, mold, or odor. Caution Use extreme caution with children.
Page 15
Dual-Zone Wine and Beverage Center Troubleshooting Caution Do not try to repair your cooler yourself. Doing so invalidates the warranty. Error codes If a fault is detected, the display shows one of the following codes: Fault Code Description Temperature Temperature DC electric fan DC electric fan sensor error in...
Page 16
NS-BC2ZSS8 PROBLEM SOLUTION The display shows an “H” and a • The temperature in the cooler is too high. buzzer sounds once a second • Make sure that the door is closed properly. for 30 seconds. • Allow time for the new beverage to cool, then check again.
Page 17
Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts.
Page 18
Damage due to incorrect operation or maintenance • Connection to an incorrect voltage or power supply • Attempted repair by any person not authorized by Insignia to service the Product • Products sold “as is” or “with all faults” •...
