Summary of Contents for Insignia NS-WC29SS3

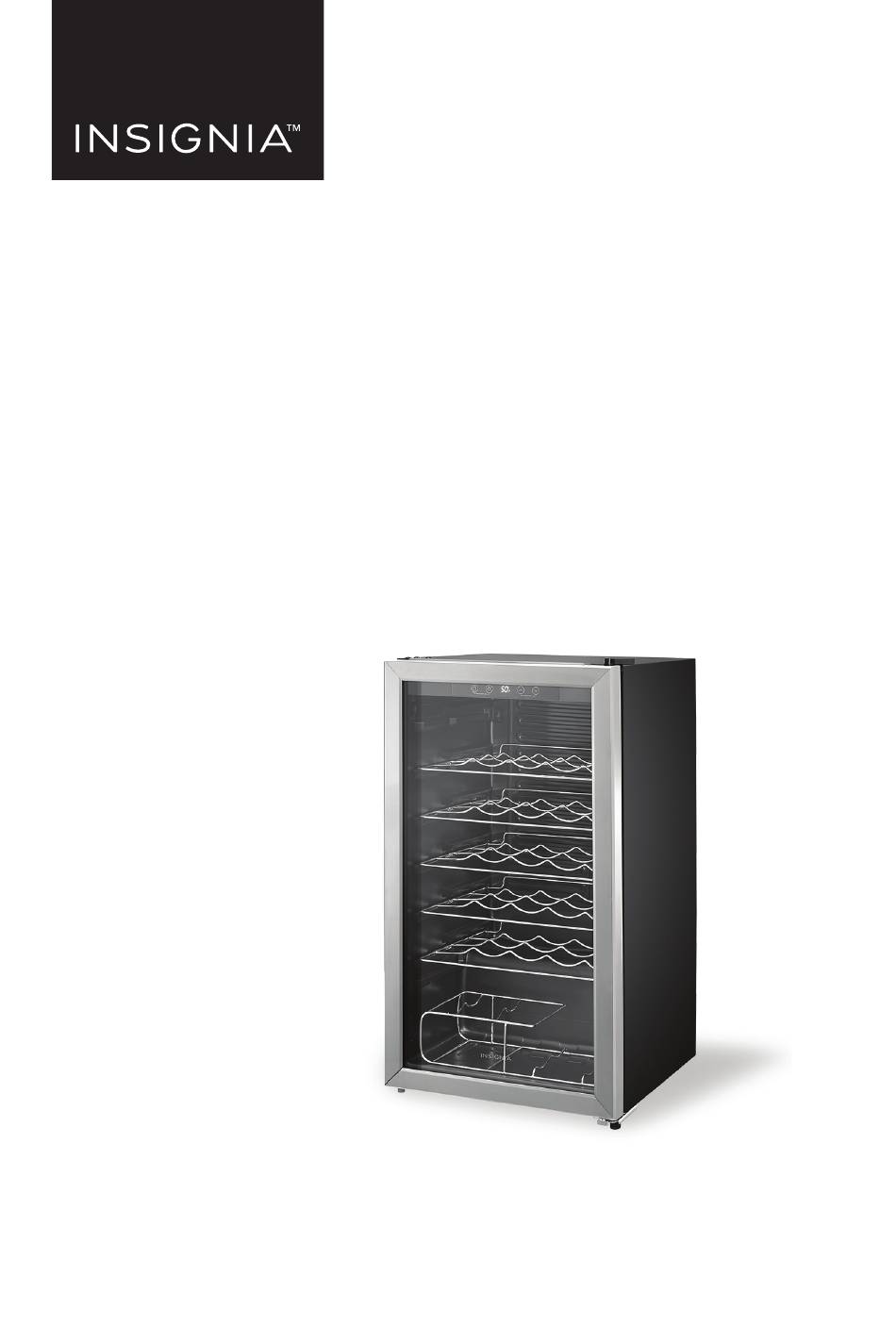

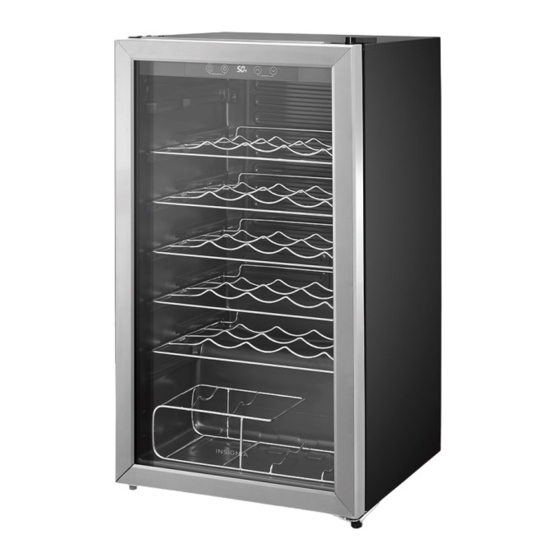

- Page 1 USER GUIDE 29-Bottle Wine Cooler NS-WC29SS3/NS-WC29SS3-C Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
Contents IMPORTANT SAFETY INSTRUCTIONS ........3 Features . -
Page 3: Important Safety Instructions
29-Bottle Wine Cooler IMPORTANT SAFETY INSTRUCTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your cooler. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your cooler. - Page 4 Unplug the power cord by holding the plug, never by pulling the cord. Do not turn the appliance on or off by plugging or unplugging the power cord. Turn off the appliance before unplugging it. Refer all servicing to qualified service personnel. Servicing is required when the appliance has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the appliance, the appliance has been exposed to rain or moisture, does not...
-
Page 5: Features
• White interior lighting helps you find your wine even in a dark room • Reversible door and adjustable legs offer flexible placement options • Timeless stainless steel finish matches any décor • Pairs with the Insignia 115-Can Beverage cooler (Model NS-BC115SS3, sold separately) to create a complete beverage solution Package contents •... -
Page 6: Control And Display Panel
Control and display panel Light Temperature +/- LED Display Power on/Standby BUTTON FUNCTION Press and hold for three seconds to turn on or turn off your cooler. Press to turn the interior light on or off. Press to increase the temperature by one degree. Press to decrease the temperature by one degree. -
Page 7: Finding A Suitable Location
29-Bottle Wine Cooler Finding a suitable location • Your cooler is designed to be free standing only, and it should not be recessed or built into a countertop or wall. • Place your cooler on a floor, counter top, or cabinet that is strong enough to support your cooler when it is fully loaded. -
Page 8: Leveling Your Cooler
Providing ventilation Your wine cooler needs at least 4 in. (10 cm) between it and the surrounding walls and ceiling. 4" (10 cm) 4" (10 cm) Leveling your cooler • Your cooler must be level in order to function correctly. If your cooler is not leveled during installation, the door may not close or seal correctly, causing cooling, frost, or moisture problems. -
Page 9: Reversing The Door
29-Bottle Wine Cooler Reversing the door You need a 10 mm socket wrench and a Phillips screwdriver. Have someone available to assist you in the process. Make sure that you keep all of the parts you remove to reuse them later. CAUTION: Do not lay your cooler completely flat as that could damage the coolant system. - Page 10 Use a Phillips screwdriver to remove the door stopper screws, then move the door stopper and axle sleeve to the other side of the door and attach with the screws you just removed. Door stopper Axle sleeve Door stopper screws Use a Phillips screwdriver to remove the hinge bolts, then remove the lower hinge and the leveling feet.
-
Page 11: Grounding Requirement
29-Bottle Wine Cooler Replace the glass door, then reinstall the upper hinge. Make sure that you align the door and check the tightness of the door gasket. Hinge cover Hinge bolts Rivets Upper hinge Axle sleeve Axle sleeve Adjust the leveling feet to level your cooler. Grounding requirement Your cooler must be grounded. -
Page 12: Using Your Cooler
Using your cooler Setting the temperature • Press the temperature up or down buttons to increase or decrease the temperature by one degree. The temperature range is 41° ~ 64° F (5° ~ 18° C). • Press and hold the temperature up and down buttons at the same time to switch between Fahrenheit and Celsius. -
Page 13: Arranging Your Wine
29-Bottle Wine Cooler Arranging your wine In order to maintain good air circulation in your cooler, do not let the bottles touch the back of your cooler. Different temperature zones are generated within your cooler because of air circulation. The upper area’s temperature is the highest while the lower area is the lowest. -
Page 14: Maintaining Your Cooler
Maintaining your cooler Your cooler is designed for year-round use with only minimal cleaning and maintenance. When you first receive it, wipe the cabinet with a mild detergent and warm water, then wipe dry with a dry cloth. Do this periodically to keep your cooler looking new. -
Page 15: Moving Your Cooler
29-Bottle Wine Cooler Moving your cooler Note: Make sure that your cooler stays in the upright position during transportation. Turn off your cooler and unplug it from the wall outlet. Remove all beverages. Securely tape down all loose items inside your cooler. Tape the door shut. -
Page 16: Troubleshooting
Troubleshooting Error codes If a fault is detected, the display shows one of the following codes: • E1: Temperature sensor fault • E6: Communication fault If any of these error codes appears on the display, contact your local dealer or service center. - Page 17 29-Bottle Wine Cooler PROBLEM POSSIBLE CAUSE SOLUTION My cooler makes Your cooler is not Level your cooler with the leveling feet. unusual noises or level. vibrates. The body of your Move your cooler out from the wall. beverage cooler is touching a wall.
- Page 18 PROBLEM POSSIBLE CAUSE SOLUTION My cooler turns The room Make sure that your cooler is in a room that on and off temperature is hotter is 50° ~ 85° F (10° ~ 29.4° C) or place your frequently. than normal. cooler in a cooler location.
-
Page 19: Specifications
29-Bottle Wine Cooler PROBLEM POSSIBLE CAUSE SOLUTION The outside of Several things could Heat dissipation from the condenser may my wine cooler is cause this, including make the outside feel hot. This is normal hot. the location, ambient and happens if: temperature, and •... -
Page 20: One-Year Limited Warranty
Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. - Page 21 29-Bottle Wine Cooler • Attempted repair by any person not authorized by Insignia to service the Product • Products sold “as is” or “with all faults” • Consumables, including but not limited to batteries (i.e. AA, AAA, C etc.) • Products where the factory applied serial number has been altered or removed •...
- Page 22 1-877-467-4289 (U.S. and Canada) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. V1 ENGLISH ©2022 Best Buy. All rights reserved. 22-0139...
