Page 1: User Guide

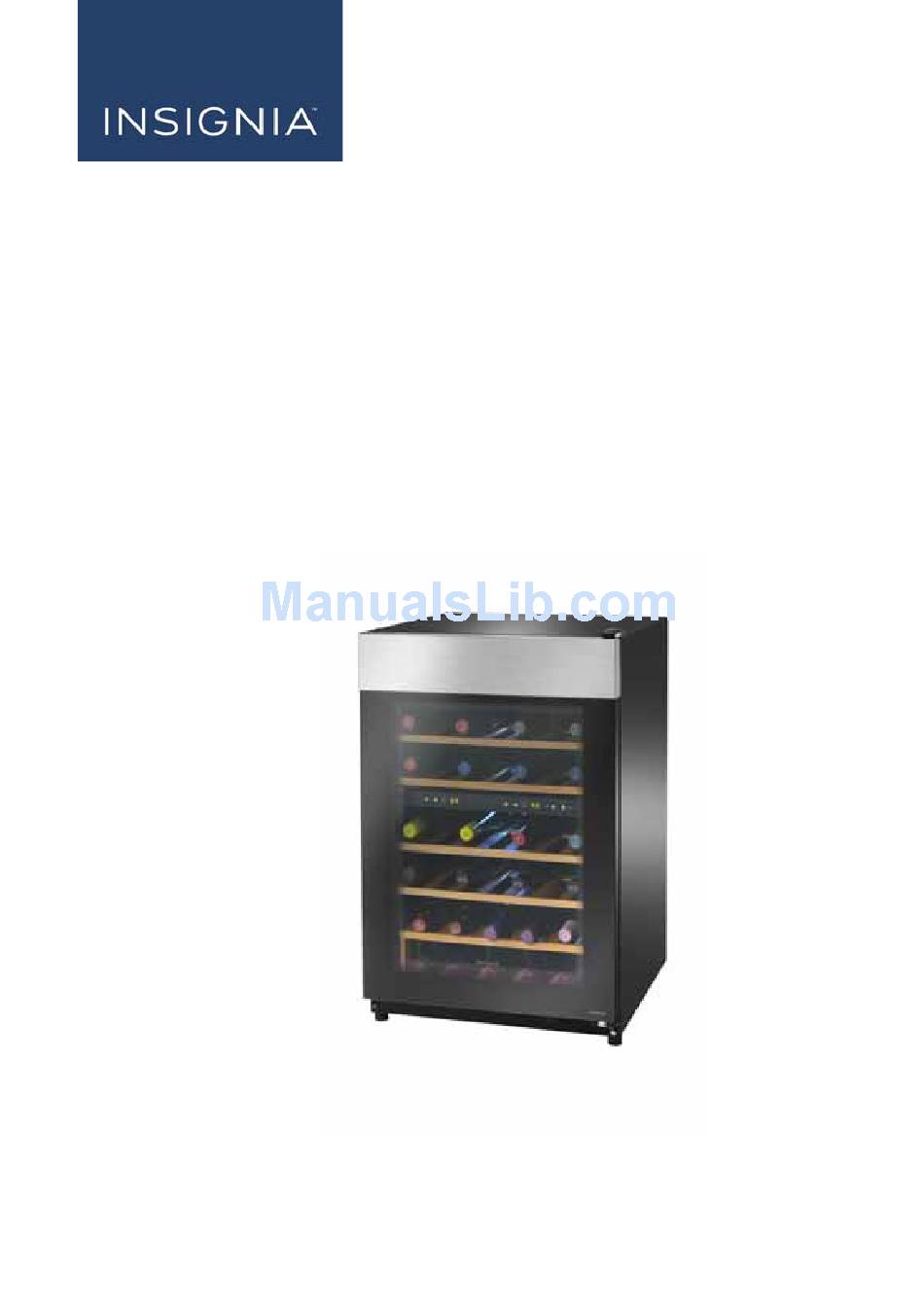

USER GUIDE 45 Bottle Wine/Beverage Cooler NS-WC45BK7 Before using your new product, please read these instructions to prevent any damage. - Page 2 Contents Introduction ............3 Important Safety Instructions .
-
Page 3: Introduction
NS-WC45BK7 45 Bottle Wine/Beverage Cooler Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-WC45BK7 represents the state of the art in wine/beverage cooler design and is designed for reliable and trouble-free performance. Important Safety Instructions CAUTION RISK OF ELECTRIC SHOCK... - Page 4 45 Bottle Wine/Beverage Cooler 9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.
-
Page 5: Grounding Requirement
NS-WC45BK7 4 WARNING–DANGER—Never allow children to play with, operate, or crawl inside the cooler. Risk of child entrapment. Before you throw away your old cooler: 1) Take off the door 2) Leave the shelves in place so that children may not easily climb inside 5 Unplug the cooler before carrying out user maintenance on it. -
Page 6: Features
45 Bottle Wine/Beverage Cooler Features • 45 bottle capacity • Mechanical button with LED display • Sliding wood shelves (5) • Wood wine basket • Glass door with UV protection • Interior LED light • Adjustable leveling feet (2) Package contents •... -
Page 7: Understanding The Cooler Temperature
NS-WC45BK7 Understanding the cooler temperature The upper zone temperature range is 41~54°F (5~12°C). The lower zone temperature range is 54~64°F (12~18°C). The temperature after a power failure will be the temperature previously set. If the temperature in the cooler is too low, it will display “L. ”... -
Page 8: Setting Up Your Wine/Beverage Cooler
45 Bottle Wine/Beverage Cooler Setting up your wine/beverage cooler Reversing the door The glass door can be changed to open from right to left. To change the direction that the door opens, follow these instructions. Note Save all of the parts you remove to reinstall the door on the other side. - Page 9 NS-WC45BK7 2 Remove top hinge, then lift the door up off of bottom hinge and place it on a padded surface to prevent scratching. 3 Remove the three button plugs from the upper left corner of the cabinet and transfer them to the holes on the opposite side. Be sure to press the button plugs firmly into the holes.
- Page 10 45 Bottle Wine/Beverage Cooler 5 Unscrew the pins from both hinges and transfer them to threaded holes on the opposite sides of the hinges, then reinstall the bottom hinge in bottom left corner of the cabinet using the same three screws you removed.
-
Page 11: Before Using Your Cooler
NS-WC45BK7 Before using your cooler • Remove the exterior and interior packing. • Let the cooler stand upright for approximately one half hour before connecting it to power. This reduces the possibility of a malfunction in the cooling system from improper handling during transportation. -
Page 12: Providing Proper Ventilation
45 Bottle Wine/Beverage Cooler Providing proper ventilation Place the cooler at least five inches from the wall to ensure proper airflow to the compressor. Do not place the cooler near any heat sources, such as a heater or stove, as this may put a strain on the compressor. Connecting to power •... -
Page 13: Memory Function
NS-WC45BK7 Memory function If you experience a power outage, when your cooler is turned on again it resumes the same temperature that was set when the power went off. Arranging your wine In order to maintain good air circulation in the cooler, do not let the bottles touch the back of the cooler. -
Page 14: Maintaining Your Wine/Beverage Cooler
45 Bottle Wine/Beverage Cooler Red wine should be allowed to breath (oxygenate) before drinking. We suggest that you put pink/rose type wines onto the table two to five hours before drinking and red wine four to five hours before drinking. That also allows them to reach the suitable serving temperature. -
Page 15: Moving Your Wine/Beverage Cooler
NS-WC45BK7 Moving your wine/beverage cooler 1 Turn off the cooler and unplug it from the wall outlet. 2 Remove all wine/beverages. 3 Securely tape down all loose items inside your cooler. 4 Tape the door shut. Make sure that the cooler stays in the upright position during transportation. - Page 16 45 Bottle Wine/Beverage Cooler PROBLEM SOLUTION The cooler does not operate. • Make sure that the cooler is plugged in and that the plug is pushed completely into the outlet. • Check the house fuse/circuit breaker box and replace the fuse or reset the circuit breaker. •...
-
Page 17: Specifications
NS-WC45BK7 Specifications Dimensions (WxDxH) 21.5 × 22.3 × 33.7 in. (54.5 × 56.5 × 85.5 cm) Weight 84 lbs (38 kg) Power requirements 115V~60Hz-90W Current 1.2A Upper zone operating 41°-54° F temperature Lower zone operating 54°-64° F temperature www.insigniaproducts.com... -
Page 18: One-Year Limited Warranty
Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Insignia and are not returned to you. - Page 19 Damage due to incorrect operation or maintenance • Connection to an incorrect voltage or power supply • Attempted repair by any person not authorized by Insignia to service the Product • Products sold “as is” or “with all faults” •...
- Page 20 For product inquiries, please contact us with the information below: 1-877-467-4289 www.insigniaproducts.com INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC V2 ENGLISH 7601 Penn Ave South, Richfield, MN 55423 U.S.A. 17-0794 ©2017 Best Buy.
