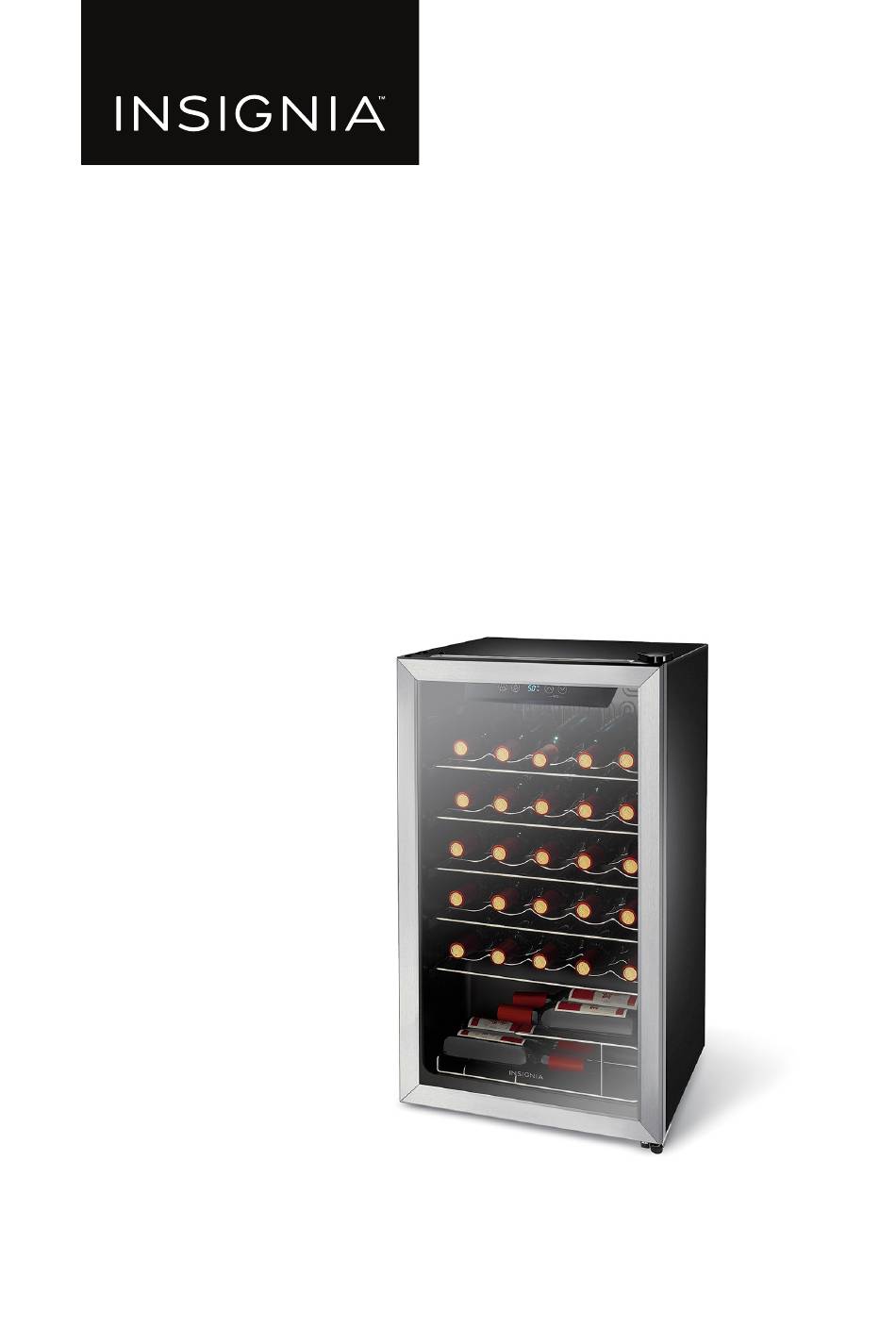

- Page 1 USER GUIDE 29-Bottle Wine Cooler NS-WC29SS9/NS-WC29SS9-C Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
Contents IMPORTANT SAFETY INSTRUCTIONS ........3 Features . -
Page 3: Important Safety Instructions
29-Bottle Wine Cooler IMPORTANT SAFETY INSTRUCTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your cooler. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your cooler. - Page 4 Do not turn the appliance on or off by plugging or unplugging the power cord. Turn off the appliance before unplugging it. Refer all servicing to qualified service personnel. Servicing is required when the appliance has been damaged in any way, such as when the power-supply cord or plug is damaged, when liquid has been spilled or objects have fallen into the appliance, or when the appliance has been exposed to rain or moisture, does not operate normally, or has been dropped.
-
Page 5: Features
29-Bottle Wine Cooler Follow local regulations regarding disposal of the cooler due to flammable refrigerant and gas. All refrigeration products contain refrigerants, which under the guidelines of federal law must be removed before disposal. It is the consumer's responsibility to comply with federal and local regulations when disposing of this product. -
Page 6: Control And Display Panel
Control and display panel Lock Light LED Display Temperature +/- BUTTON FUNCTION Press to lock or unlock the control panel. Press to turn the interior light on or off. Press to increase the temperature by one degree. Press to decrease the temperature by one degree. Press and hold both buttons at the same time to switch between Fahrenheit and Celsius. -
Page 7: Finding A Suitable Location
29-Bottle Wine Cooler Finding a suitable location • Your cooler is designed to be free standing only, and it should not be recessed or built into a countertop or wall. • Place your cooler on a floor, counter top, or cabinet that is strong enough to support your cooler when it is fully loaded. - Page 8 Make sure that your cooler is unplugged and empty. Adjust the leveling feet to their highest positions. Use a blade to remove the rivets. Use a blade to remove the hinge cover, then use a Phillips screwdriver to remove the hinge bolts. Remove the upper hinge.
- Page 9 29-Bottle Wine Cooler Use a Phillips screwdriver to remove the door stopper screws, then remove the door stopper. Door stopper Axle sleeve Door stopper screws Use a Phillips screwdriver to remove the hinge bolts, then remove the lower hinge and the leveling feet. Leveling foot Lower hinge and leveling foot...
-
Page 10: Grounding Requirement
Replace the glass door, then reinstall the upper hinge. Make sure that you align the door and check the tightness of the door gasket. Hinge cover Hinge bolts Rivets Upper hinge Axle sleeve Axle sleeve Adjust the leveling feet to level your cooler. Grounding requirement Your cooler must be grounded. -
Page 11: Using Your Cooler
29-Bottle Wine Cooler • Do not use an extension cord with your cooler. If the power cord is too short, have a qualified electrician install an outlet near your cooler. Use of an extension cord can negatively affect your cooler’s performance. Using your cooler Setting the temperature •... -
Page 12: Arranging Your Wine
Arranging your wine In order to maintain good air circulation in your cooler, do not let the bottles touch the back of your cooler. Different temperature zones are generated within your cooler because of air circulation. The upper area’s temperature is the highest while the lower area is the lowest. -
Page 13: Maintaining Your Cooler
29-Bottle Wine Cooler Maintaining your cooler Your cooler is designed for year-round use with only minimal cleaning and maintenance. When you first receive it, wipe the cabinet with a mild detergent and warm water, then wipe dry with a dry cloth. Do this periodically to keep your cooler looking new. -
Page 14: Moving Your Cooler
Moving your cooler Note: Make sure that your cooler stays in the upright position during transportation. Turn off your cooler and unplug it from the wall outlet. Remove all beverages. Securely tape down all loose items inside your cooler. Tape the door shut. Tips on saving energy •... -
Page 15: Specifications
29-Bottle Wine Cooler PROBLEM SOLUTION Moisture is building up in • Make sure that the door is closed correctly. the interior of my cooler. • Move your cooler to a dryer location. My cooler turns on and off • Make sure that your cooler is in a room that is frequently. -
Page 16: One-Year Limited Warranty
Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. - Page 17 29-Bottle Wine Cooler • Connection to an incorrect voltage or power supply • Attempted repair by any person not authorized by Insignia to service the Product • Products sold “as is” or “with all faults” • Consumables, including but not limited to batteries (i.e. AA, AAA, C, etc.) •...
- Page 18 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. V5 ENGLISH ©2020 Best Buy. All rights reserved.
