- Page 1 INSTRUCTION MANUAL 24" Single Wall Oven Empava Item #: EMPV- 24WOA01 EMPV- 24WOB14 Distributed by: Empava Appliances Inc. 15253 Don Julian Rd, City of Industry, CA 91745 USA www.empava.com Phone:+1(888)682 8882 Email:support@empava.com...
- Page 2 DEAR CUSTOMER The oven is exceptionally easy to use and extremely efficient. After reading the instruction manual, operating the oven will be easy. Before being packaged and leaving the manufacturer, the oven was thoroughly checked with regard to safety and functionality. Before using the appliance, please read the instruction manual carefully.
- Page 3 TABLE OF CONTENTS Safety instructions..................3 Description of the appliance.................7 Installation....................10 Operation.....................15 Cleaning and maintenance................17 Technical data....................22 2 ...
- Page 4 SAFETY INSTRUCTIONS 1) Proper Installation – Be sure your appliance is properly installed and grounded by a qualified technician. 2) Never Use Your Appliance for Warming or Heating the Room. 3) Do Not Leave Children Alone – Children should not be left alone or unattended in area where appliance is in use.
- Page 5 persons and animals and damage property. Important: The power supply to the appliance must be cut off before any adjustments or maintenance work is done on it. WARNING: When using this product, basic precautions should always be taken, including the following: Your built-in oven is a classified electrical appliance.
- Page 6 transporting or storing the unit, keep it in a dry location, free from dust, excessive vibration or other factors, which may damage the unit. ！Do not operate any oven with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner.
- Page 7 HOW TO SAVE ENERGY Using energy in a responsible way not only saves money but also helps the environment. So let's save energy! And this is how you can do it: ！ Do not uncover the pan too oft en (a watched pot never boils!) ！...

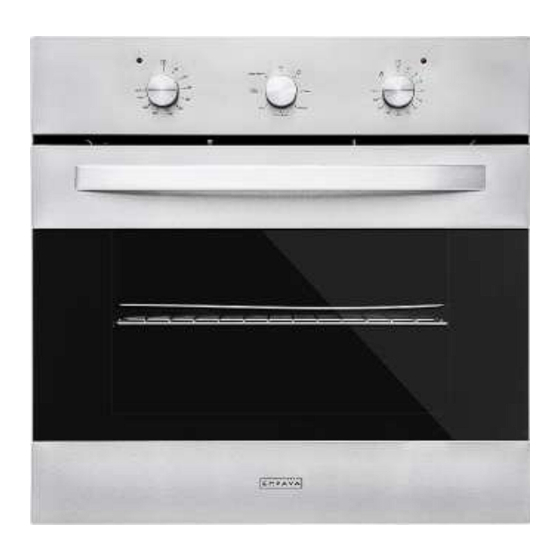

- Page 8 DESCRIPTION OF THE APPLIANCE EMPV- 24WOA01 Broil Pizza Bake Keep Warm Light Light Control Panel Broil Pizza Bake Keep Warm 1.Temperature control knob 2.Timer knob 3. Oven function selection knob 4. Handle 7 ...
- Page 9 EMPV- 24WOB14 Keep Warm Conv Bake Roast Broil Preheat Conv Broil Light Light Control Panel Keep Warm Conv Bake Roast Broil Preheat Conv Broil 1.Temperature control knob 2.Timer knob 3. Oven function selection knob 4. Handle 8 ...
- Page 10 Baking tray Grill grate 9 ...
- Page 11 INSTALLATION Important Save for the local electrical inspector’s use. – ！The kitchen area should be dry and aired and equipped with efficient ventilation. When installing the oven, easy access to all control elements should be ensured. ！This is a built-in oven, and its back wall and one side wall can be placed next to a high piece of furniture or a wall.
- Page 12 This oven may be installed to 23.6in minimum (600mm) wide cabinets Oven dimensions : • width = 23.4in (595mm); • depth = 22.8in (580mm); • height = 23.6in (600mm); • oven frame depth = 0.8in (20 mm); 11 ...
- Page 13 MAKE ELECTRICAL CONNECTION Disconnect power. Feed the flexible conduit from the through the opening in the cabinet. Remove junction box cover, if it is present. Install a UL listed or CSA approved conduit connector to the junction box. Route the flexible conduit from the oven to the junction box through a UL listed or CSA approved conduit connector.
- Page 14 Fitting guidelines The oven is manufactured to work with signal-phase alternating current (120V supply system). The connection diagram is also found on the cover of the connection holder. Remember that the connection wire should match the connection type and the power rating of the oven.
- Page 15 Before first use Remove packaging, clean the interior of the oven. Take out and wash the oven fittings with warm water and a little washing-up liquid. Switch on the ventilation in the room or open a window. Heat the oven (to a temperature of 465 ℉ , for approx,30 min.), remove any stains and wash carefully;...
- Page 16 Possible settings of the oven function knob (Oven lighting)By setting the knob to this position the lighting inside the oven is switched on, e.g. use when washing the oven chamber. Bake (Bottom and top heaters on) Setting the knob to the this position allows the oven to be heated conventionally.
- Page 17 The oven can be switched off by setting both of these knobs to the position “0/OFF”. CLEANING AND MAINTENANCE Caution: Before each cleaning and maintenance shall be cut off the power supply! By ensuring proper cleaning and maintenance of your oven you can have a significant influence on the continuing fault-free operation of your appliance.
- Page 18 Replacement of the oven light bulb In order to avoid the possibility of an electric shock ensure that the appliance is switched off before replacing the bulb. ! Set all control knobs to the position “O”/ “OFF” and disconnect the mains plug !unscrew and wash the lamp cover and then wipe it dry !unscrew the light bulb from the socket replace the bulb with a new one-a high temperature bulb (575 ℉...
- Page 19 Figure 2 ...
- Page 20 Figure 6 3. To move up the inside glass along with the direction of the arrow, as shown in figure 7 Figure 7 4.
- Page 21 3. To put the middle glass on the corresponding holders accurately, and tighten the screws, as shown in figure 11 Figure 9 Figure 10 ...
- Page 22 TROUBLESHOOTING TECHINCAL DATA Voltage rating: 240V~ 60Hz Power rating : EMPV- 24WOA01:max.2000W EMPV- 24WOB14:max.2800W Net weight : EMPV- 24WOA01: Approx.67lb EMPV- 24WOB14: Approx.71.5lb 22 Version:B...
