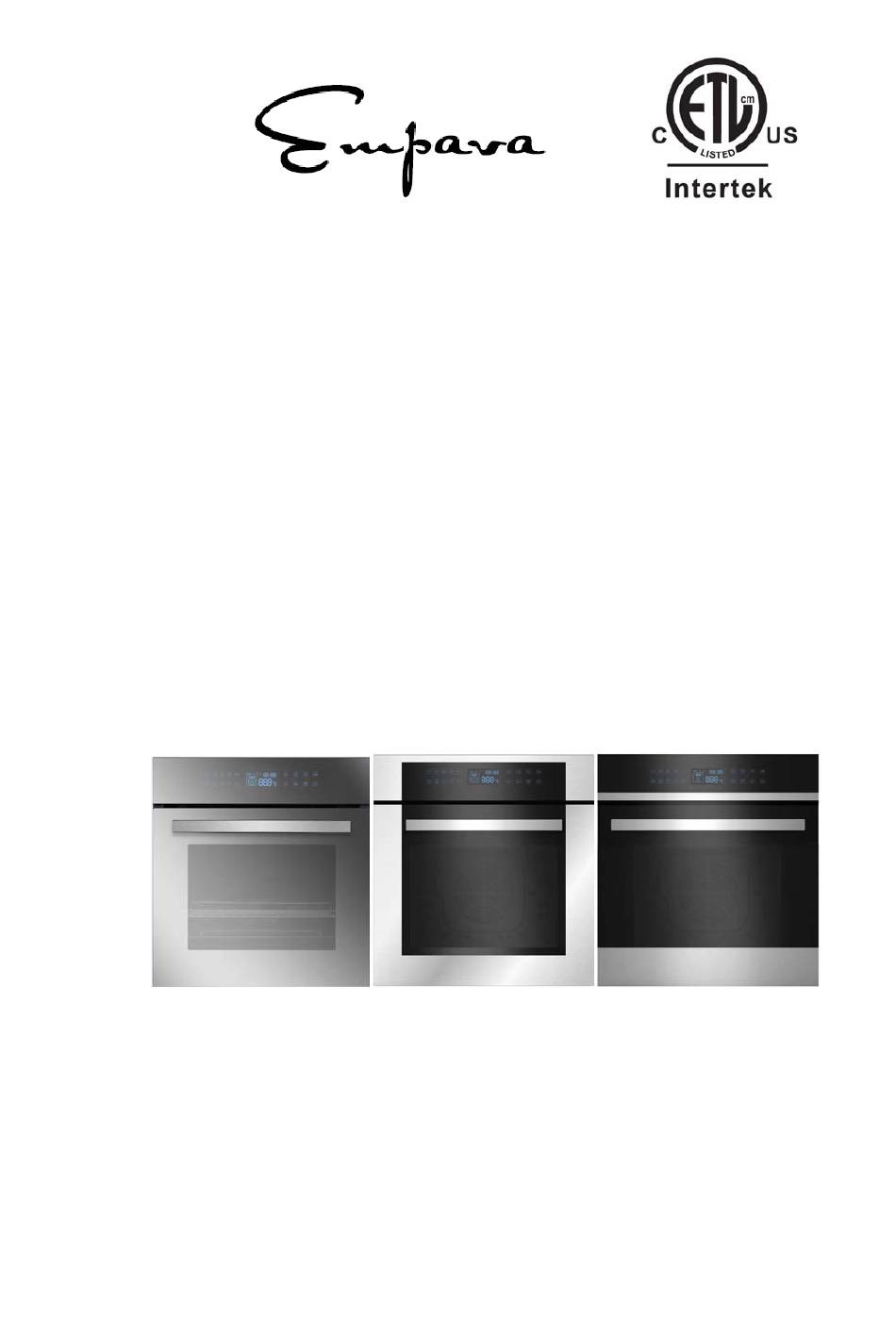

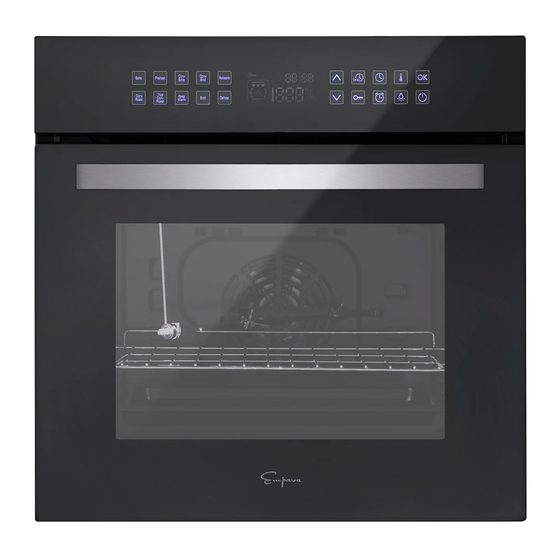

- Page 1 INSTRUCTION MANUAL 24" Single Wall Oven Empava Item #: EMPV-24WOC17 EMPV-24WOC02 EMPV-24WOB21 Distributed by: Empava Appliances Inc. 15253 Don Julian Rd, City of Industry, CA 91745 USA www.empava.com Phone:+1(888)682 8882 Email:support@empava.com...
- Page 2 DEAR CUSTOMER The oven is exceptionally easy to use and extremely efficient. After reading the instruction manual, operating the oven will be easy. Before being packaged and leaving the manufacturer, the oven was thoroughly checked with regard to safety and functionality. Before using the appliance, please read the instruction manual carefully.
- Page 3 TABLE OF CONTENTS Safety instructions..................3 Description of the appliance.................8 Installation....................9 Operation.....................15 Cleaning and maintenance................18 Technical data....................24 2 ...
- Page 4 SAFETY INSTRUCTIONS 1) Proper Installation – Be sure your appliance is properly installed and grounded by a qualified technician. 2) Never Use Your Appliance for Warming or Heating the Room. 3) Do Not Leave Children Alone – Children should not be left alone or unattended in area where appliance is in use.
- Page 5 persons and animals and damage property. Important: The power supply to the appliance must be cut off before any adjustments or maintenance work is done on it. WARNING: When using this product, basic precautions should always be taken, including the following: Your built-in oven is a classified electrical appliance.
- Page 6 transporting or storing the unit, keep it in a dry location, free from dust, excessive vibration or other factors, which may damage the unit. ！Do not operate any oven with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner.
- Page 7 WARNING: Accessible parts may become hot during use. Young children should be kept away. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. WARNING: Ensure that the appliance is switched off before replacing the lamp, to avoid the possibility of electric shock.
- Page 8 UNPACKING During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment. All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.
- Page 9 DESCRIPTION OF THE APPLIANCE Baking tray Grill grate Rotisserie (According to cooking function) 8 ...
- Page 10 INSTALLATION Important Save for the local electrical inspector’s use. – ！The kitchen area should be dry and aired and equipped with efficient ventilation. When installing the oven, easy access to all control elements should be ensured. ！This is a built-in oven, and its back wall and one side wall can be placed next to a high piece of furniture or a wall.
- Page 11 10 ...
- Page 12 MAKE ELECTRICAL CONNECTION Disconnect power. Feed the flexible conduit from the through the opening in the cabinet. Remove junction box cover, if it is present. Install a UL listed or CSA approved conduit connector to the junction box. Route the flexible conduit from the oven to the junction box through a UL listed or CSA approved conduit connector.
- Page 13 Warning! All electrical work should be carried out by a suitably qualified and authorized electrician. No alterations or willful changes in the electricity supply should be carried out. Fitting guidelines The oven is manufactured to work with signal-phase alternating current (120/240V supply system).
- Page 14 Wiring seat Bellows outlet Bellows Wire clamp Power cord + plug installation： The power cord + plug are installed in the factory. Rack installation diagram Step1: Insert the bracket into the mounting hole of inner tank. 13 ...
- Page 15 Step2: Insert the bracket into the slot. Telescopic runner installation diagram: Step 1： Put the four hocks into the side rack: Step 2： Put the two locks into the side rack: 14 ...
- Page 16 Before first use Remove packaging, clean the interior of the oven. Take out and wash the oven fittings with warm water and a little washing-up liquid. Switch on the ventilation in the room or open a window. Heat the oven (to a temperature of 465℉,, for approx,30 min.), remove any stains and wash carefully;...
- Page 17 setting status. Touch the key one time to enter standby status. (2)In standby status, touch the key one time to enter functions setting status. (3)In working status, touch the key one time to immediately stop the corresponding function and enter standby status. Turn off: In standby status, touch the key for more than 3 seconds to enter shutdown status. ...
- Page 18 (3)Press and hold the key for more than 4 seconds to switch between 12-hour system and 24-hour system . Default 12-hour system (4)Touch the key, clock setting finish. 3. Function selection:“Roast”as example (other functions are same way to set) (1) In standby condition, touch “...
- Page 19 work, other icon will not show. For example: Working time set as 1:30 hours, temperate set as410℉.. d. Under condition of item 3-(1) or item 3-(2) , touch key, it will work as system defaulted or current condition. Table 1(With rotisserie) Table 2(Without rotisserie) 4.
- Page 20 is unlocked. Maybe touch more than 4 seconds to turn off all functions. 6. Delay function (1)Touch once, the hour flicker, touch keys, can set time. Touch again, minute flicker and touch key, it can set up minute, touch key, delay setup finish.
- Page 21 In order to avoid the possibility of an electric shock ensure that the appliance is switched off before replacing the bulb. ! Turn off the oven and disconnect the mains plug !unscrew and wash the lamp cover and then wipe it dry !unscrew the light bulb from the socket replace the bulb with a new one-a high temperature bulb (575℉) with the following parameters: -voltage 240 V~...
- Page 22 Figure 2 ...
- Page 23 Figure 6 3. To move up the inside glass along with the direction of the arrow, as shown in figure 7 Figure 7 4.
- Page 24 3. To put the middle glass on the corresponding holders accurately, and tighten the screws, as shown in figure 11 Figure 9 Figure 10 ...
- Page 25 TECHINCAL DATA Voltage rating: 240V~ 60Hz Power rating: max. 3200W Oven dimensions H/W/D(in) :23.4/23.4/22.6 Net weight :Approx.68lb 24 ...
