PX248 PRO
The color and the appearance may differ depending on the product, and the specifications are subject to change without prior
notice to improve the performance.
The contents of this manual are subject to change without notice to improve quality.
Copyright © 2023 Pixio USA Inc. I Pixio is a registered trademark of Pixio USA Inc. I All Rights Reserved.
Use or reproduction of this manual in parts or entirety without the authorization of Pixio USA Inc is prohibited.
All other trademarks are owned by their respective owners.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PX248 PRO and is the answer not in the manual?

Questions and answers

Related Manuals for Pixio PX248 PRO

Summary of Contents for Pixio PX248 PRO

  • Page 1 The contents of this manual are subject to change without notice to improve quality. Copyright © 2023 Pixio USA Inc. I Pixio is a registered trademark of Pixio USA Inc. I All Rights Reserved. Use or reproduction of this manual in parts or entirety without the authorization of Pixio USA Inc is prohibited.

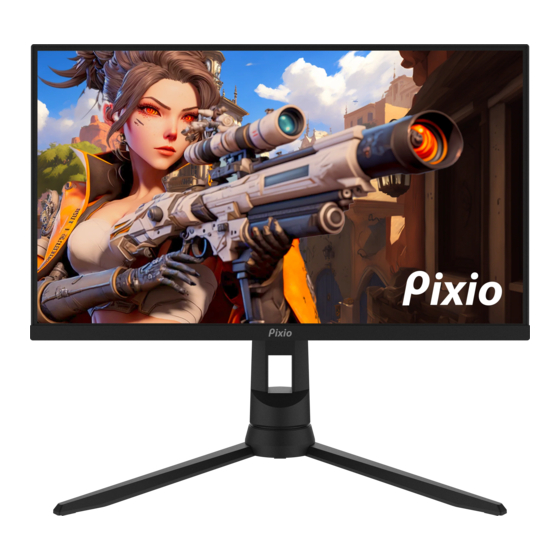

  • Page 2 24in IPS FHD 165Hz Gaming Monitor PX248 Pro C220701004-E01...
  • Page 4 RISK OF ELECTRIC SHOCK DO NOT OPEN THE MONITOR. OPENING MONITOR BACK COVER WILL VOID YOUR WARRANTY. This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.

  • Page 5: Before Using The Product

    Before Using the Product. Installation Space Ensure some space around the product for ventilation. An internal temperature rise may cause fire and damage the product. Make sure to allow some space. Do not install near heater or any other high temperature product or humidifier. Do not place the monitor near heat sources, such as radiators, and do not expose the monitor to direct sunlight for an extended period of time.
  • Page 6 Please do not try to take off the back panel to repair the monitor yourself. You may run the risk of shock and void the warranty as well. Contract Pixio directly for all RMA issues. Take note of elevation and temperature zone warnings on the adapters.

  • Page 7: Cleaning The Product

    Cleaning the Product. Take the following steps when cleaning. 1 Power off the product and computer. 2 Disconnect the power cord from the product. Hold the power cable by the plug and do not touch the cable with wet hands. Otherwise, an electric shock may result.
  • Page 8 Notice.

  • Page 9: Monitor Inputs

    Monitor Inputs. HDMI HDMI 2.0, 165Hz, Adaptive Sync, HDR HDMI HDMI 2.0, 165Hz, Adaptive Sync, HDR DisplayPort 1.2, 165Hz, Adaptive Sync, HDR Earphone *WARNING: Always use the appropriate power cord.
  • Page 10 Preperation. Product Includes: Monitor Stand stem Stand base M4x16mm DP Cable Power Adapter screws...

  • Page 11: Product Assembly

    Product Assembly: M4*16mm screws Open the package, and assemble the Take out the product with foam still Stand assembly completed. separated stand base to the stand attached, and gently place it on a stem with 5pcs of M4*16mm screws desktop or table. as shown in the illustration.

  • Page 12: Dimension And Weight

    Dimension & Weight. 59.8mm 541.9mm 100mm 265.65mm Net Weight: 4.4kg (11.9lb)
  • Page 13 5º 20º 30˚ 30˚ Swivel Tilt...
  • Page 14 90˚ Elevate Pivot...

  • Page 15: Control Panel

    Control Panel. Menu Short Cut Input selection Short Key / Exit Short Key Menu Input selection Short Key/ Exit Short Key Menu Down Left Preset selection Short Key Menu Right Game Assist selection Short Key Menu Jog Button Multi directional button that helps Left Right...
  • Page 16 Main OSD Navigation How to Reconfigure Move up the OSD Menu / Increase 1920x1080 165Hz Adaptive Sync Down Move down the OSD Menu / decrease Left Display Brightness Move left on the OSD Menu / Back Color Contrast BACK Right Gaming Setup Black Equalizer Move right on the OSD Menu / Enter...
  • Page 17 OSD Menu. Display •Brightness: Adjust the display brightness value from 0 to 100. 1920x1080 165Hz Adaptive Sync •Contrast: Adjust the display contrast value from 0 to 100. Display Brightness •Black Equalizer: Adjust the Black Equalizer value from 0 to 100. Color Contrast Gaming Setup...
  • Page 18 Color 1920x1080 165Hz Adaptive Sync •Color Temperature: Select Color Temperature from Normal, Cool, Warm, sRGB, and User. Display Color Temperature User •Gamma: Select Gamma from Off, 1.8, 2.0, 2.2, and 2.4. Color Gamma •Hue: Adjust the Hue value from 0 to 100. Gaming Setup Input Saturation...
  • Page 19 Gaming Setup •Adaptive Sync: Turn FreeSync On or Off. •Overdrive: Select Overdrive from Off, Low, Middle, and High. •Game Plus: Select Game Plus from Time, Crosshair(LoS), and FPS Counter. 1920x1080 165Hz Adaptive Sync Timer: Select Timer from Off, 15:00, 30:00, 45:00, 60:00 and 90:00 Display Adaptive Sync...
  • Page 20 Input 1920x1080 165Hz Adaptive Sync •Switch the signal input to Auto Select, DP (1.2), HDMI1 (2.0), Display Auto Select HDMI2 (2.0). Color DP (1.2) Gaming Setup HDMI1(2.0) HDMI2(2.0) User Input System Setup Full User Data V1.0 DP(1.2)
  • Page 21 System Setup •Language: Change the OSD menu display language •OSD Setup: Select OSD Setup from H Position, V Position, OSD Timeout, Transparency. 1920x1080 165Hz FreeSync Premium H Position: Adjust 0-100 V-Position: Adjust 0-100 Display Language English OSD Timeout: Adjust 15-60 Transparency: Adjust 0-100 Color OSD Setup...
  • Page 22 User Data 1920x1080 165Hz Adaptive Sync •User Data: Load/Save Brightness, Contrast, Black Equalizer, Display User1 Saturation, Preset, Color Temperature, Gamma, Overdrive, Volume, Mute, Low blue light settings Color User2 on the monitor. Gaming Setup User3 Input User System Setup Full User Data V1.0 DP(1.2)

  • Page 23: Adaptive-Sync

    Adaptive-Sync Adaptive Sync technology is solution that eliminates screen tearing without all the usual lag and latency. This feature will eliminate screen tearing and lag during game play. Improve your gaming experience. The displayed Adaptive Sync menu items on the monitor may vary, depending on the monitor model and compatibility with the AMD graphics card.
  • Page 24 If you have any questions or comments, please contact us below. USA: cs@pixiogaming.com JAPAN: support@pixiogaming.jp www.pixiogaming.jp/support www.pixiogaming.com For your warranty information, please visit...
