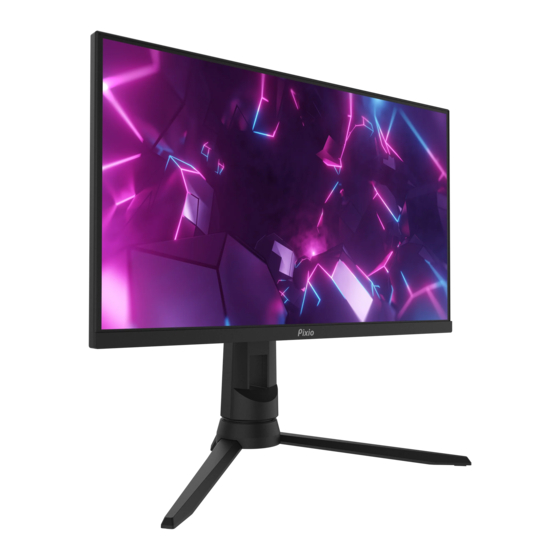

Pixio PX248 PRO V2 User Manual

Hide thumbs Also See for PX248 PRO V2:

Advertisement

Table of Contents

PX248 PRO V2
The color and the appearance may differ depending on the product, and the specifications are subject to change without prior
notice to improve the performance.
The contents of this manual are subject to change without notice to improve quality.
Copyright © 2025 Pixio USA Inc. I Pixio is a registered trademark of Pixio USA Inc. I All Rights Reserved.
Use or reproduction of this manual in parts or entirety without the authorization of Pixio USA Inc is prohibited.
All other trademarks are owned by their respective owners.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PX248 PRO V2 and is the answer not in the manual?

Questions and answers

Related Manuals for Pixio PX248 PRO V2

Summary of Contents for Pixio PX248 PRO V2

  • Page 1 The contents of this manual are subject to change without notice to improve quality. Copyright © 2025 Pixio USA Inc. I Pixio is a registered trademark of Pixio USA Inc. I All Rights Reserved. Use or reproduction of this manual in parts or entirety without the authorization of Pixio USA Inc is prohibited.
  • Page 2 23.8in IPS FHD 200Hz Gaming Monitor PX248 Pro V2 C240416060-E01...
  • Page 4 RISK OF ELECTRIC SHOCK DO NOT OPEN THE MONITOR. OPENING MONITOR BACK COVER WILL VOID YOUR WARRANTY. This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.

  • Page 5: Before Using The Product

    Before Using the Product. Installation Space Ensure some space around the product for ventilation. An internal temperature rise may cause fire and damage the product. Make sure to allow some space. Do not install near heater or any other high temperature product or humidifier. Do not place the monitor near heat sources, such as radiators, and do not expose the monitor to direct sunlight for an extended period of time.
  • Page 6 Please do not try to take off the back panel to repair the monitor yourself. You may run the risk of shock and void the warranty as well. Contract Pixio directly for all RMA issues. Take note of elevation and temperature zone warnings on the adapters.

  • Page 7: Cleaning The Product

    Cleaning the Product. Take the following steps when cleaning. 1 Power off the product and computer. 2 Disconnect the power cord from the product. Hold the power cable by the plug and do not touch the cable with wet hands. Otherwise, an electric shock may result.
  • Page 8 Notice.
  • Page 9 Preperation. Product Includes: Monitor Stand stem Stand base M4x16mm DP Cable Power Adapter screws...

  • Page 10: Product Assembly

    Product Assembly: M4*16mm screws Open the package, and assemble the Take out the product with foam still Stand assembly completed. separated stand base to the stand attached, and gently place it on a stem with 5pcs of M4*16mm screws desktop or table. as shown in the illustration.

  • Page 11: Dimension And Weight

    Dimension & Weight. 2.35” 21.33” 59.8mm 541.9mm 100mm 265.65mm Net Weight: 4.4kg (9.7lb) | Gross Weight: 6.20kg (13.7lb)
  • Page 12 90˚ Elevate Pivot...
  • Page 13 5º 20º 30˚ 30˚ Swivel Tilt...

  • Page 14: Monitor Inputs

    Monitor Inputs. HDMI HDMI 2.0, 200Hz, Adaptive Sync, HDR HDMI HDMI 2.0, 200Hz, Adaptive Sync, HDR DisplayPort 1.2, 200Hz, Adaptive Sync, HDR Earphone *WARNING: Always use the appropriate power cord.

  • Page 15: Control Panel

    Control Panel. Menu Short Cut Input selection Short Key / Exit Short Key Menu Down Brightness Adjustment Short Key Menu Left Preset selection Short Key Menu Game Assist [Timer / Crosshair (LoS) / FPS Counter] Short Key Menu Right Jog Button Multi directional button that helps navigate.
  • Page 16 Main OSD Navigation How to Reconfigure 1920 X 1080 200Hz Adaptive Sync Move up the OSD Menu / Increase Display Brightness Down Move down the OSD Menu / decrease Color Contrast Left Move left on the OSD Menu / Back Gaming Setup Black Equalizer BACK...
  • Page 17 1920 X 1080 200Hz Adaptive Sync Display Brightness Color Contrast Gaming Setup Black Equalizer Input Preset User System Setup Aspect Ratio Full User Data Sharpness V2.0 DP (1.2) V1.0...
  • Page 18 Brightness/Contrast 1920 X 1080 200Hz Adaptive Sync •Brightness: Adjust the display brightness value from 0 to 100. Display Brightness Color Contrast •Contrast: Adjust the display contrast value from 0 to 100. Gaming Setup Black Equalizer •DCR: Turn DCR On or Off. Input Preset User...
  • Page 19 OSD Menu. Display 1920 X 1080 200Hz Adaptive Sync • Brightness Adaptive Sync Select brightness value from 1 - 100. Display Brightness Color Contrast • Contrast Select contrast value from 1 - 100. Gaming Setup Black Equalizer • Black Equalizer Select Black Equalizer value from 1 - 100.
  • Page 20 Display 1920 X 1080 200Hz Adaptive Sync • Brightness Select brightness value from 1 - 100. Display Brightness Color Contrast • Contrast Select contrast value from 1 - 100. Gaming Setup Black Equalizer • Black Equalizer Select Black Equalizer value from 1 - 100. Input Preset User...
  • Page 21 1920 X 1080 200Hz Adaptive Sync Input Display Brightness Color Contrast •Switch the signal input to HDMI1, HDMI2, DP, or Automatic Input. Gaming Setup Black Equalizer Input Preset User System Setup Aspect Ratio Full User Data Sharpness V2.0 DP (1.2) V1.0...
  • Page 22 Setting Language: Change the OSD menu display language. • Shortcut Key 1: Select Shortcut Key 1 from Brightness/Contrast, • Input, Preset, Volume, and Crosshair. 1920 X 1080 200Hz Adaptive Sync Shortcut Key 2: Adaptive Sync Select Shortcut Key 2 from Brightness/Contrast, •...

  • Page 23: Adaptive-Sync

    Adaptive-Sync Adaptive Sync technology is solution that eliminates screen tearing without all the usual lag and latency. This feature will eliminate screen tearing and lag during game play. Improve your gaming experience. The displayed Adaptive Sync menu items on the monitor may vary, depending on the monitor model and compatibility with the AMD graphics card.
  • Page 24 If you have any questions or comments, please contact us below. USA: cs@pixiogaming.com JAPAN: support@pixiogaming.jp www.pixiogaming.jp/support www.pixiogaming.com For your warranty information, please visit...
