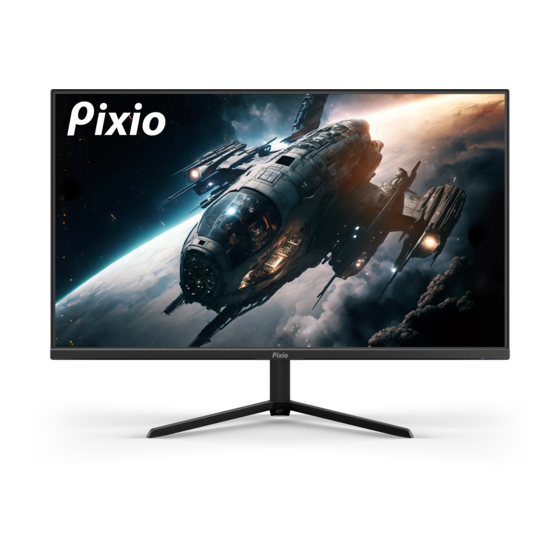

Pixio PX248 Prime Advanced V2 User Manual

23.8in ips fhd 144hz gaming monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

PX248 Prime Advanced V2
The color and the appearance may differ depending on the product, and the specifications are subject to change without prior
notice to improve the performance. The contents of this manual are subject to change without notice to improve quality.
Copyright © 2022 Pixio USA Inc. I Pixio is a registered trademark of Pixio USA Inc. I All Rights Reserved.
Use or reproduction of this manual in parts or entirety without the authorization of Pixio USA Inc is prohibited.
All other trademarks are owned by their respective owners.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PX248 Prime Advanced V2 and is the answer not in the manual?

Questions and answers

Related Manuals for Pixio PX248 Prime Advanced V2

Summary of Contents for Pixio PX248 Prime Advanced V2

  • Page 1 The contents of this manual are subject to change without notice to improve quality. Copyright © 2022 Pixio USA Inc. I Pixio is a registered trademark of Pixio USA Inc. I All Rights Reserved. Use or reproduction of this manual in parts or entirety without the authorization of Pixio USA Inc is prohibited.
  • Page 2 23.8in IPS FHD 144Hz Gaming Monitor PX248PA V2 210306007EMC-1...
  • Page 4 RISK OF ELECTRIC SHOCK DO NOT OPEN THE MONITOR. OPENING MONITOR BACK COVER WILL VOID YOUR WARRANTY. This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.

  • Page 5: Before Using The Product

    Before Using the Product. Installation Space Ensure some space around the product for ventilation. An internal temperature rise may cause fire and damage the product. Make sure to allow some space. Do not install near a heater or any other high-temperature product or humidifier. Do not place the monitor near heat sources, such as radiators, and do not expose the monitor to direct sunlight for an extended period.
  • Page 6 Please do not try to take off the back panel to repair the monitor yourself. You may run the risk of shock and void the warranty as well. Contact Pixio directly for all RMA issues. Take note of elevation and temperature zone warnings on the adapters.

  • Page 7: Cleaning The Product

    Cleaning the Product. Take the following steps when cleaning. 1 Power off the product and computer. 2 Disconnect the power cord from the product. Hold the power cable by the plug and do not touch the cable with wet hands. Otherwise, an electric shock may result.
  • Page 8 Notice.
  • Page 9 Preperation. Product Includes: Monitor Stand M4*12mm Screw Washer DP Cable Power Adapter...

  • Page 10: Product Assembly

    Product Assembly:...

  • Page 11: Dimension And Weight

    Dimension & Weight. 539.94mm 44mm 100mm 299.92mm 142.56mm Net Weight: 2.9kg (6.39lb) l Gross Weight: 4.1kg (9.04lb)

  • Page 12: Monitor Inputs

    Monitor Inputs. HDMI2 HDMI 2.0, 144Hz, Adaptive Sync HDMI1 HDMI 2.0, 144Hz, Adaptive Sync DisplayPort 1.4, 144Hz, Adaptive Sync AUDIO OUT *WARNING: Always use the appropriate power cord.

  • Page 13: Control Panel

    Control Panel. Menu Short Cut Input selection Short Key Brightness Adjustment Short Key Menu Down Left Preset selection Short Key Menu Right Game Assist selection Short Key Menu Jog Button Multi directional button that helps Down Left Right navigate. Input Brightness Preset Game Assist...
  • Page 14 Main OSD Navigation How to Reconfigure Move up the OSD Menu / Increase Value 1920x1080 144Hz Adaptive Sync DP(1.4) Down Move down the OSD Menu / Decrease Value Display Brightness Left Color Contrast Move left on the OSD Menu / Back Gaming Setup Black Equalizer BACK...
  • Page 15 OSD Menu. Display 1920x1080 144Hz Adaptive Sync DP(1.4) •Brightness: Adjust the display brightness value from 0 to 100. Brightness Display Contrast Color •Contrast: Adjust the display contrast value from 0 to 100. Gaming Setup Black Equalizer •Black Equalizer: Adjust the Black Equalizer value from 0 to 100. Input Preset User...
  • Page 16 Color 1920x1080 144Hz Adaptive Sync DP(1.4) •Color Temperature: Select Color Temperature from Warm, Color Temperature User Display Normal, Cool, sRGB, and User. Gamma Color Gaming Setup •Gamma: Select Gamma from Off, 1.8, 2.0, 2.2, and 2.4. Saturation Input •Hue: Adjust the Hue value from 0 to 100. Low Blue Light System Set User Data...
  • Page 17 Gaming Setup •Adaptive Sync: Turn Adaptive Sync On or Off. •Overdrive: Select Overdrive from Off, Low, Middle, and High. 1920x1080 144Hz Adaptive Sync •Game Assist: Select Game Assist from Time, Crosshair(LoS), DP(1.4) and FPS Counter. FreeSync Display Overdrive Color Timer: Select Timer from Off, 15:00, 30:00, 45:00, 60:00 Gaming Setup Game Assist and 90:00...
  • Page 18 1920x1080 144Hz Adaptive Sync Input DP(1.4) Auto Select Display Color DP1 (1.4) •Switch the signal input to Auto Select, DP1(2.0), DP2(2.0), HDMI1(2.0), or HDMI2(2.0). Gaming Setup DP2 (1.4) Input HDMI1 (2.0) System Set HDMI2 (2.0) User Data V1.0 MOVE BACK ENTER...

  • Page 19: System Set

    System Set •Language: Change the OSD menu display language •OSD Setup: Select OSD Setup from H Position, V Position, 1920x1080 144Hz Adaptive Sync OSD Timeout, Transparency. DP(1.4) Language English Display H Position: Adjust 0-100 OSD Setup Color V-Position: Adjust 0-100 Audio Gaming Setup OSD Timeout: Adjust 15-60...
  • Page 20 1920x1080 144Hz Adaptive Sync User Data DP(1.4) User1 Load Display •User Data: Load/Save Brightness, Contrast Black Equalizer, User2 Save Color Gaming Setup User3 Saturation, Preset, Color Temperature, Gamma, Input Overdrive, Volume, Mute, Low Blue Light settings System Set on the monitor. User Data V1.0 MOVE...

  • Page 21: Adaptive-Sync

    Adaptive-Sync Adaptive Sync technology is solution that eliminates screen tearing without all the usual lag and latency. This feature will eliminate screen tearing and lag during game play. Improve your gaming experience. The displayed Adaptive Sync menu items on the monitor may vary, depending on the monitor model and compatibility with the AMD graphics card.
  • Page 22 If you have any questions or comments, please contact us below. USA: cs@pixiogaming.com JAPAN: support@pixiogaming.jp www.pixiogaming.jp/support www.pixiogaming.com For your warranty information, please visit...
