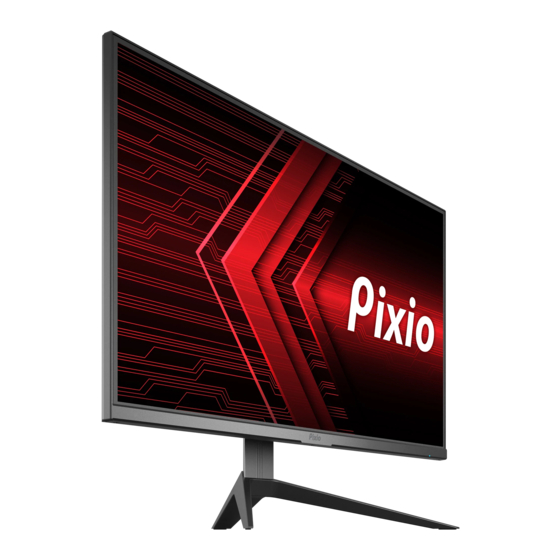

Pixio PX274 Prime User Manual

27in ips qhd 75hz gaming monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

PX274 Prime
The color and the appearance may differ depending on the product, and the specifications are subject to change without prior
notice to improve the performance. The contents of this manual are subject to change without notice to improve quality.
Copyright © 2022 Pixio USA Inc. I Pixio is a registered trademark of Pixio USA Inc. I All Rights Reserved.
Use or reproduction of this manual in parts or entirety without the authorization of Pixio USA Inc is prohibited.
All other trademarks are owned by their respective owners.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PX274 Prime and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pixio PX274 Prime

Summary of Contents for Pixio PX274 Prime

  • Page 1 The contents of this manual are subject to change without notice to improve quality. Copyright © 2022 Pixio USA Inc. I Pixio is a registered trademark of Pixio USA Inc. I All Rights Reserved. Use or reproduction of this manual in parts or entirety without the authorization of Pixio USA Inc is prohibited.
  • Page 2 27in IPS QHD 75Hz Gaming Monitor PX274P 210316026EMC-1...
  • Page 4 RISK OF ELECTRIC SHOCK DO NOT OPEN THE MONITOR. OPENING MONITOR BACK COVER WILL VOID YOUR WARRANTY. This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.

  • Page 5: Before Using The Product

    Before Using the Product. Installation Space Ensure some space around the product for ventilation. An internal temperature rise may cause fire and damage the product. Make sure to allow some space. Do not install near heater or any other high temperature product or humidifier. Do not place the monitor near heat sources, such as radiators, and do not expose the monitor to direct sunlight for an extended period of time.
  • Page 6 Please do not try to take off the back panel to repair the monitor yourself. You may run the risk of shock and void the warranty as well. Contract Pixio directly for all RMA issues. Take note of elevation and temperature zone warnings on the adapters.

  • Page 7: Cleaning The Product

    Cleaning the Product. Take the following steps when cleaning. 1 Power off the product and computer. 2 Disconnect the power cord from the product. Hold the power cable by the plug and do not touch the cable with wet hands. Otherwise, an electric shock may result.
  • Page 8 Notice.
  • Page 9 Preparation. Product Includes:...

  • Page 10: Product Assembly

    Product Assembly: 1. Assemble the base to the stand with 2 sets of M4 x 16mm screws as pictured.

  • Page 11: Product Disassembly

    Product Disassembly: To remove the whole base, do as above: Push the Slider on the back cover. Take it out in the arrow pointed direction. Lift the base.

  • Page 12: Dimension And Weight

    Dimension & Weight. 57.5mm 616mm 100mm 410.3mm 251.8mm Net Weight: 4.9kg (10.80lb)

  • Page 13: Monitor Inputs

    Monitor Inputs. DisplayPort 1.2, 75Hz, FreeSync HDMI2 HDMI 1.4, 60Hz, FreeSync HDMI1 HDMI 1.4, 60Hz, FreeSync Earphone *WARNING: Always use the appropriate power cord.

  • Page 14: Control Panel

    Control Panel. Menu Short Cut Input selection Short Key Down Brightness Adjustment Short Key Menu Left Preset selection Short Key Menu Right Volume Adjustment Short Key Menu Jog Button Multi directional button that helps navigate. Down Left Right Brightness Volume Auto Select Preset HDMI 2 (1.4)
  • Page 15 Main OSD Navigation How to Reconfigure Display V1.0 Exit the Main OSD Menu. Brightness Contrast Go Up on the Main OSD Menu / Decrease the value of a selected item. User Preset Go Down on the Main OSD Menu / Increase the value of a selected item. Overdrive...
  • Page 16 OSD Menu. Display •Brightness: Adjust the display brightness value from 0 to 100. Display V1.0 •Contrast: Adjust the display contrast value from 0 to 100. Brightness •Preset: Select Preset from Standard, User, Internet, Game or Contrast Movie. User Preset •DCR: Turn DCR On or Off. •Overdrive: Select Overdrive from Off, Low, Middle, and High.
  • Page 17 Image V1.0 Image •Select Aspect Ratio from Full or 4:3. Full Aspect Ratio MOVE BACK ENTER...
  • Page 18 Color V1.0 Color •Color Temperature: Select Warm, Normal, Cool or User. •Red, Green, Blue: Adjust color values from 0-100. Normal Color Temp. •Low Blue Light: Adjust Low Blue Light value from 0-100. Green •Black Equalizer: Adjust Black Equalizer value from 0-100. Blue Low Blue Light Black Equalizer...

  • Page 19: Osd Setup

    OSD Setup V1.0 OSD Setup •Language: Change the OSD menu display language •OSD Setup: Select OSD Setup from H Position, V Position, English Language OSD Timeout, Transparency. OSD H.Position H Position: Adjust 0-100 OSD V.Position V Position: Adjust 0-100 OSD Timer OSD Timer: Adjust 15-60 Transparency: Adjust 0-100 Transparency...

  • Page 20: System Setup

    System Setup V1.0 System Setup •Reset: Select Reset from Cancel or Confirm. Reset...
  • Page 21 Misc. V1.0 Misc. •Input Select: Switch the signal input to Auto Select, Auto Select Input HDMI2(1.4), HDMI1(1.4) or DP(1.2). Mute •Mute: Turn On or Off. Volume •Volume: Adjust Volume value from 0 to 100. FreeSync •FreeSync: Turn FreeSync On or Off. 2560x1440 75Hz...
  • Page 22 Adaptive-Sync. (AMD FreeSync or Nvidia G-Sync.) FreeSync technology is solution that eliminates screen tearing without all the usual lag and latency. This feature will eliminate screen tearing and lag during game play. Improve your gaming experience. The displayed FreeSync menu items on the monitor may vary, depending on the monitor model and compatibility with the AMD graphics card.
  • Page 23 If you have any questions or comments, please contact us below. USA: cs@pixiogaming.com JAPAN: support@pixiogaming.jp www.pixiogaming.jp/support www.pixiogaming.com For your warranty information, please visit...
