Pixio PX222 User Manual

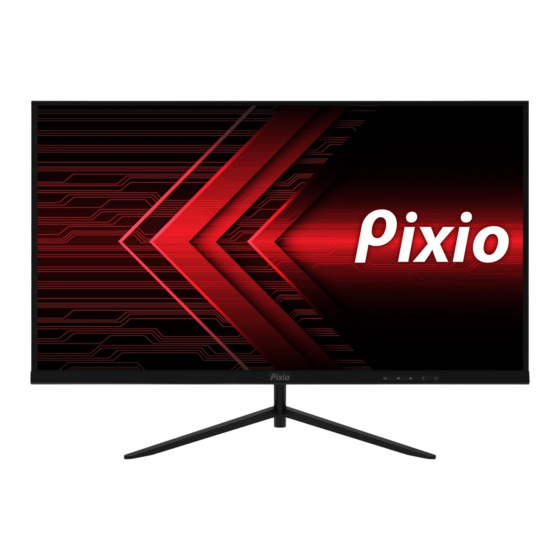

21.5in va fhd 75hz gaming monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PX222
The color and the appearance may differ depending on the product, and the specifications are subject to change without prior
notice to improve the performance. The contents of this manual are subject to change without notice to improve quality.
Copyright © 2021 Pixio USA Inc. I Pixio is a registered trademark of Pixio USA Inc. I All Rights Reserved.
Use or reproduction of this manual in parts or entirety without the authorization of Pixio USA Inc is prohibited.
All other trademarks are owned by their respective owners.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PX222 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pixio PX222

Summary of Contents for Pixio PX222

  • Page 1 The contents of this manual are subject to change without notice to improve quality. Copyright © 2021 Pixio USA Inc. I Pixio is a registered trademark of Pixio USA Inc. I All Rights Reserved. Use or reproduction of this manual in parts or entirety without the authorization of Pixio USA Inc is prohibited.
  • Page 2 21.5in VA FHD 75Hz Gaming Monitor PX222 BCTC2108847443E...
  • Page 3 J O I N T H R E D T E R E D T E Reddit Keep up to date Sign up for our on the latest newsletter Discord news, take part in giveaways, and https://www.reddit.com/r/Pixio_Gaming www.pixiogaming.com interact with us! https://discord.com/invite/AK5nPezcAj...
  • Page 4 RISK OF ELECTRIC SHOCK DO NOT OPEN THE MONITOR. OPENING MONITOR BACK COVER WILL VOID YOUR WARRANTY. This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.

  • Page 5: Before Using The Product

    Before Using the Product. Installation Space Ensure some space around the product for ventilation. An internal temperature rise may cause fire and damage the product. Make sure to allow some space. Do not install near heater or any other high temperature product or humidifier. Do not place the monitor near heat sources, such as radiators, and do not expose the monitor to direct sunlight for an extended period of time.
  • Page 6 Please do not try to take off the back panel to repair the monitor yourself. You may run the risk of shock and void the warranty as well. Contract Pixio directly for all RMA issues. Take note of elevation and temperature zone warnings on the adapters.

  • Page 7: Cleaning The Product

    Cleaning the Product. Take the following steps when cleaning. 1 Power off the product and computer. 2 Disconnect the power cord from the product. Hold the power cable by the plug and do not touch the cable with wet hands. Otherwise, an electric shock may result.
  • Page 8 Notice.
  • Page 9 Preparation. Product Includes: Stand Stem M4*12mm Screw HDMI Cable...

  • Page 10: Product Assembly

    Product Assembly: M4*12mm Open the package, assemble the stand base to the stand stem with 1 piece of M4*12mm. Screw as shown in the illustration.
  • Page 11 Product Assembly: Take out the product with foam still attached, and Stand assembly complete. gently place it on a desktop or table. And insert the stand stem into the back of the monitor as shown in the illustration.

  • Page 12: Dimension And Weight

    Dimension & Weight. 6.8mm 491.63mm 75mm 323.88mm 136mm Net Weight: 1.95kg (4.30lb)

  • Page 13: Monitor Inputs

    Monitor Inputs. HDMI HDMI 1.4, 75Hz, FreeSync 75Hz Earphones *WARNING: Always use the appropriate power cord.

  • Page 14: Control Panel

    Control Panel. Open the Main OSD Menu Preset selection Short Key Crosshair(LoS) selection Short Key Select Input Turn Off Power / Power On Short Key Guide Activate the Signal Input Selection menu. Use to navigate and M to select the source. Activate the Preset Feature.
  • Page 15 Main OSD Navigation How to Reconfigure Brightness V1.0 Exit the Main OSD Menu. Brightness Contrast Go Up on the Main OSD Menu / Decrease the value of a selected item. Black Equalizer Preset Standard Go Down on the Main OSD Menu / Increase the value of a selected item. Open OSD Menu / Enter to next level of the menu / Select highlighted item.
  • Page 16 OSD Menu. Display •Brightness: Adjust the display brightness value from 0 to 100. Display V1.0 •Contrast: Adjust the display contrast value from 0 to 100. Brightness •Black Equalizer: Adjust the Black Equalizer value from 0 to 100. Contrast Black Equalizer •Preset: Select Preset from Standard, Internet, Game, and Movie.

  • Page 17: Image Setup

    Image Setup V1.0 Image Setup •H. Position: Adjust 0-100 •V. Position: Adjust 0-100 H. Position V. Position •Clock: Adjust 0-100 Clock •Phase: Adjust 0-100 Phase •Aspect Ratio: Select from 4:3, and Wide Aspect Ratio Wide...

  • Page 18: Color Setup

    Color Setup Color Setup V1.0 •Color Temperature: Select from User, Warm, Normal, and Cool. •Red: Adjust 0-100 Color Temp. User •Green: Adjust 0-100 Green •Blue: Adjust 0-100 Blue •Low Blue Light: Select from Off, Low, Middle, and High. Low Blue Light...
  • Page 19 OSD Setup OSD Setup V1.0 •Language: Change the OSD menu display language •OSD Setup: Select OSD Setup from H Position, V Position, Language English OSD Timer, Transparency. OSD H. Position H Position: Adjust 0-100 OSD V. Position V Position: Adjust 0-100 OSD Timer: Adjust 15-60 OSD Timer Transparency: Adjust 0-100...
  • Page 20 Reset V1.0 Reset •Auto Configuration: Select for Auto Configuration. •Auto Color: Select for Auto Color. Auto Config. Auto Color •Reset: Select Reset to restore factory default setting. Reset...
  • Page 21 Misc. •Input Select: Switch the signal input to Auto Select, VGA, or Misc. V1.0 HDMI (1.4). Input Select Auto Select •Mute: Turn On or Off the sound. Mute •Volume: Adjust Volume value from 0 to 100. Volume FreeSync •FreeSync: Turn FreeSync On or Off. Overdrive •Overdrive: Select Overdrive from Off, Low, Middle, and High.
  • Page 22 Adaptive-Sync. (AMD FreeSync) FreeSync technology is solution that eliminates screen tearing without all the usual lag and latency. This feature will eliminate screen tearing and lag during game play. Improve your gaming experience. The displayed FreeSync menu items on the monitor may vary, depending on the monitor model and compatibility with the AMD graphics card.
  • Page 23 If you have any questions or comments, please contact us below. USA: cs@pixiogaming.com JAPAN: support@pixiogaming.jp www.pixiogaming.jp/support www.pixiogaming.com For your warranty information, please visit...
