PX275C Prime
The color and the appearance may differ depending on the product, and the specifications are subject to change without prior
notice to improve the performance. The contents of this manual are subject to change without notice to improve quality.
Copyright © 2021 Pixio USA Inc. I Pixio is a registered trademark of Pixio USA Inc. I All Rights Reserved.
Use or reproduction of this manual in parts or entirety without the authorization of Pixio USA Inc is prohibited.
All other trademarks are owned by their respective owners.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pixio PX275C Prime
Summary of Contents for Pixio PX275C Prime
- Page 1 The contents of this manual are subject to change without notice to improve quality. Copyright © 2021 Pixio USA Inc. I Pixio is a registered trademark of Pixio USA Inc. I All Rights Reserved. Use or reproduction of this manual in parts or entirety without the authorization of Pixio USA Inc is prohibited.

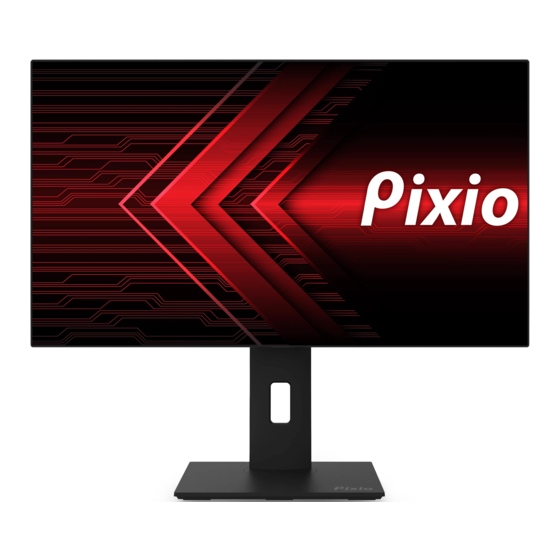

- Page 2 27in IPS QHD 100Hz Gaming Monitor PX275CP BCTC2106084871E...
- Page 4 RISK OF ELECTRIC SHOCK DO NOT OPEN THE MONITOR. OPENING MONITOR BACK COVER WILL VOID YOUR WARRANTY. This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.
-
Page 5: Before Using The Product
Before Using the Product. Installation Space Ensure some space around the product for ventilation. An internal temperature rise may cause fire and damage the product. Make sure to allow some space. Do not install near heater or any other high temperature product or humidifier. Do not place the monitor near heat sources, such as radiators, and do not expose the monitor to direct sunlight for an extended period of time. - Page 6 Please do not try to take off the back panel to repair the monitor yourself. You may run the risk of shock and void the warranty as well. Contract Pixio directly for all RMA issues. Take note of elevation and temperature zone warnings on the adapters.
-
Page 7: Cleaning The Product
Cleaning the Product. Take the following steps when cleaning. 1 Power off the product and computer. 2 Disconnect the power cord from the product. Hold the power cable by the plug and do not touch the cable with wet hands. Otherwise, an electric shock may result. - Page 8 Notice.
- Page 9 Preparation. Product Includes: Monitor Stand Stem Stand Base HDMI Cable Type-C Cable Power Adapter...
-
Page 10: Product Assembly
Product Assembly: Open the package, take out the product with foam still attached, and gently place it on a desktop or table. - Page 11 Product Assembly: Insert the stand stem into the back of the monitor Assemble the stand base to the stem. *M6*15mm as shown in the illustration. screw is attached to the base. Turn screw to tighten.
-
Page 12: Dimension And Weight
Dimension & Weight. 613.9mm 100mm 245mm 185mm Net Weight: 7.2kg (15.87lb) - Page 13 45˚ 45˚ Swivel Tilt...
- Page 14 90˚ Elevate Pivot...
-
Page 15: Monitor Inputs
Monitor Inputs. AUDIO OUT Type C 100 Hz, 65W Power Charge, FreeSync Premium HDMI HDMI 1.4, 100Hz, FreeSync Premium DisplayPort 1.2, 100Hz, FreeSync Premium *WARNING: Always use the appropriate power cord. -
Page 16: Control Panel
Control Panel. Menu Short Cut Input selection Short Key Down Image Short Key Menu Left Preset Selection Short Key Menu Right Game Assist Selection Short Key Menu Jog Button Multi directional button that helps Down Left Right navigate. V1.0 V1.0 V1.0 V1.0 Display... - Page 17 Main OSD Navigation Input How to Reconfigure V1.0 Move up the OSD Menu / Increase Value Display Brightness Down Move down the OSD Menu / Decrease Value Image Contrast Left Color Preset Standard Move left on the OSD Menu / Back OSD Setup BACK System Setup...
- Page 18 OSD Menu. Input Display V1.0 •Brightness: Adjust the display brightness value from 0 to 100 Display Brightness Image Contrast •Contrast: Adjust the display contrast value from 0 to 100 Color Preset Standard OSD Setup •Preset: Select Preset from Standard, Game, Movie, ECO, FPS, System Setup MISC.
- Page 19 Input Image V1.0 •Aspect Ratio: Select Full or 4:3 Display Aspect Ratio Full Image Color OSD Setup System Setup MISC. MOVE BACK ENTER DP (1.2) 2560x1440@100Hz...
-
Page 20: Color Temperature
Input Color Temperature V1.0 •Select Color Temperature from Warm, User, Cool or 7500 Display Color Temp. Warm Low Blue Light Image •Low Blue Light: Adjust the Blue Light Filter value from 0 - 100 Black Equalizer Color •Black Equalizer: Select Off or On OSD Setup System Setup MISC. -
Page 21: Osd Setup
Input OSD Setup V1.0 •Language: Change the OSD menu display language Display Language English Image H Position •H Position: Adjust the horizontal position of the OSD menu Color V Position value from 0-100 OSD Timeout OSD Setup System Setup Transparency •V Position: Adjust the vertical position of the OSD menu Rotate 0º... -
Page 22: System Setup
Input System Setup V1.0 •Reset: Select Reset from Cancel or Confirm Display Reset Cancel Image Flicker Free •Flicker Free: Select On or Off Color OSD Setup System Setup MISC. MOVE BACK ENTER DP (1.2) 2560x1440@100Hz... - Page 23 Input MISC. V1.0 •Input: Switch the signal input to Auto Select, TYPE C, DP (1.2), HDMI (1.4) Display Input DP 1.2 Image Mute •Mute: Turn On or Off Color Volume FreeSync OSD Setup •Volume: Adjust 0-100 System Setup Overdrive •FreeSync: Turn FreeSync On or Off MISC.
- Page 24 Adaptive-Sync. (AMD FreeSync or Nvidia G-Sync.) FreeSync technology is solution that eliminates screen tearing without all the usual lag and latency. This feature will eliminate screen tearing and lag during game play. Improve your gaming experience. The displayed FreeSync menu items on the monitor may vary, depending on the monitor model and compatibility with the AMD graphics card.
- Page 25 If you have any questions or comments, please contact us below. USA: cs@pixiogaming.com JAPAN: support@pixiogaming.jp www.pixiogaming.jp/support www.pixiogaming.com For your warranty information, please visit...
