Pixio PX277OLED MAX User Manual

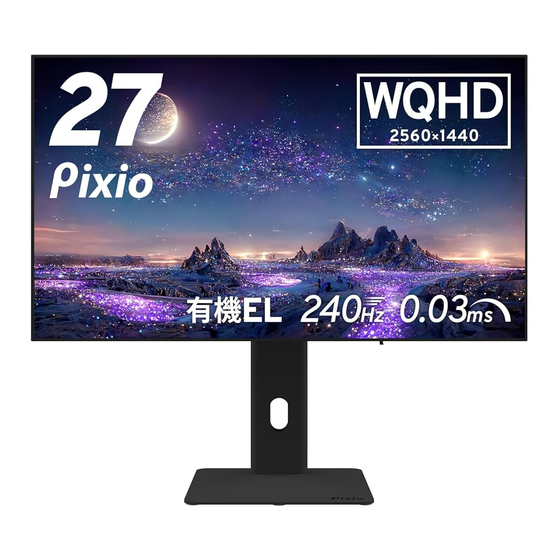

27in oled qhd 240hz gaming monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PX277OLED MAX
The color and the appearance may differ depending on the product, and the specifications are subject to change without prior
notice to improve the performance. The contents of this manual are subject to change without notice to improve quality.
Copyright © 2024 Pixio USA Inc. I Pixio is a registered trademark of Pixio USA Inc. I All Rights Reserved.
Use or reproduction of this manual in parts or entirety without the authorization of Pixio USA Inc is prohibited.
All other trademarks are owned by their respective owners.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PX277OLED MAX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pixio PX277OLED MAX

Summary of Contents for Pixio PX277OLED MAX

  • Page 1 The contents of this manual are subject to change without notice to improve quality. Copyright © 2024 Pixio USA Inc. I Pixio is a registered trademark of Pixio USA Inc. I All Rights Reserved. Use or reproduction of this manual in parts or entirety without the authorization of Pixio USA Inc is prohibited.
  • Page 2 27in OLED QHD 240Hz Gaming Monitor PX277OLEDMAX DEFA2312029...
  • Page 4 RISK OF ELECTRIC SHOCK DO NOT OPEN THE MONITOR. OPENING MONITOR BACK COVER WILL VOID YOUR WARRANTY. This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.

  • Page 5: Before Using The Product

    Before Using the Product. Installation Space Ensure some space around the product for ventilation. An internal temperature rise may cause fire and damage the product. Make sure to allow some space. Do not install near heater or any other high temperature product or humidifier. Do not place the monitor near heat sources, such as radiators, and do not expose the monitor to direct sunlight for an extended period of time.
  • Page 6 Please do not try to take off the back panel to repair the monitor yourself. You may run the risk of shock and void the warranty as well. Contract Pixio directly for all RMA issues. Take note of elevation and temperature zone warnings on the adapters.

  • Page 7: Cleaning The Product

    Cleaning the Product Take the following steps when cleaning. 1 Power off the product and computer. 2 Disconnect the power cord from the product. Hold the power cable by the plug and do not touch the cable with wet hands. Otherwise, an electric shock may result.
  • Page 8 Notice.
  • Page 9 Preparation. Product Includes: Stand Stem Stand Base USB-B to USB-A Cable...

  • Page 10: Product Assembly

    Product Assembly: Unpack the product, leaving the foam attached, and carefully position it on a desktop or table.
  • Page 11 Insert the stand stem into the back of the monitor as illustrated. Attach the stand base to the stem using the provided M6*14 screw. Tighten the screw to secure it.

  • Page 12: Dimension And Weight

    Dimension & Weight. 5.4mm 604.4mm 100mm 200.0mm 220mm Net Weight: 6.8kg (14.99lb)

  • Page 13: Monitor Inputs

    Monitor Inputs. Earphone USB-UP HDMI1 HDMI 2.0, 144Hz, Adaptive Sync, HDR USB1 HDMI2 HDMI 2.0, 144Hz, Adaptive Sync, HDR USB2 DisplayPort 1. , 240Hz, Adaptive Sync, HDR USB Type-C 240Hz, 65W Power Charge *WARNING: Always use the appropriate power cord.

  • Page 14: Control Panel

    Control Panel. Menu Short Cut Input selection Short Key Down Brightness Adjustment Short Key Menu Left Preset selection Short Key Menu Right Game Assist selection Short Key Menu Jog Button Multi directional button that helps Left Right Down navigate. Input Preset Game Assist Brightness...
  • Page 15 Main OSD Navigation How to Reconfigure Move up the OSD Menu / Increase Value 2560x1440 165Hz Adaptive Sync DP1(1.2) 1920x1080 2560x1440 1920x1080 2560x1440 165Hz 165Hz 165Hz 240Hz Adaptive Sync Adaptive Sync FreeSync FreeSync Down Move down the OSD Menu / Decrease Value Display Brightness DP1 (1.4)
  • Page 16 OSD Menu. Display •Brightness: Adjust the display brightness value from 0 to 100. 1920x1080 2560x1440 165Hz 240Hz Adaptive Sync FreeSync •Contrast: Adjust the display contrast value from 0 to 100. Display Display Brightness Brightness •Black Equalizer: Adjust the Black Equalizer value from 0 to 100. Color Color Contrast...
  • Page 17 Color •Color Temperature: Select Color Temperature from Normal, 1920x1080 2560x1440 1920x1080 2560x1440 165Hz 165Hz 165Hz 240Hz Adaptive Sync Adaptive Sync FreeSync FreeSync Cool, Warm, User , and sRGB. DP1 (1.4) Display Display Display Display Color Temperature Color Temperature Color Temperature Normal Normal Normal...
  • Page 18 Gaming Setup •Adaptive Sync: Turn Adaptive Sync On or Off. •Game Assist: Select Game Assist from Timer, Crosshair(LoS), 2560x1440 1920x1080 2560x1440 165Hz 165Hz 240Hz Adaptive Sync Adaptive Sync FreeSync and FPS Counter. DP1 (1.4) Display Display Display Adaptive Sync Brightness Adaptive Sync Timer: Select Timer from Off, 15:00, 30:00, 45:00, 60:00 Color...

  • Page 19: Advanced Settings

    Advanced Settings DP1(1.4) 2560x1440 1920x1080 2560x1440 165Hz 165Hz 240Hz Adaptive Sync Adaptive Sync FreeSync Auto Select Display DP1 (1.4) Color DP1(1.4) •HDR: Select HDR from Off, Auto, and Enhanced HDR. Display Display Display Auto Select Brightness Auto Gaming Setup DP2 (1.4) Color Color Color...
  • Page 20 Input DP1(1.4) Language 2560x1440 165Hz English Adaptive Sync 1920x1080 2560x1440 165Hz 240Hz Adaptive Sync FreeSync Display DP1 (1.4) OSD Setup Color • Switch the signal input to Auto Select, Type-C, DP (1.4), Display Language English Display Display Brightness Auto Select Audio Gaming Setup HDMI2 (2.0), and HDMI1 (2.0).

  • Page 21: System Setup

    System Setup •Language: Change the OSD menu display language. •RGB Light: Select the RGB Light from Off, On, and Breathing. DP1(1.4) •OSD Setup: Select OSD Setup from H Position, V Position, User1 2560x1440 165Hz Load Adaptive Sync 1920x1080 2560x1440 165Hz 240Hz Adaptive Sync FreeSync...

  • Page 22: Adaptive-Sync

    Adaptive-Sync Adaptive Sync technology is solution that eliminates screen tearing without all the usual lag and latency. This feature will eliminate screen tearing and lag during game play. Improve your gaming experience. The displayed Adaptive Sync menu items on the monitor may vary, depending on the monitor model and compatibility with the AMD graphics card.
  • Page 23 If you have any questions or comments, please contact us below. USA: cs@pixiogaming.com JAPAN: support@pixiogaming.jp www.pixiogaming.jp/support www.pixiogaming.com For your warranty information, please visit...
