Fuego F27S-Griddle & F27S-Griddle-NG Use And Care Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F27S-Griddle and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fuego F27S-Griddle

Summary of Contents for Fuego F27S-Griddle

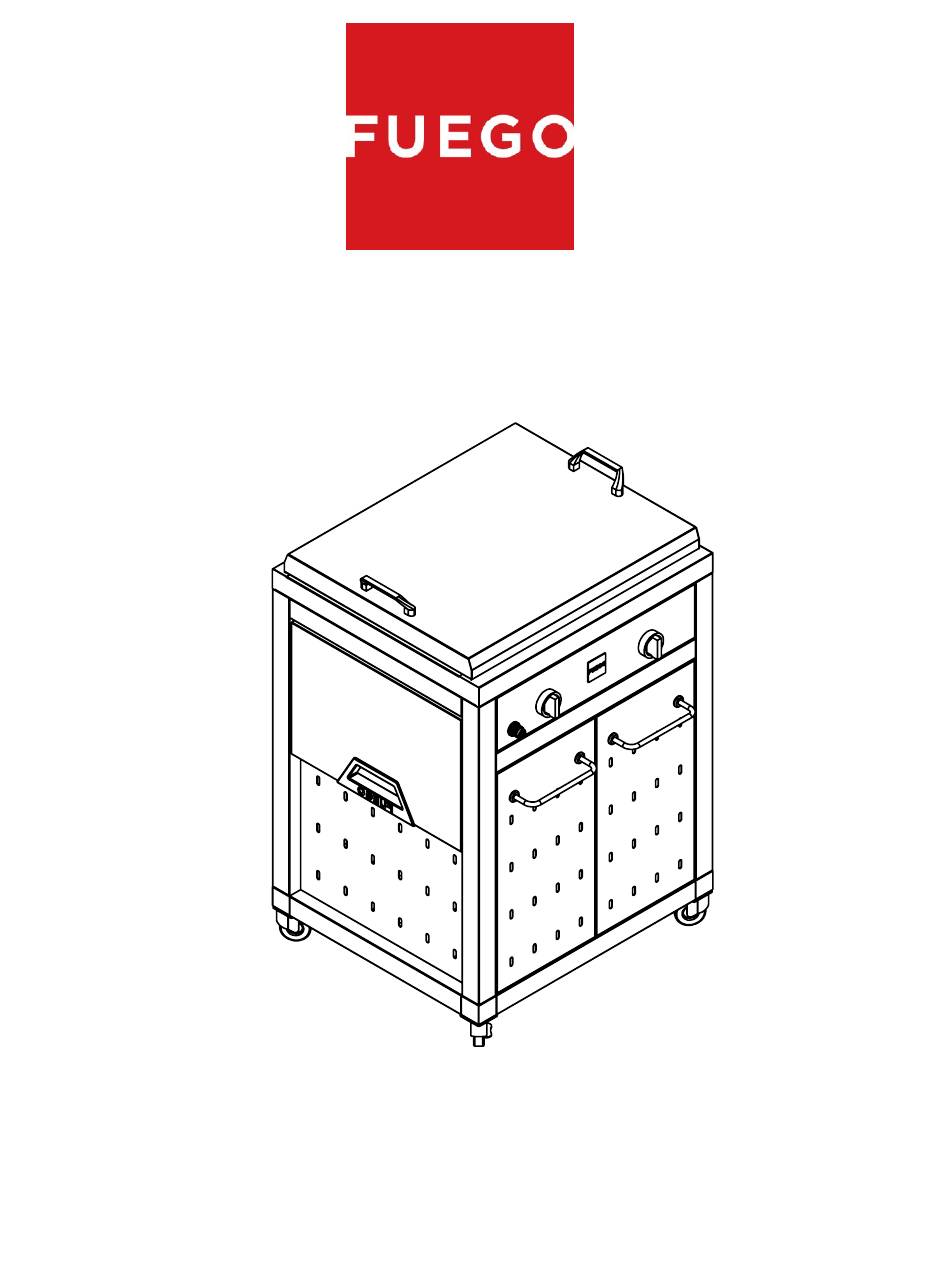

  • Page 1 Fuego F27S-Griddle & F27S-Griddle-NG Use And Care Manual...
  • Page 3 User Guide for models: F27S-Griddle F27S-Griddle-NG Please retain this manual for future reference. DANGER AND WARNINGS You Must Read This Owner’s Guide Before Operating Your Gas Grill. DANGER If you smell gas: • Shut off gas to the appliance. • Extinguish any open flames.
  • Page 5 Thank you for your Fuego Gas Grill purchase. We are excited to present to you our new Fuego ALL 304 Stainless Steel Gas Grill. We set out to design a grill that eliminated all of the bulky features you see on most gas grills. We started with the shelves and recessed them into the side panels which creates a more compact footprint and stylish design when closed as wells as a fully functional shelf system when open.
  • Page 6 DANGER AND WARNINGS You Must Read This Owner’s Guide Before Operating Your Gas Grill. WARNING: Leaking gas may cause a fire or explosion, which can cause serious bodily injury or death, or damage to property. WARNING: Follow all leak-check procedures carefully in this manual prior to barbecue operation.

  • Page 7: General Instructions

    Use heat-resistant barbecue mitts or gloves when operating barbecue. Keep any electrical supply cord and fuel supply hose away from any heated surfaces. CALIFORNIA PROPOSITION 65 WARNING: The burning of gas cooking fuel generates some by-products which are on the list of substances known by the State of California to cause cancer and reproductive harm.

  • Page 8: For Installation In Canada

    The pressure regulator supplied with the gas barbecue must be used. This regulator is • set for 11 inches of water column (pressure). This gas barbecue is designed for use with liquid propane (LP) gas by default. A NG • conversion kit must be used when converting the LP unit to NG unit to use natural gas.
  • Page 9 • Details of 20lb LP cylinder • Diameter: 12+1/4”~11+3/4” • Height: 17+15/16”~17+7/16” • Weight: 18lb, Empty • 38lb, Full WARNING: Do not leave items on or against the barbecue. Keep flammable products and sprays away. For outdoor use only. Storage And / Or Non Use The gas must be turned off at the liquid propane cylinder when the gas barbecue is •...
  • Page 10 F27S-Griddle...
  • Page 11 F27S-Griddle...
  • Page 12 F27S-Griddle-NG...
  • Page 13 F27S-Griddle-NG...
  • Page 14 Item ID Descrip,on F27S-Griddle F27S-Griddle-NG Part Number Griddle Lid Handle FSP1730 27" Griddle Lid FSP1740 Transparent Rubber Bumper FSP1750 Griddle Plate FSP1760 U Shape Main Burner FSP1060 Burner Bracket FSP1070 Burner Rain Shield FSP1770 27" Griddle Fire Box FSP1780 27" Griddle Freestanding Manifold ASM. LP FSP1470 27"...

  • Page 15: Installation

    Installation Items Needed (Not Included) Utility Knife / Box Cutter Scissors Two People AA Battery Stainless Steel Cleaner Non Abrasive Towel...
  • Page 16 Quick Set-up Guide Step 1 1A. Remove the outer carton from the pallet by lifting it vertically off the pallet*. 1B. Remove all of the foam, cardboard and plastic packing around the grill. *Please note that it is helpful to cut the tape on the top and open the flaps for easy removal.
  • Page 17 Step 2 Lift the grill off of the pallet. Please lift from the designated support bar lifting areas as noted in the images below.* *This item should be lifted off the pallet by a team of 2 or more people. To lighten the load we recommend opening the lid and removing the internal grates and diffuser panels.
  • Page 18 Step 3 Install the AA battery. Please ensure that the + end of the battery faces out towards the battery cap. The cap button can be removed by unscrewing by rotating counterclockwise.
  • Page 19 Step 4 Remove the grease tray and discard the protective packaging material. Re-install the grease tray before operation.
  • Page 20 Step 5 Side shelf operation. The grill can be used with the side shelves in either the open or closed position. To open, pull the shelf upward from the black handle until the shelf support brackets lock into the slot. The shelf is now sitting horizontal for use. To close, lift up on the shelf support brackets to allow the shelf to fold back down into the side panel.
  • Page 21 Step 9 Remove the laser film from the lid. Clean the entire exterior grill surfaces with a stainless steel cleaner and non-abrasive towel. Do NOT clean the cooking surface with stainless steel cleaner. Please see griddle seasoning instructions.
  • Page 22 Step 10 Propane Gas Hook Up A. Open the front door and install a standard 20lb LP cylinder (Type 1) into the opening of the grill base (Note: the tank must be hanging from the tank hook) and connect the LP gas hose with regulator assembly to the LP cylinder.

  • Page 23: Step 11 Natural Gas Hook Up

    Step 11 Natural Gas Hook Up Open the front door and run the flexible gas hose through hole in the back panel. Proper procedures for gas leakage testing must be obeyed. Connect to existing house gas line. Please note the Gas Hook-Up, Danger, and Warnings pages for more information. Directions for proper assembly and for assembly of field-installed parts and accessories supplied with the outdoor cooking gas appliance, and proper procedures for gas leak testing.
  • Page 24 LP Gas Hook-Up for Type 1 or QCC1 Regulator LP Tank Requirements: The Element by Fuego grill is orificed for use with LP gas and comes equipped with a high capacity hose and regulator assembly for connection to a standard 20lb. LP cylinder (Type 1). The LP tank is not included.

  • Page 25: Leak Testing

    Check all the gas connections at the base of the control valves where they screw into the manifold pipe. If you cannot stop a gas leak, turn off the gas supply and call your local gas utility or Fuego customer service at 888-88FUEGO (38346).
  • Page 26 Lighting Instruction Manual Warning: Before Lighting, please make sure that the control knob is in the off position and the regulator assembly is in good condition. Control Knob. IMPORTANT Do not leave items on or against the barbecue. Keep flammable product and sprays away. For outdoor use only.

  • Page 27: Maintenance

    Maintenance WARNING: IMPORTANT! General Instructions: Before lighting, inspect the gas supply piping or hose prior to turning the gas “on”. If there is evidence of cuts, wear or abrasion, it must be replaced prior to use. Replacement pressure regulators and hose assemblies must be those specified by the outdoor cooking gas appliance manufacturer.
  • Page 28 Grill Burner Exterior Cleaning Clean the exterior of the burner with a wire brush. Clean stubborn scale with a metal scraper. Clear any clogged ports with a straightened paper clip. Never use a wooden toothpick as it may break off and clog the port.
  • Page 29 WARNING: IT IS EXTREMELY IMPORTANT TO CENTER THE BURNER ON THE ORIFICE PROPERLY TO PREVENT A FIRE HAZARD OR EXPLOSION. PLEASE USE DRAWINGS BELOW FOR PROPER PLACEMENT REFERENCE. PLEASE NOTE THAT WHEN PROPERLY INSTALLED, BOTH SCREWS HOLDING THE BURNER IN PLACE WILL BE ABLE TO SCREW IN WITHOUT FORCE.
  • Page 30 Recommended Cooking Times: Type of Meat Thickness Doneness Grilling Time* Safe Internal Temperature* *approx *data from USDA Beef Boneless Rib Eye 1 in Med Rare 14-18 145°F / 62.8°C or Tenderloin 18-22 Boneless 1 in Med Rare 14-18 145°F / 62.8°C Sirloin Steak 18-22 T-bone,...

  • Page 31: Limited Warranty Information

    Any claim for damages incurred during shipment by the carrier of the goods are insured and handled directly with the carrier. Any damages due to manufacture defects will be handled directly with Fuego Living LLC, subject to the limited warranty.
  • Page 32 Length of Warranty: Lifetime comprehensive parts on the entire product / one (1) years limited parts warranty covering the ignition system. Customer responsible for shipping and handling costs of replacement parts. For replacement parts, troubleshooting, and general inquiries please email or call us at: Phone: 1.888.883.8346 1.888.88.FUEGO Email: info@fuegoliving.com Web: www.fuegoliving.com Fuego Living LLC...
