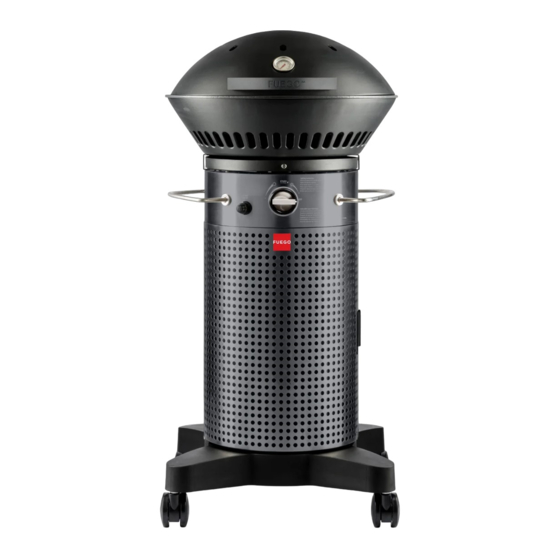

Fuego F21C Quick Assembly Manual

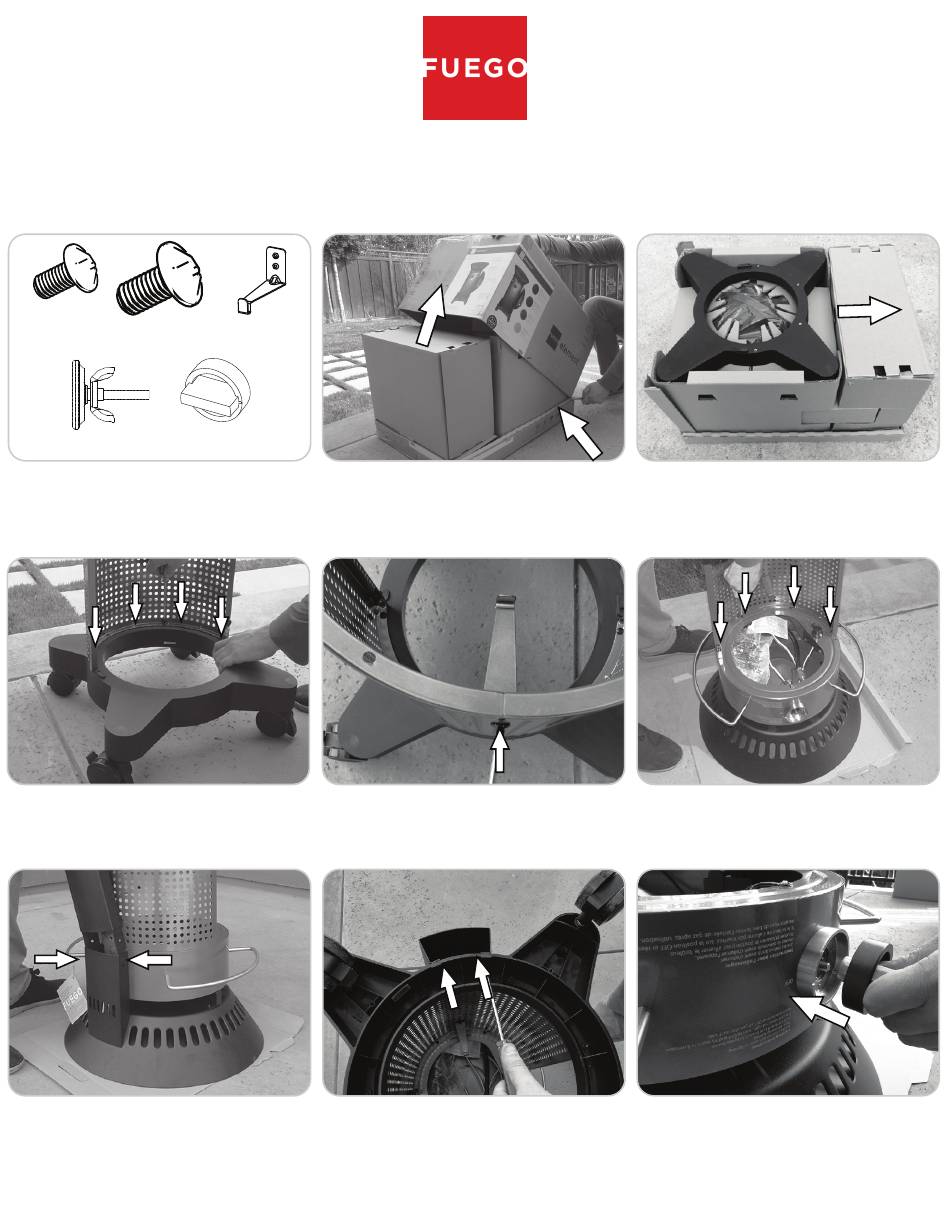

F21C & F21S Quick Assembly Guide
For installation questions or if you need replacement components please call
888.883.8346, email info@fuegoliving.com or visit support.fuegoliving.com.
(A) M5 x8 (B) M6 x6
x1
3) Set base on wheels and fasten rear
panel to the grill base with x4 M5 (A)
screws.
6) Insert support spine into control
assembly slot and fasten with x2 M6 (B)
screws.
x1
x1
1) With a box knife, cut along the
dotted line marked all around carton
and remove carton top.
*The carton pieces are designed to interlock in order to prevent freight damage. Cutting and removing the cover carton
allows easy access to the nested box components.
4) Fasten tank hook to marked label
with x2 M6 (B) screws.
7) Fasten support spine to wheel base
with x2 M6 (B) screws.
www.fuegoliving.com
2) Separate cartons by removing wheel
base, pulling away end carton and
unpacking remaining cartons.
5) Place fire bowl assembly flat; fasten
wheel base assembly w/ rear panel onto
control assembly with x4 M5 (A) screws.
8) Install control knob onto gas valve
stem as shown.
