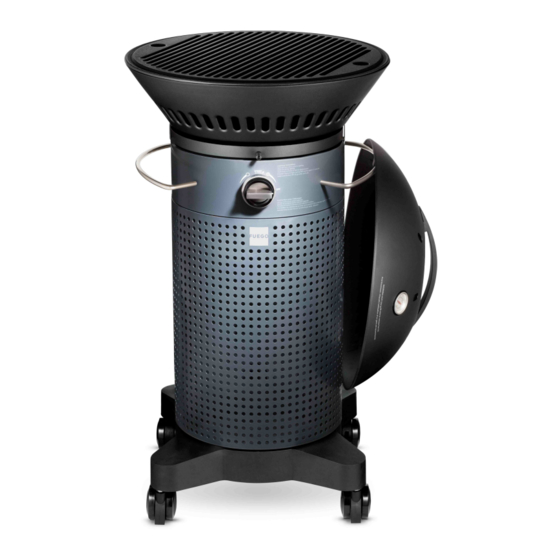

User Guide for models: FENG21C &
FENG21S!
Please retain this manual for future reference!
!
DANGER AND WARNINGS!
You Must Read This Owner's Guide Before Operating!
Your Gas Grill!
!
!
DANGER!
1.
If you smell gas:!
2.
Shut off gas to the appliance.
3.
Extinguish any open flames.!
4.
Open lid.!
5.
If odor continues, keep away from the appliance and
immediately call your gas supplier or your fire department.
!
!
WARNING:!
1.
Do not store or use gasoline or other flammable liquids or vapors
in the vicinity of this or any other appliance.!
2.
An LP cylinder not connected for use shall not be stored in the
vicinity of this or any other appliance.
!
!
! 1
!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fuego FENG21S
Summary of Contents for Fuego FENG21S

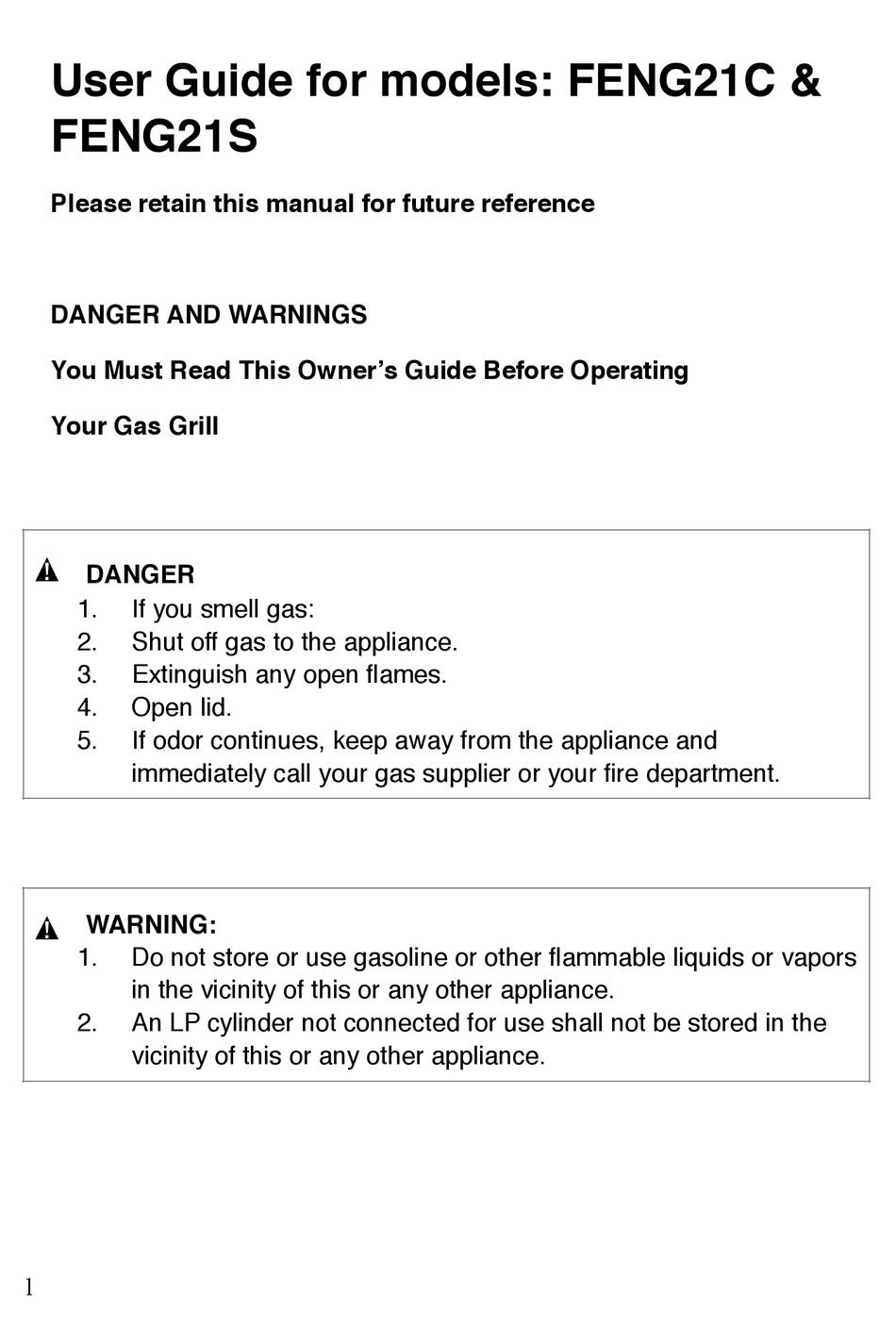

- Page 1 User Guide for models: FENG21C & FENG21S! Please retain this manual for future reference! DANGER AND WARNINGS! You Must Read This Owner’s Guide Before Operating! Your Gas Grill! DANGER! If you smell gas:! Shut off gas to the appliance. Extinguish any open flames.! Open lid.!
- Page 2 Hi.! Thank you for! choosing the! Element grill.! Here are a few! simple steps! that will get your! Element grill! sizzling in no time.! Ready. Set. Gril...
- Page 3 Museum of Art in New York and San Francisco. He is famous for challenging the status quo with designs that are fresh and unexpected. His Element by Fuego grills are no exception. Alex Siow is one of those Big Idea people: the kind of thinker who sees the proverbial forest while the rest of us are scrutinizing tree bark.
- Page 4 FENG21S! ! FENG21C! The award-winning Fuego Element is a new concept in backyard grilling. Designed for social connectedness, the host is now the center of the party and can entertain while his friends gather around the grill. The Element has a generous 346 sq.
- Page 5 DANGER AND WARNINGS! You Must Read This Owner’s Guide Before Operating! Your Gas Grill! WARNING: Leaking gas may cause a fire or explosion, which can cause serious bodily injury or death, or damage to property.! WARNING: Follow all leak-check procedures carefully in this manual prior to barbecue operation.
- Page 6 Your barbecue should never be used by children. Accessible parts of the barbecue may be very hot. Keep young children away while it is in use.! You should exercise reasonable care when operating your barbecue. It will be hot during cooking or cleaning and should never be left unattended or moved while in operation.! Should the burner go out while in operation, turn all gas valves off.
- Page 7 CALIFORNIA PROPOSITION 65 WARNING: The burning of gas cooking fuel generates some by-products which are on the list of substances known by the State of California to cause cancer and reproductive harm. California law requires businesses to warn customers of potential exposure to such substances. To minimize exposure to these substances always operate this unit according to this grill manual, ensuring you provide good ventilation when cooking with gas.
- Page 8 General Instructions! • Your Element barbecue is a portable outdoor cooking appliance. You can easily change its location in your yard or on your patio. Portability means you can take your barbecue with you if you move. Liquid Propane (LP) gas supply is easy to use and gives you more cooking control than charcoal fuel.! •...
- Page 9 For Installation In Canada! These instructions, while generally acceptable, do not necessarily comply with the Canadian Installation codes, particularly with piping above and below ground. In Canada the installation of this appliance must comply with local codes and/or Standard CSAB149.2! (Propane Storage and Handling Code)! WARNING: Your gas barbecue is not intended to be installed in or on recreational vehicles and/or boats.!
- Page 10 Storage And/Or Non Use! • The gas must be turned off at the gas shut off when the gas barbecue is not in use.! • When the gas barbecue is stored indoors, the gas supply must be DISCONNECTED.! • Check the residue tray and areas inside the storage area to ensure they are free of debris prior to use.! •...
- Page 11 ! 11...
- Page 12 ! 12...
- Page 13 Element Grill Components! ! 13...
- Page 14 Tools needed for assembly:! Phillips Screwdriver! Wrench (Included)! Lid Assembly Cast Iron Diffuser Panel Control Knob Residue Tray Grill Handle (2) Tank Storage Door Front & Rear Grill Base Wheels (4) ! 14...
- Page 15 ! 15...
- Page 16 Install wheels by hand. Tighten with wrench (provided).! A: Fasten rear panel grill base with four screws(M5)-provided.! B: Assemble tank hook to marked label with two screws (M6)- provided. (LP Unit Only) ! 16...
- Page 17 Insert AA battery (provided) with the + end into the spring on the cap.! Insert the control knob onto the control valve.! Place assembled rear door and grill base onto the control assembly with four screws (M5)- provided.! ! 17...
- Page 18 A: Insert and fasten support spine to control assembly with two screws (M5) –provided.! B: Fasten two screws(M6) to grill base! C: Now the grill can be flipped onto its wheels. ! DO NOT USE THE GRILL HANDLES TO LIFT THE GRILL.! Install front panel;...
- Page 19 A: Place diffuser panel, cast iron grate, and roasting lid on grill. Please note that the grill grate should be positioned with the “FACE DOWN” writing as the bottom side of the grate.! B: Slide residue tray into place in the space between the burner knob and below the firebowl.! You can hook the roasting lid on...
- Page 20 Gas hook up (Natural Gas)! Natural Gas: Install the provided NG hose to your house connection. The NG hose is to be installed through the bottom of the wheel base. Ensure that shut off and gas line is properly installed. Professional installation required.
- Page 21 A: For safety and convenience attach lid chain and ignition rod to roasting lid and grill.! B: Use chain hook to secure the roasting lid by looping and locking the chain hook. Then fasten the chain to the spine by using the provided screw (M6).! C: Hook ignition rod onto spine louver.
- Page 22 Lighting Instruction Manual Warning: Before Lighting, please make sure that the control knob is in the off position and the regulator assembly is in good condition! Control knob. IMPORTANT Do not leave items on or against the barbecue. Keep flammable products and sprays away. ! For outdoor use only.! SHUT DOWN INSTRUCTIONS:! Turn burner control knob to the OFF...
-
Page 23: Match Lighting
5. If ignition does not occur in 5 seconds, turn the burner control off, wait 5 minutes for any excess gas to dissipate. Repeat step 1 through 5. ! 6. After burners are lit, turn knob to the ◉ zone to operate the dual zone burners (FIG B) at 21k BTU) or ○... - Page 24 DUAL ZONE BURNERS! Element’s patented dual zone burners, offer a whole new level of control. Zone 1 is for indirect cooking, 15,000 btu/hr. Zone 2 engages both burners and is used for direct cooking at 21,000 btu/hr.! Cooking with Zone 1! The outer burner can be turned on to cook the food through convection like cooking.
- Page 25 Check all the gas connections at the base of the control valves where they screw into the manifold pipe. If you cannot stop a gas leak, turn off the gas supply and call your local gas utility or Fuego customer service at 888-88FUEGO (38346). Only those parts recommended by the manufacturer should be used on the grill.
- Page 26 WARNING:! Do not use the grill until all connections have been checked and do not leak. Check all gas supply fittings for abrasions, cracks and leaks before each use. It is recommended to keep a spray bottle filled with soapy water near the shutoff valve of the gas supply valve.
- Page 27 Maintenance! WARNING: IMPORTANT!! Before lighting, inspect the gas supply piping or hose prior to turning the gas “on”. If there is evidence of cuts, wear or abrasion, it must be replaced prior to use.! Grill Burner:! Remove grill lid, diffuser panel, grate, and burner. Remove the screws holding burner to grill body by unscrewing counter- clockwise. ...
- Page 28 Orifice Cleaning:! With burner removed remove the orifice and shine a flashlight through the opening to ensure there is no blockage. Use a needle to clear any debris. Be extremely careful not to enlarge the hole or break off the needle.! IMPORTANT: ...
- Page 29 Cleaning! Residue Tray Cleaning:! The residue tray can be washed! by hand with standard dish soap! and water and is also dishwasher! safe.! FIG. 7Cast Iron Grate And Frame! Cleaning: Clean the cast iron grate with! a wire brush.! Igniter Tip Cleaning:! If lighting the burners is difficult! you may need to clean! and adjust the igniter tip!
- Page 30 Optional Raw Cast Iron Grate (FEAUG1)! The grill comes standard with a low maintenance Porcelain Coated Cast Iron Grate. Nevertheless if you purchased the optional raw cast iron grill grate that is naturally porous and ideal for seasoning and aging, please follow the additional steps below to begin seasoning your grill grate before use.
- Page 31 Type of Meat Thick-ness Doneness Grilling Safe Internal Time* Temperature* *approx *data from USDA Beef Med Rare Boneless Rib Eye 1 in 14-18 145°F or Tenderloin 18-22 62.8°C Med Rare Boneless 1 in 14-18 145°F Sirloin Steak 18-22 62.8°C Med Rare ...
- Page 32 Limited Warranty Information:! Fuego Living LLC (“Seller”) and the person or entity that acquires these goods from Seller (“Purchaser”) hereby agree to the following terms and conditions of the sale: Shipping fees are the responsibility of the Purchaser whether freight prepaid or freight collect. Seller assumes no responsibility for the goods sold to the Purchaser once the goods have left the Seller’s...
- Page 33 invoice, which you agree to promptly pay. Title to the goods does not pass until payment is received in full by Seller and Seller retains a security interest in the goods until they are paid for in full.! This limited warranty does not cover damage due to such things as accident, misuse, abuse, mishandling, neglect, acts of God, fires, earthquakes, floods, high winds, government, war, riot or labor trouble, strikes, lockouts, delay of carrier, unauthorized repair, or any other cause...
- Page 34 Three (3) Years limited parts warranty covering the stainless burner.! For replacement parts, troubleshooting, and general inquiries please email or call us at:! Customer Service: 1.888.883.8346 1.888.88.FUEGO! Email: service@fuegoliving.com! Recycling tip:! Most of the packaging materials are recyclable. Please dispose of those materials through your local recycling depot or by placing them in appropriate collection containers.!
