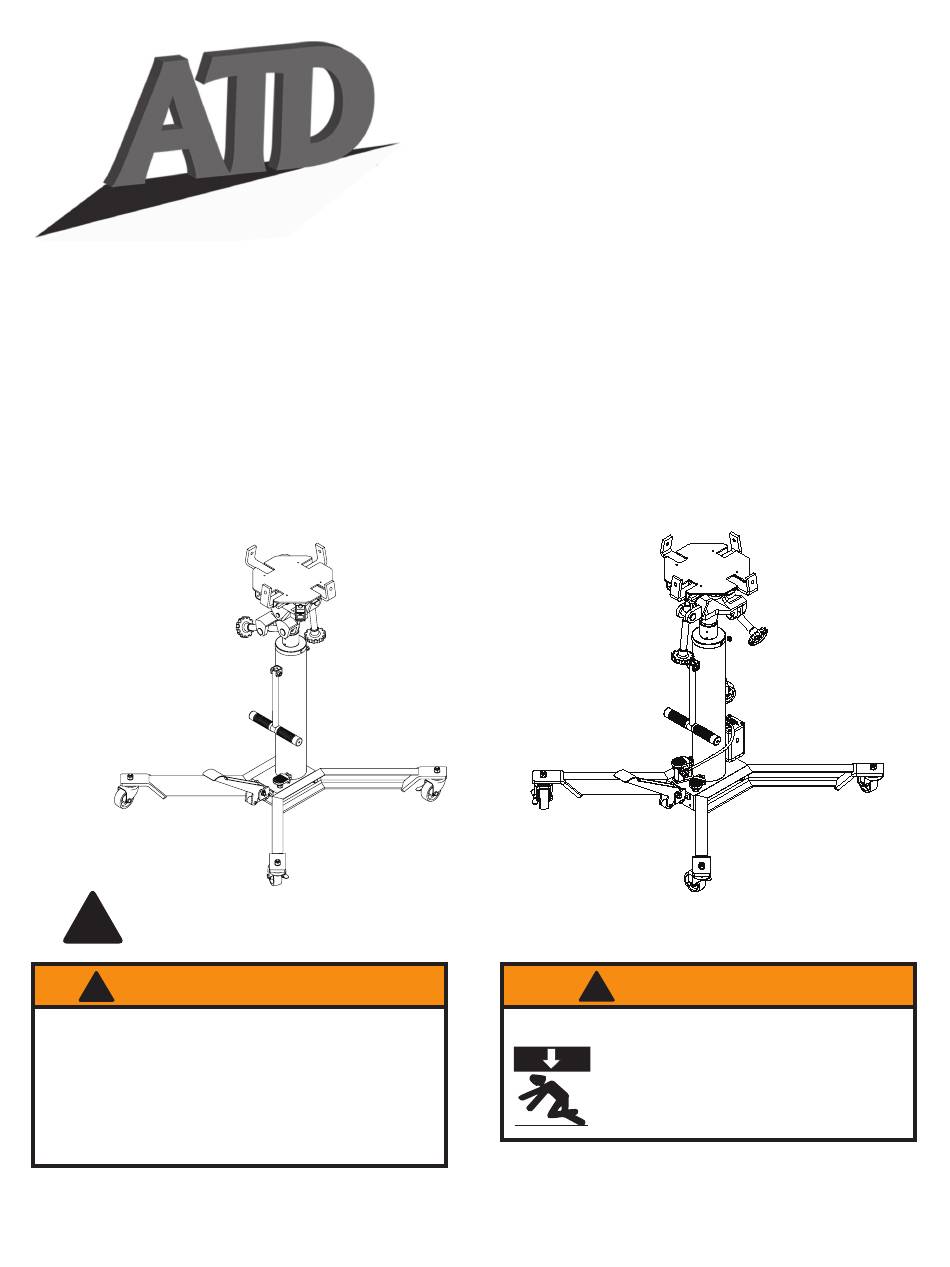

Operating Instructions & Parts Manual
Model number
atd-7430
Series a
atd-7431
Series a
Model Atd-7430
Series A
!
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
advertencia
!
• Leer, comprender, y seguir las instrucciónes antes
de utilizar el aparato.
• El manual de instrucciónes y la información de
seguridad deben estar comunicado en lengua del
operador antes del uso.
• No seguir estas indicaciónes puede causar daños
personales o materiales.
(air actuated Model)
U.S. Patent NO. 5,341,723
Atd Tools Inc.
160 Enterprise Drive, Wentzville, MO 63385

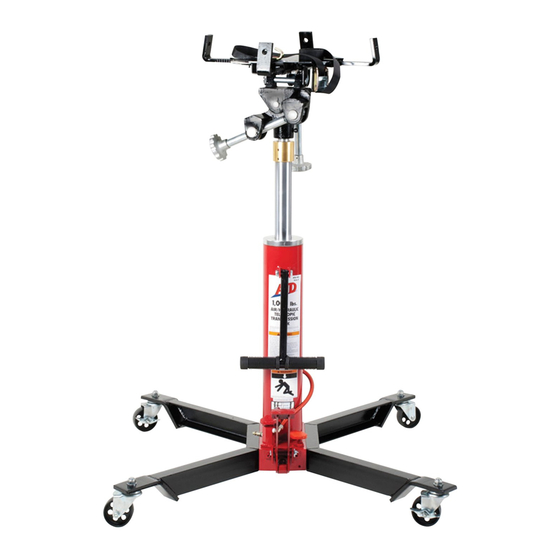

Hydraulic
transmission
Jack
capacity
1000 lbs
1000 lbs
WARNING
!
To avoid crushing and related injuries:
never work on, under or around a
load supported only by a hydraulic
jack. immediately transfer the load to
an appropriate work station.
Model Atd-7431
Series A
OIPM#7430-1010
Printed in China
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ATD Tools Atd-7430
Summary of Contents for ATD Tools Atd-7430
- Page 1 1000 lbs (air actuated Model) Series a Model Atd-7431 Model Atd-7430 Series A Series A U.S. Patent NO. 5,341,723 This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
-
Page 2: Safety And General Information
NEVER use for any purpose other than those uses outlined above! SPeciFicatiOnS Min. Max. Extended Jack Size Model Capacity Saddle Base Height Height Saddle Area (L) x (W) Atd-7430 (Series A) 1000 lb 37-3/4" 78-1/8" 8-7/8" x 7-1/8" 21" x 21" 33-5/8" x 33-5/8" Atd-7431 (Series A) - Page 3 3. Place the socket of the saddle assembly onto the ram piston. Tighten set screw on the socket. Before Use 1. Verify that the product and application are compatible, if in doubt call ATD Tools Technical Service line (636)327- 9050.
-
Page 4: Operation
WARNING • read, understand, and follow all printed material provided with and on this product before use. • do not exceed rated capacity. • Use only on hard, level surfaces. • adequately support the vehicle before starting repairs. • If loaded jack must be moved, make certain that load is secured by appropriate means, is stable, is in the lowest possible position, is moved over a smooth, hard level surface and that the lifting platform is level. -
Page 5: Maintenance
Maintenance Important: Use only good grade hydraulic jack oil. Avoid mixing different types of fluid and NEVER use brake fluid, turbine oil, transmission fluid, motor oil or glycerin. Improper fluid can cause premature failure of the jack and the potential for sudden and immediate loss of load. Mobil DTE 13M or equivalent recommended. adding oil 1. -
Page 6: Replacement Parts
Model number, serial number and description below. Call or write for current pricing: Atd Tools Inc. 160 Enterprise Drive, Wentzville, MO 63385 Tel:(636)327-9050 Fax:(636)327-9046 replacement Parts illustration for Models atd-7430 Series a and atd-7431 Series a: atd-7430 Series a... - Page 7 Parts List for Models atd-7430 Series a & atd-7431 Series a: Repair Kit Contents: Item Part No. Description Qty. Item Description Qty. G360-20000-000 Leg Assembly U-Cup, Ram G360-90030-K04 Bolt Set (4 sets) O-Ring G360-90030-K02 Caster, 3" Dia. O-Ring G360-90030-K01 Caster w/ Brake...
-
Page 8: One-Year Limited Warranty
One Year LiMited WarrantY For a period of one (1) year from date of purchase, atd tools inc. will repair or replace, at its option, without charge, any of its products which fails due to a defect in material or workmanship, or which fails to conform to any implied warranty not excluded hereby.
