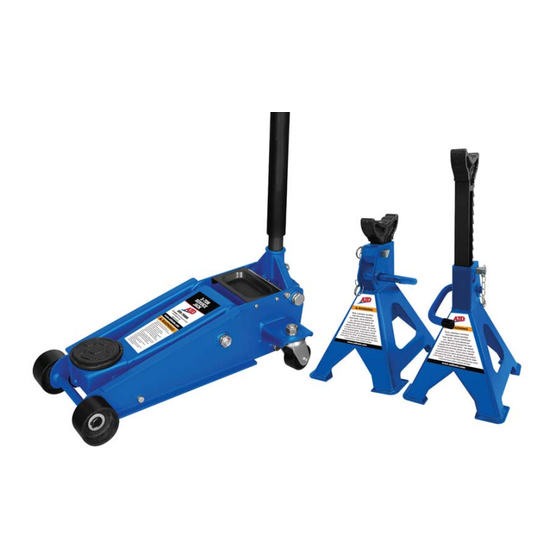

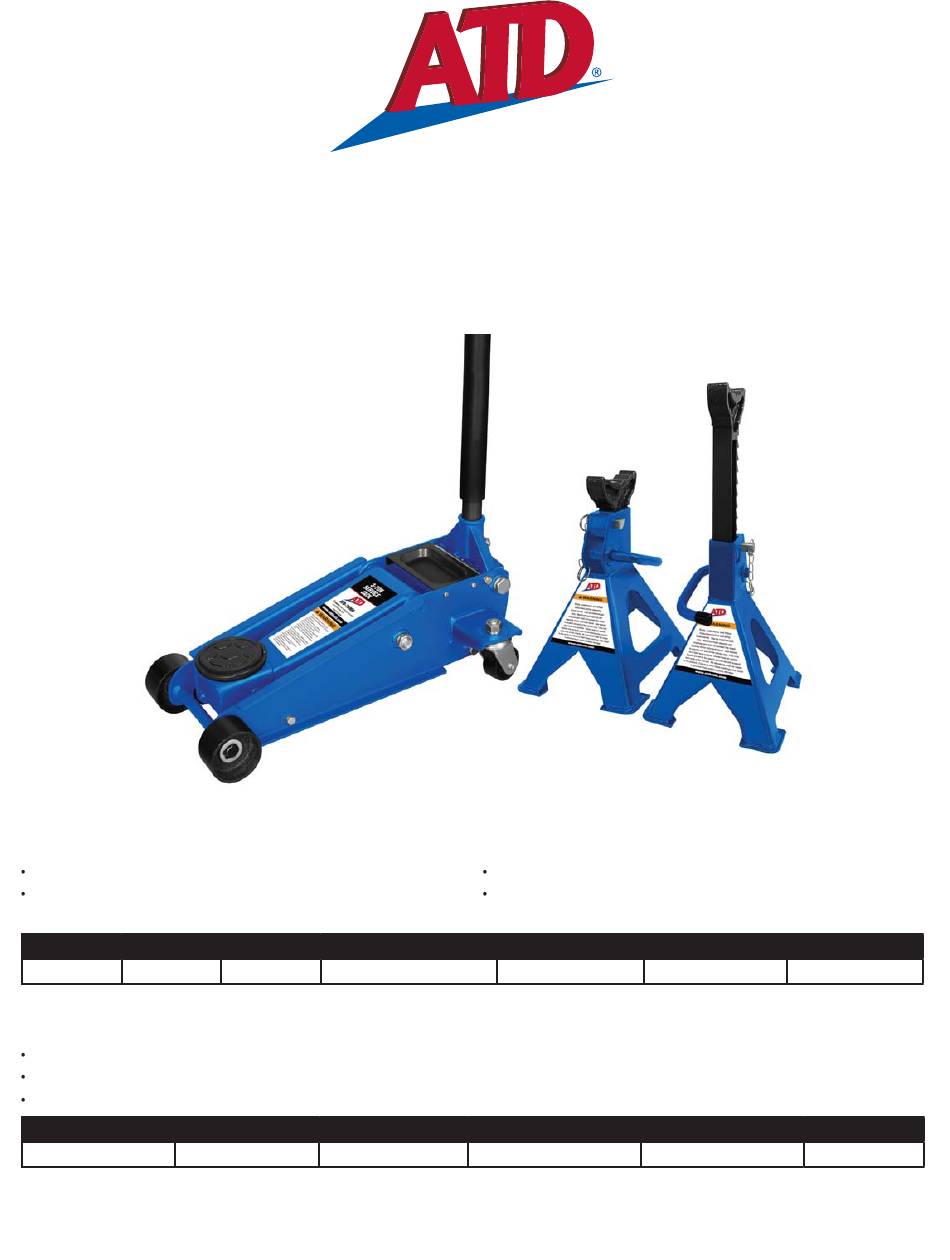

3-Ton Jack
Double pump design lifts saddle to load with just a few pump strokes
U-Joint release mechanism provides precise control of load descent
in any handle position
Capacity
Min. Height Max Height
3 Ton
4-3/4"
3-Ton Jack Stands with Safety Locking Pins
Lock pins provide added safety
Wide solid stance with welded foot for extra stability
Meets or exceeds ASME PASE 2019 standards
Capacity Per Pair
Min. Height
3 Ton
11-13/16"
ATD-7500A
3-Ton Jack Pack
Owner's Manual
Jack Size (L x W x H)
17-3/4"
23.4" x 13.3" x 6.2"
Max Height
17-1/8"
Made in China to ATD Tools, Inc. Specifications
Visit us at www.atdtools.com
Steel frame construction for added strength
Meets or exceeds ASME PASE 2019 standards
Saddle Diameter
Handle Length
4-1/4"
41-1/4"
Saddle Size
Base Size (L x W)
3-7/16" L x 15/16" W
8-1/16" L x 7-1/4" W
Net Weight
68.8 Lbs.
Net Weight
15 Lbs.
ATD7500A_rev_0924
Advertisement
Related Manuals for ATD Tools ATD-7500A
Summary of Contents for ATD Tools ATD-7500A
- Page 1 Max Height Saddle Size Base Size (L x W) Net Weight 3 Ton 11-13/16" 17-1/8" 3-7/16" L x 15/16" W 8-1/16" L x 7-1/4" W 15 Lbs. Made in China to ATD Tools, Inc. Specifications ATD7500A_rev_0924 Visit us at www.atdtools.com...
-
Page 2: Safety And General Information
ATD-7500A FLOOR JACK WARNINGS AND PRECAUTIONS This is the safety notification symbol. This symbol Indicates a hazardous situation - WARNING will notify you of any potential injury hazards. If proper steps are not followed Please follow all instructions that follow this death or serious injury could result. -
Page 3: Maintenance
PURGING AIR FROM THE HYDRAULIC SYSTEM If the jack does not raise to maximum height or the pump strokes seem irregular, there is probably air trapped in the hydraulic system: A. Turn the pump handle counterclockwise two full turns from its closed position. B. -
Page 4: Additional Safety Precautions
ATD-7500A JACK STAND WARNINGS AND PRECAUTIONS This is the safety notification symbol. This symbol Indicates a hazardous situation - WARNING will notify you of any potential injury hazards. If proper steps are not followed Please follow all instructions that follow this death or serious injury could result. - Page 5 OPERATING INSTRUCTIONS WARNING JACK STAND USE NEVER CRAWL UNDER A VEHICLE WHEN POSITIONING OR REMOVING STANDS 1. Shut off vehicle engine and put transmission in PARK, or in gear. Activate the vehicle’s emergency brake and exit the vehicle. Chock tires that will not be lifted off the ground. There should be no occupants in the vehicle when lifting or supporting the vehicle.
-
Page 6: Troubleshooting
TROUBLESHOOTING 3-TON FLOOR JACK 1. Release valve is open 1. Verify that the release valve is closed Release valve may need cleaning bleed system 3. Air trapped in hydraulic system 3. Follow the purge air procedure on pg. 3 Jack does not lift 4. -
Page 7: Replacement Parts
REPLACEMENT PARTS Not all components of this product are replacement items, but are illustrated as a convenient reference for position in the assembly sequence. When ordering parts, give model number, part number and description. Call your distributor for current pricing: ITEM# ORDERING PART# PART DESCRIPTION... -
Page 8: Year Limited Warranty
Your ATD-7500A is warranted for a period of 12 months from the original purchase date. For a period of one (1) year from your purchase date, ATD Tools, Inc. will repair or replace (at its option) without charge, your ATD product if it was purchased new and the product has failed due to a defect in material or workmanship which you experienced during normal use of the product.
