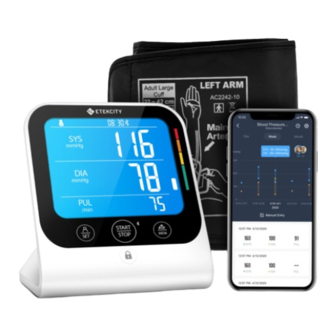

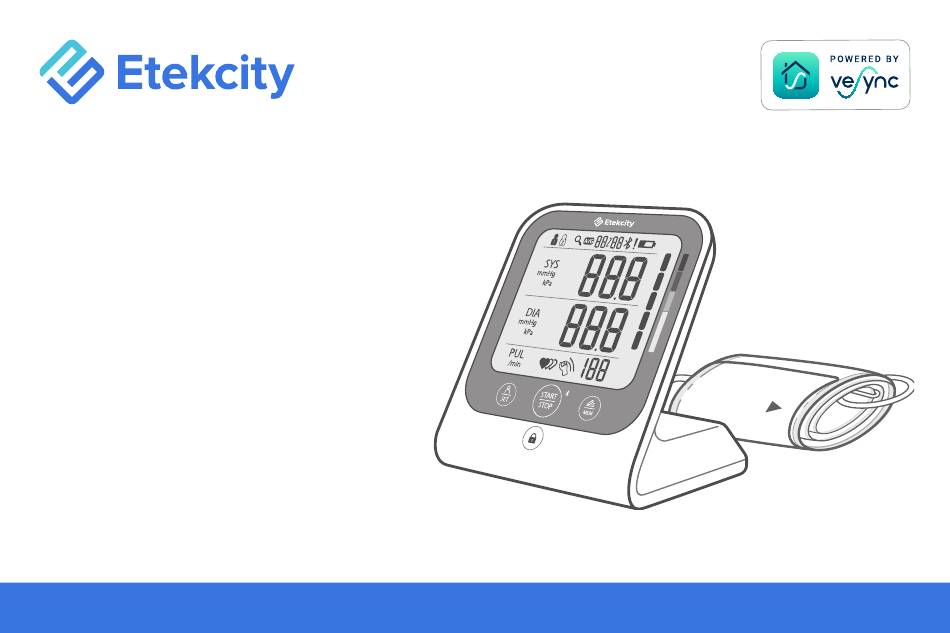

- Page 1 Smart Blood Pressure Monitor Model: TMB-1583-BS User Manual Questions or Concerns? support@etekcity.com • (855) 686-3835...
-
Page 2: Table Of Contents
Table of Contents Package Contents Measuring Blood Pressure Specifications • When to Take Blood Pressure Features • Before Measurement Safety Information Using the Blood Pressure Monitor Glossary of Symbols • Attaching the Cuff Getting to Know Your Blood • Measuring Blood Pressure Pressure Monitor •... -
Page 3: Package Contents
Package Contents Specifications 1 x Smart Blood Pressure Monitor 4 x 1.5V AAA batteries Power Supply 1 x AC Adapter DC Output: 6V, 1A 1 x Arm Cuff Model: TRANSTEK 4 x 1.5V AAA Batteries BLJ06L060100P-U 1 x User Manual Input: AC 100–240V 1 x Quick Start Guide AC Adapter... - Page 4 Specifications (cont.) Degree of Units mmHg / kPa Protection (Arm Type BF Applied Part Temperature: 41°–104°F / 5°–40°C Cuff) Relative Humidity: 15–90%, IP21 (It means the device could non-condensing, but not requiring Operating be protected against solid foreign a water vapour partial pressure Water Protection Environment objects of 12.5mm Ф...
-
Page 5: Features
Features • Blood pressure measurement • Pulse rate measurement • Result storage • 90 records per user (unlimited records in the VeSync app) • Measurement during inflation • Readings taken by this monitor are equivalent to those obtained by a trained observer using the cuff and stethoscope auscultation method •... -
Page 6: Safety Information
Indications for Use: • This Blood Pressure Monitor TMB-1583-BS is a digital monitor intended for use in measuring blood pressure and heartbeat rate with arm circumference ranging from 22 cm to 42 cm. The device can be used to detect irregular heartbeat. - Page 7 • This monitor is not intended for public use. Safety Information (cont.) Household use only. • If the arm cuff causes any discomfort, • This monitor is intended for non-invasive immediately press to turn off the measuring and monitoring of arterial monitor.
- Page 8 basis of a self-measurement. Consult your - Using the cuff on any arm where physician if you have any questions about intravascular access or therapy, or an your blood pressure. arterio-venous (A-V) shunt, is present • When this monitor is used to measure - Inflating the cuff on the side of a patients who have common arrhythmias mastectomy...
- Page 9 • When measuring, please avoid compression • This monitor may be used only for the or restriction of the connection tubing. purpose described in this booklet. The manufacturer cannot be held liable for • The monitor cannot be used with HF surgical damage caused by incorrect application.
- Page 10 avoid using in the presence of a strong • If the cuff pressure reaches 40 kPa / 300 electromagnetic field radiated interference mmHg, the cuff will automatically deflate. signal or an electrical fast transient/burst Should the cuff not deflate when pressure signal.
- Page 11 by retesting at least the requirements in • Cleaning: Dust may affect the performance the limits of the error of the cuff pressure of the unit. Use a soft cloth to clean every indication and air leakage (testing at least at part of the monitor and cuff before and 50 mmHg and 200 mmHg).
- Page 12 to cables and hoses, particularly due to accessories may cause damage to the excessive length. monitor or danger to the users/patients. • At least 30 min are required for ME • There are no luer lock connectors used in equipment to warm from the minimum the construction of tubing.
-
Page 13: Glossary Of Symbols
It means the device could be protected against Glossary of Symbols IP21 solid foreign objects of 12,5mm Ф and greater, and against vertically falling water drops. These symbols might be in the user manual, labelling, or other components. Symbol for “TYPE BF APPLIED PARTS” Symbol for “ENVIRONMENT PROTECTION”... -
Page 14: Getting To Know Your Blood Pressure Monitor
Getting to Know Your Blood Pressure Monitor The Etekcity Smart Blood Pressure Monitor is a digital monitor intended for use in measuring blood pressure and heartbeat rate with an arm circumference of 8.6–16.5 inch / 22–42 cm. Blood pressure monitors use the oscillometric method of measuring blood pressure. -
Page 15: Function Diagram
Function Diagram Display Cuff Adapter Air Plug Air Hose Set Button Lock Button Start/Stop Button Memory Button Battery Compartment DC Power Socket Air Connector Plug... -
Page 16: Lcd Display
LCD Display User 1 / User 2 Memory Average Value (Last 3 Records) Current Time Bluetooth Icon Bluetooth Connection Low Battery Systolic Blood Pressure (High Blood Pressure) mmHg Measurement Unit kPa Measurement Unit Diastolic Blood Pressure (Low Blood Pressure) Pulse (Beats Per Minute) Irregular Heartbeat Motion Indicator Blood Pressure Level... -
Page 17: Power Supply Information
Installing and Replacing Power Supply the Batteries Information Batteries: 4 x 1.5V DC AAA Batteries Note: Turn the monitor off before replacing the AC Adapter: 6V DC 1A batteries. • Please use the AC adapter authorized by the Open the battery compartment cover. manufacturer. -
Page 18: Before First Use
Before First Use Installing and Replacing the Batteries (Cont.) Replace the batteries when: Setting Date, Time, and Measurement Unit • appears on the display. • The display is dim. Set the clock before using your blood pressure monitor so that your blood pressure records will have •... - Page 19 Setting Date, Time, and Measurement Unit (Cont.) When the monitor is off, press and hold the Press the button to change the year. button to change settings.
- Page 20 Setting Date, Time, and Measurement Unit (Cont.) Repeat steps 2 and 3 to set the month and day. When you have selected the right year, press to confirm and continue to setting the month and day.
- Page 21 Setting Date, Time, and Measurement Unit (Cont.) Repeat steps 2 and 3 to set the hour and minute. Repeat steps 2 and 3 to set the measurement unit.
- Page 22 Setting Date, Time, and Measurement Unit (Cont.) Repeat steps 2 and 3 to choose whether the After the beep is set, the display will show monitor will beep. “ ”, then show all the settings you have selected, and then turn off.
-
Page 23: Selecting A User
Selecting a User Press again to switch between User 1 and When the monitor is off, press once to choose User 2. a user. The User ID will blink. After selecting the User ID, press to start measuring, or press to display previous measurement records. -
Page 24: Pairing The Monitor With The Vesync App
Pairing the Monitor With the VeSync App VeSync App Setup Note: Due to ongoing updates and improvements, the VeSync app may appear slightly different than shown in the manual. In case of any differences, follow the in-app instructions. To download the VeSync app, scan the QR code or search “VeSync”... -
Page 25: Configuration
Configuration Set up your smart blood pressure monitor with the VeSync app. Log In Sign Up Open the VeSync app. Make sure Bluetooth is When the monitor is off, press and hold turned on in your phone settings. start pairing your monitor with VeSync. The monitor display will show... - Page 26 Configuration (Cont.) Follow the in-app instructions to set up your If setup is successful, the monitor display will monitor. show and [ ] . If setup fails, the monitor display will show...
- Page 27 Configuration (Cont.) Caution: • Interference may occur in the vicinity of equipment marked with the following symbol: This monitor may interfere with nearby electrical equipment. • Sensitive patients, including pre-eclamptic pregnant patients and patients with implanted medical electronic instruments, should avoid using the monitor whenever possible.
-
Page 28: Data Transmission
Data Transmission Measuring Blood Pressure • To enable the data transmission function, this product should be paired with the VeSync app. When to Take Blood Pressure • To decrease possible interference: • Your monitor and your phone should be • The best times to take your blood pressure are reasonably close, within 3–32 ft / 1–10 m. -
Page 29: Before Measurement
Before Measurement Caution: • Do not measure blood pressure until at least 30 • If the monitor is being used by multiple people, minutes after physical activity. Do not smoke or wash hands before each measurement. drink stimulating beverages, such as coffee or •... -
Page 30: Using The Blood Pressure Monitor
Using the Blood Pressure Monitor Attaching the Cuff Rest in a comfortable position for at least 5 0.8–1.2 in / 2–3 cm minutes before measuring to ensure the best results. Plug the air plug into the air port. Make sure the air plug is completely inserted to avoid air leaking. - Page 31 Using the Blood Pressure Monitor (Cont.) Note: • Avoid flexing arm muscles or trying to support yourself on your arm, as this can increase blood pressure. Use a cushion for support if necessary. • For patients with hypertension, the middle of the cuff should be at the level of the right atrium of the heart.
-
Page 32: Measuring Blood Pressure
Using the Blood Pressure Monitor (Cont.) Measuring Blood Pressure Note: • Press at any time to stop measuring. When the monitor is off, press . This will turn on the monitor and it will automatically begin • If the cuff causes any increased discomfort, measuring. -
Page 33: Measurement Tips
Using the Blood Pressure Monitor (Cont.) Measurement Tips Measurements may be inaccurate if taken in the following circumstances: • Within 1 hour after eating or drinking • Immediately after tea, coffee, or smoking • Within 20 minutes of taking a bath •... -
Page 34: Other Functions
Other Functions Example Readout Memory Result Result Result Number Date Time Results are automatically saved after each measurement. The monitor can save up to 90 results for each user. The VeSync app can store unlimited results. Note: The most recent result (01) is shown first. Each new measurement is assigned to the first (01) To view saved results: result. -
Page 35: Lock Button
Lock Button Press to confirm deletion. Note: To cancel deletion, press instead. Accidentally touching the buttons will make the monitor turn on and waste electricity. To avoid this, use the button to lock the keys. To delete all saved results: When the monitor is off, press While the monitor is off, press to display... -
Page 36: Maintenance
About Blood Pressure Maintenance • Put in a dry place and avoid sunshine. What are systolic pressure and diastolic pressure? • Avoid exposing to water. Clean with a dry cloth. • Use a damp cloth to clean if necessary. When ventricles contract and pump blood out of the •... - Page 37 Using the Blood Pressure Monitor (Cont.) Systolic mmHg Diastolic mmHg Blood Pressure Category (upper #) (lower #) Normal Less than 120 Less than 80 Elevated 120–129 Less than 80 High Blood Pressure (Hypertension) 130–139 80–89 Stage 1 High Blood Pressure (Hypertension) 140 or higher 90 or higher Stage 2...
- Page 38 Using the Blood Pressure Monitor (Cont.) Irregular Heartbeat Detector cardiac examination, but serves to detect pulse irregularities at an early stage. An irregular heartbeat is detected when a heartbeat rhythm varies while the monitor is measuring Why does my blood pressure fluctuate systolic pressure and diastolic pressure.
- Page 39 Using the Blood Pressure Monitor (Cont.) Why do I get a different blood pressure at What you need to pay attention to when you home compared to the hospital? measure your blood pressure at home: Your blood pressure is different throughout the day •...
-
Page 40: Troubleshooting Display Readings
Troubleshooting Display Readings Symbol Solution Display will not turn on Replace batteries. Make sure the batteries and AC adapter are inserted correctly. Display is dim or shows Replace batteries. “ ” The cuff is too tight or too loose. Refasten the cuff, then measure again. The monitor detected motion or talking, or the pulse is too poor while measuring. - Page 41 Symbol Solution Remove the arm cuff and wait 2–3 minutes before taking another measurement. If this error continues to appear, contact your physician. This error message means “Out of measurement range”. Remove the arm “OUT” cuff. Relax for a moment, refasten the cuff, then measure again. If this error continues to appear, contact your physician.
-
Page 42: Attributions
Amazon.com, Inc. or its affiliates. The Bluetooth word mark and logos are registered ® trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Etekcity Corporation is under license. Other trademarks and trade names are those of their respective owners. -
Page 43: Federal Communication Commission Interference Statement
Etekcity Corporation hereby declares that this equipment is in compliance with the FCC rules. •... -
Page 44: Emc Guidance
EMC Guidance This ME EQUIPMENT or ME SYSTEM is suitable for Warning: Portable RF communications equipment home healthcare environments. (including peripherals such as antenna cables and external antennas) should be used no closer than 12 inch / 30 cm to any part of this equipment, including Warning: Don’t be near the active HF surgical cables specified by the manufacturer. - Page 45 Table 1 Guidance and Manufacturer’s Declaration – Electromagnetic Emission Emissions Test Compliance RF emissions Group 1 CISPR 11 RF emissions Class [ B ] CISPR 11 Harmonic emissions Class A IEC 61000-3-2 Voltage fluctuations/ flicker emissions Comply IEC 61000-3-3...
- Page 46 Table 2 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity Immunity Test IEC 60601-1-2 Test level Compliance Level Electrostatic ±8 kV contact ±8 kV contact discharge (ESD) ±2 kV, ±4kV, ±8 kV, ±2 kV, ±4kV, ±8 kV, ±15 kV air IEC 61000-4-2 ±15 kV air Electrical fast ±2 kV for power supply lines...
- Page 47 Table 2 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity Immunity Test IEC 60601-1-2 Test level Compliance Level Power frequency 30 A/m 30 A/m magnetic field 50 Hz / 60 Hz 50 Hz / 60 Hz IEC 61000-4-8 0,15 MHz – 80 MHz 0,15 MHz –...
- Page 48 Table 3 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity Maximum IEC 60601-1-2 Compliance Test Distance Band Frequency Service Modulation Power Test Level Level (MHz) (MHz) (V/m) (V/m) Radiated RF IEC610004-3 Pulse modulation (Test 380-390 TETRA 400 18 Hz specifications for ENCLOSURE PORT IMMUNITY to RF FM ±...
- Page 49 Table 3 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity Maximum IEC 60601-1-2 Compliance Test Distance Band Frequency Service Modulation Power Test Level Level (MHz) (MHz) (V/m) (V/m) Radiated RF GSM 800/900, IEC610004-3 Pulse TETRA 800, (Test 800-960 iDEN 820, modulation specifications for CDMA 850, 18 Hz...
- Page 50 Table 3 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity Maximum IEC 60601-1-2 Compliance Test Distance Band Frequency Service Modulation Power Test Level Level (MHz) (MHz) (V/m) (V/m) Radiated RF IEC610004-3 Bluetooth, WLAN, (Test Pulse 2400- 802.11 b/g/n, specifications for 2450 modulation 2570 RFID 2450,...
-
Page 51: Warranty Information
Warranty Policy, Etekcity will, in its sole and exclusive Product Name Smart Blood Pressure Monitor discretion, either (i) refund the purchase price if the purchase was made directly from the online Etekcity store, (ii) repair any Model TMB-1583-BS defects in material or workmanship, (iii) replace the product... - Page 52 Etekcity or • Damages or defects occurring during commercial use, its authorized dealers. rental use, or any use for which the product is not intended. • If the unit has been damaged, including but not limited...
- Page 53 STATEMENT. THIS LIMITED WARRANTY IS EXCLUSIVE, PRICE PAID BY THE PURCHASER FOR SUCH PRODUCTS, OR AND IN LIEU OF ALL OTHER WARRANTIES. NO EMPLOYEE OF ETEKCITY CORPORATION OR ANY OTHER PARTY IS (b) INDIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR AUTHORIZED TO MAKE ANY WARRANTY IN ADDITION...
- Page 54 OTHER RIGHTS YOU MAY HAVE This warranty is made by: SOME JURISDICTIONS DO NOT ALLOW FOR: (1) Etekcity Corporation EXCLUSION OF IMPLIED WARRANTIES; (2) LIMITATION 1202 N. Miller St., Suite A ON THE DURATION OF IMPLIED WARRANTIES; AND/ Anaheim, CA 92806 OR (3) EXCLUSION OR LIMIATION OF INCIDENTAL OR CONSEQUANTIAL DAMAGES;...
-
Page 55: Customer Support
Customer Support If you have any questions or concerns about your new product, please contact our helpful Customer Support Team. Distributed by Etekcity Corporation Support Hours 1202 N. Miller St., Suite A Anaheim, CA 92806 Monday—Friday 9:00 am —5:00 pm PST/PDT Email: support@etekcity.com... - Page 56 A8-01.05_D_23E29_us...
