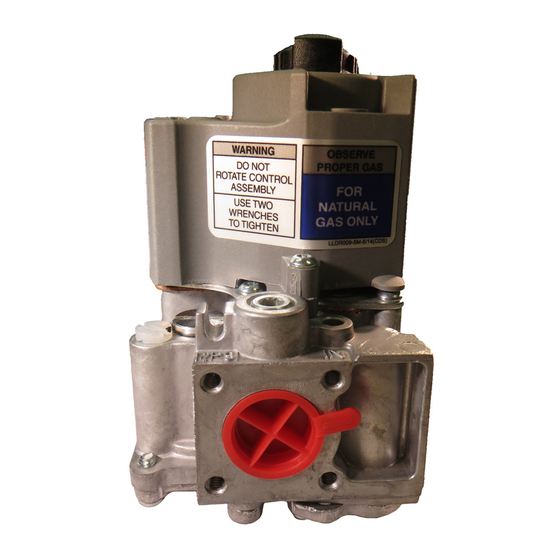

VR4205 Direct Ignition Combination
Gas Controls
APPLICATION
These direct ignition gas controls are used in gas-fired
appliances with up to 200 cfh capacity on natural gas.
They include safety shutoff, a manual valve, two
automatic operators, pressure regulator, pilot
adjustment and a conduit cover. See Table 1 for
temperature ranges and regulator types.
BODY PATTERN: Straight through with 1/2 in. inlet and
1/2 in. outlet.
PIPE ADAPTERS: Angle and straight adapters available
for 3/8, 1/2 and 3/4 in. pipe. See Table 2. Flange kits
include one flange with attached O-ring, four mount-
ing screws, a 9/64 in. hex wrench and Instructions.
ELECTRICAL RATINGS:
Voltage and Frequency: 120 Vac, 60 Hz.
Thermostat Heat Anticipator Setting: 0.1A
Current Draw: 0.1A
These gas controls are factory-set for natural (and
manufactured) gas or LP gas. Do not attempt to use a
control set for natural (manufactured) gas on LP gas, or
a control set for LP on natural (manufactured) gas.
Controls with standard or slow opening regulators can
be converted from one gas to the other with a
conversion kit (ordered separately). Order part no.
393691 to convert from natural (manufactured) to LP
gas; order part no. 394588 to convert from LP gas to
natural (manufactured) gas. Controls with step opening
regulators cannot be converted.
INSTALLATION INSTRUCTIONS
Table 1. Model Number Suffix Letter Designation
Model No.
Suffix Ambient
Letter Temperature Range
H 0° F to 175° F
[-18° C to 79° C]
M -40° F to 175° F
[-40° C to 79° C]
P
Table 2. Adapter (Flange) Part Numbers
Inlet/Outlet Flange
Pipe Size Type
Straight
3/8 in. NPT
Elbow
Straight
1/2 in. NPT
Elbow
Straight
3/4 in. NPT
Elbow
NOTE: Flange Kits include one flange with attached O-
ring and four mounting screws.
APPROVALS:
American Gas Association design certificate:
UP-70-57A.
Canadian Gas Association design certificate:
1029-CC-8375.
Australian Gas Association certificate: 4214.
Approved for Delta C applications.
INSTALLATION
When Installing This Product...
1. Read these instructions carefully. Failure to follow
them could damage the product or cause a haz-
ardous condition.
2. Check the ratings given in the instructions and on
the product to make sure the product is suitable
for your application.
3. Installer must be a trained, experienced service
technician.
4. After installation is complete, check out product
operation as provided in these instructions.
Regulator Type
Slow-opening
Standard
Step-opening
Part No.
Without Hex With Hex
Wrench Wrench
393690-1 393690-11
393690-2 393690-12
393690-6 393690-16
393690-3 393690-13
393690-4 393690-14
393690-5 393690-15
69-0694-02
