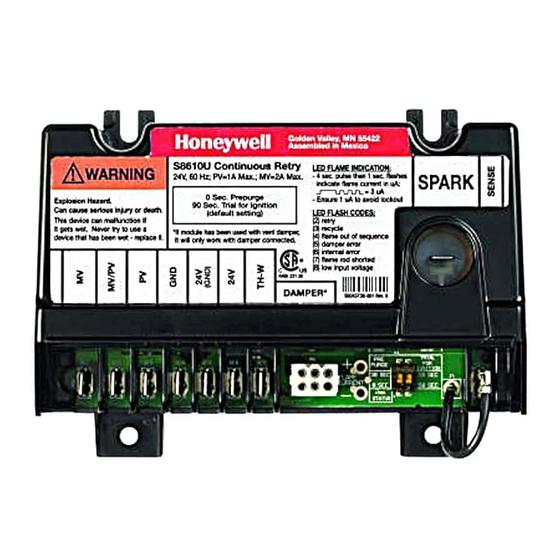

S8600B,C,H,M; S8610B,C,H,M;
S8670D,E,J,K Intermittent Pilot Gas
Ignition Control
APPLICATION
The S8600 family of ignition controls provide ignition sequence, flame monitoring and safety shutoff for intermittent
pilot gas fired heating appliances. These controls provide flame sense and operating sequences suitable for the
application.
Table 1 describes the main features of each available model.
Model
Igniter-Sensor Type
S8600B
b
Separate
S8600C
Separate
S8600H
c
Combination
S8600M
Combination
S8610B
Separate
S8610C
Separate
S8610H
Combination
S8610M
Separate
S8670D
Combination
S8670E
Combination
S8670J
Separate
S8670K
Separate
a
Trial for Pilot Ignition timing dependent on model ordered
b
Separate: two rod; remote flame sensing.
c
Combination: one rod; local flame sensing.
All models provide:
• Natural or LP gas.
• Pilot burner ignition using a high voltage spark.
• Flame rectification circuit to monitor flame presence.
• Monitoring of 24 Vac, pilot, and main gas valve.
• LED indicator for flame presence/strength and
system status/errors.
• Connections for flame reading via standard micro-
ammeter or voltmeter.
SPECIFICATIONS
Control Voltage: 24V (18-30 Vac) 50/60 Hz
Current Draw: 0.1 A plus valve load @ 24Vac
Trial for Ignition: Dependant on model ordered.
Prepurge: See Table 1.
Table 1. Intermittent Pilot Ignition Models.
Valve Current Rating @ 24 Vac
1.0 A Pilot and 1.0 A Main
1.0 A Pilot and 1.0 A Main
1.0 A Pilot and 1.0 A Main
1.0 A Pilot and 1.0 A Main
1.0 A Pilot and 2.0 A Main
1.0 A Pilot and 2.0 A Main
1.0 A Pilot and 2.0 A Main
1.0 A Pilot and 2.0 A Main
1.0 A Pilot and 2.0 A Main
1.0 A Pilot and 2.0 A Main
1.0 A Pilot and 2.0 A Main
1.0 A Pilot and 2.0 A Main
INSTALLATION INSTRUCTIONS
Prepurge Timing
None
None
None
None
None
None
None
None
30 seconds
30 seconds
30 seconds
30 seconds
Ignition Sequence: See figures 10 and 11.
Retry Delay: 5 minutes (C, M, E, and K models only)
Flame Failure Response Time: 2 seconds maximum
LED: The green status LED provides system status, error
codes, and flame strength indication when in run
mode.
Gas Control: Resideo models VR8204 and VR8304
Operating Temperature:
Minimum ambient temperature rating is -40°F
(-40°C).
Maximum ambient rating for S8600 used with 1.0A main
valve is 175°F (79°C).
Maximum ambient rating for S8610 and S8670 used with
2.0A main valve is 165°F (74°C).
Relative humidity: 0% to 95% noncondensing
Approvals: UL 60730-1, UL60730-2-5
a
Ignition Sequence Type
Lockout
Continuous Retry
Lockout
Continuous Retry
Lockout
Continuous Retry
Lockout
Continuous Retry
Lockout
Continuous Retry
Lockout
Continuous Retry
69-1954-05
