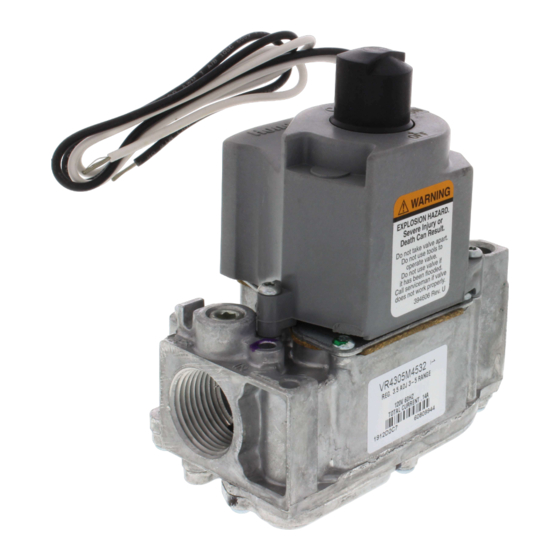

VR4305 Direct Ignition Combination
Gas Control
APPLICATION
These direct ignition combination gas controls are used
in gas-fired appliances with capacities up to
3
300 feet
/hour at 1 inch wc pressure drop
3
[8.5 meters
/hour at 0.25 kPa] for natural gas. They
include a manual valve, two automatic operators, a
pressure regulator, and a conduit cover. The ambient
temperature range for the standard-opening model
(VR4305M) is -40° to 175° F [-40° to +79° C].
Body Pattern: Straight-through.
Capacity:
Size (Inlet x Outlet)
1/2 x 1/2
240 feet
1/2 x 3/4
270 feet
3/4 x 3/4
300 feet
a
Capacity based on 1000 Btu/feet
0.64 specific gravity natural gas at 0.25 kPa pressure drop].
Use conversion factors in Table 1 to convert capacities
for other gases.
Table 1. Gas Capacity Conversion Factors.
Gas
Specific Gravity
Manufactured
0.60
Mixed
0.70
Propane
1.53
Table 2. Adapter (Flange) Part Numbers.
Inlet/Outlet
Pipe Size
Flange Type
1/2 inch NPT
Straight
Elbow
3/4 inch NPT
Straight
Elbow
Capacity (at 1 inch wc pressure
a
drop)
3
3
/hour [6.8 meter
/hour]
3
3
/hour [7.6 meter
/hour]
3
3
/hour [8.5 meter
/hour]
3
, 0.64 specific gravity natural gas at 1 inch wc pressure drop [37.3 MJ/meter
Multiply Listed
Capacity By
0.516
0.765
1.62
Part Number
Without Hex
With Hex
Wrench
Wrench
393690-6
393690-16
393690-3
393690-13
393690-4
393690-14
393690-5
393690-15
INSTALLATION INSTRUCTIONS
Inlet x Outlet Sizes Available: 1/2 x 3/4 inch and
3/4 x 3/4 inch
This gas control comes with two 3/4 inch NPT to
1/2 inch NPT bushings and one 1/2 inch NPT to
3/8 inch NPT bushing. Also included is a 393691 nat-
ural gas to LP gas conversion kit.
Adapters: Adapters available for 1/2 and 3/4 inch
straight and angle connections. Refer to Table 2.
Electrical Ratings:
Voltage and Frequency: 120 Vac, 60 Hz.
Thermostat Heat Anticipator Setting: 0.14A.
Current Draw: 0.14A.
Minimum Regulated Capacity
3
3
30 feet
/hour [0.8 meter
/hour]
3
3
30 feet
/hour [0.8 meter
/hour]
3
3
30 feet
/hour 0.8 meter
/hour]
NOTE:
Flange Kits include one flange with attached
O-ring and four mounting screws.
Approvals:
American Gas Association design certificate:
L2025007.
Canadian Gas Association design certificate:
L2025007.
Australian Gas Association approved.
Delta C.
INSTALLATION
When Installing this Product...
1. Read these instructions carefully. Failure to follow
them could damage the product or cause a haz-
ardous condition.
2. Check the ratings given in the instructions and on
the product to make sure the product is suitable
for your application.
3. The installer must be a trained, experienced ser-
vice technician.
4. After installation is complete, use these instruc-
tions to check out product operation.
Maximum Regulated Capacity
3
3
340 feet
/hour [9.6 meter
3
370 feet
/hour [10.5 meter
3
415 feet
/hour [11.8 meter
69-0837-01
/hour]
3
/hour]
3
/hour]
3
,

Advertisement

loading
Need help?

Need help?

Do you have a question about the VR4305 and is the answer not in the manual?

Questions and answers

Summary of Contents for resideo VR4305

  • Page 1 VR4305 Direct Ignition Combination Gas Control INSTALLATION INSTRUCTIONS Inlet x Outlet Sizes Available: 1/2 x 3/4 inch and APPLICATION 3/4 x 3/4 inch This gas control comes with two 3/4 inch NPT to These direct ignition combination gas controls are used...
  • Page 2 VR4305 DIRECT IGNITION COMBINATION GAS CONTROL Bushings WARNING 1. Remove seal over gas control inlet or outlet. 2. Apply moderate amount of good quality pipe com- Fire or Explosion Hazard pound to bushing, leaving two end threads bare. Can cause property damage, severe injury, or See Fig.
  • Page 3 VR4305 DIRECT IGNITION COMBINATION GAS CONTROL Install Piping to Gas Control Table 3. NPT pipe thread length in (in.). All piping must comply with applicable codes and Thread Pipe Maximum Depth Pipe can ordinances or with the National Fuel Gas Code (ANSI...
  • Page 4: Startup And Checkout

    Gas controls are shipped with the gas control M3088 ALTERNATE LIMIT CONTROLLER LOCATION. knob in the ON position. Fig. 6. VR4305 wiring connections in a 120V Direct Turn On System Ignition System. Rotate the gas control knob counterclockwise 4. Make sure the conduit cover is in position and secured to the gas valve with the screw provided.
  • Page 5 VR4305 DIRECT IGNITION COMBINATION GAS CONTROL Perform Gas Leak Test Standard-Opening Pressure Regulator 1. The gas control outlet pressure should match the manifold pressure listed on the appliance name- WARNING plate. 2. With the main burner operating, check the gas con-...
  • Page 6: Maintenance

    VR4305 DIRECT IGNITION COMBINATION GAS CONTROL Table 4. Pressure Regulator Specification Pressures in Inches WC. Outlet Pressure Nominal Factory Outlet Setting Adjustment Setting Range Nominal Inlet Model Type of Gas Pressure Range Full Rate Full Rate Standard-opening Natural 5.0 - 7.0 3.0 - 5.0...
  • Page 7: If You Smell Gas

    VR4305 DIRECT IGNITION COMBINATION GAS CONTROL IMPORTANT: Instructions To The Homeowner (For Follow the operating instructions provided by Your Safety, Read Before Operating) the manufacturer of your heating appliance. The information below will be of assistance in a typ- ical gas control application, but the specific...
  • Page 8 Resideo Technologies, Inc. 1985 Douglas Drive North, Golden Valley, MN 55422 1-800-468-1502 69-0837—01 M.S. Rev. 06-20 | Printed in United States www.resideo.com © 2020 Resideo Technologies, Inc. All rights reserved. This product is manufactured by Resideo Technologies, Inc. and its affiliates.
