VK41..V(B)(E)/VK81 .V . (B)(E) SERIES

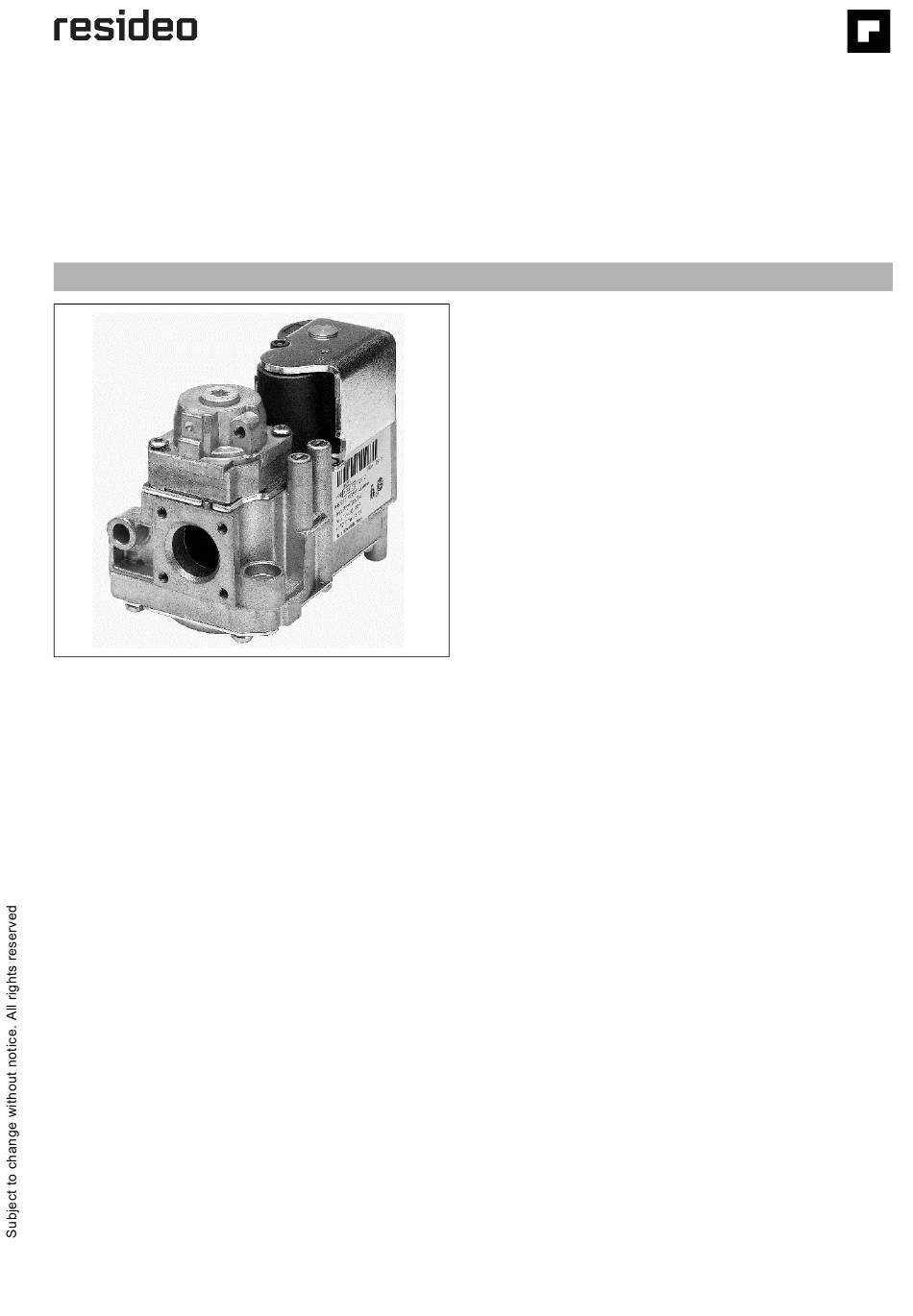

GAS CONTROLS WITH INTEGRATED 1:1 GAS/AIR REGULATOR FOR
COMBINED VALVE AND IGNITION SYSTEM
INSTRUCTION SHEET

APPLICATION

The VK41..V(B)(E)/VK81..V(B)(E) series gas controls with
1:1 gas/air regulator have been developed for application in
domestic appliances with premix burners and automatic
ignition.
For this system, the VK41..V series gas controls have been
designed to have the S4565 series ignition control attached
directly onto the valve.
The combined system then provides programmed safe light
up, flame supervision and regulation of gas flow to the main
burner of the appliance.
The VK41..V(B)(E)/VK81..V(B)(E) series can as well be
used as stand alone in direct burner applications. The plug
(order number 45.900.441-) with integrated rectifier circuit
then has to be used.
The VK41..V(B)(E)/VK81..V(B)(E) series are used in a
system context in conjunction with fan control and a direct
spark ignition (DSI) control.
The VK41..V(B)(E)/VK81..V(B)(E) series are approved in
accordance with european standards.

DESCRIPTION

VK41..V(B)(E)/VK81..V(B)(E) gas controls perform all the
functions required to safely regulate gas flow to the main
burner of domestic central heating equipment, warm air
furnaces, back boilers and water heaters.
VK41..V(B)(E)/VK81..V(B)(E) gas controls hold a first
electric on/off direct operator for opening the safety valve of
class B according to EN161 and a second electric on/off
servo operator of class B or C to EN 161.
The pressure regulator is in accordance with class B
requirement of EN 88.
VK41..V(E)/VK81..V(E) gas controls can handle the three
gas families, manufactured gas, natural gas and LP gas.
VK41..VB/VK81..VB gas controls can handle second family
gas only.

SPECIFICATIONS

Models

VK41.0 series: line voltage gas control with pilot burner
connection, two automatic shut off valves and
pilot burner connection for direct spark
ignition (DSI) or hot surface ignition (HSI)
applications,
VK41.5 series: line voltage gas control without pilot burner
connection, two automatic shut off valves for
direct spark ignition (DSI) or hot surface
ignition (HSI) applications,
VK81.0 series: low voltage gas control with pilot burner
connection, two automatic shut off valves for
direct spark ignition (DSI) or hot surface
ignition (HSI) applications,
VK81.5 series: low voltage gas control without pilot burner
connection, two automatic shut off valves for
direct spark ignition (DSI) or hot surface
ignition (HSI) applications,

Suffix letter

V: fast opening, with integrated 1 : 1 gas/air regulation
VB: fast opening, with integrated 1 : 1 gas/air regulation
High capacity
VE: fast opening, with integrated 1:1 gas/air regulation and
integrated throttle in end outlet
Main Gas Connection
See table 1, table 2, table 3 and table 4.
3 1
/ " and / " straight or elbow flanges are according to the
8 2
torsion and bending stress of EN 126 group 2
1
Connections with G / " or G
2
nuts according to ISO 228-1 in combination with applicable
sealing(s) withstand the torsion and bending stress of EN
126 group 1
Side outlet (optional) and end outlet (flanged version) can be
fitted direct to a burner manifold.
End outlet or side outlet Quick connection for Mini-Venturi or
Premix Engine Venturi
1
3
/ " external thread fitted with
4
EN1R-1020 1004RA-NE
