Section 1 - Product Overview
1
1 Power Connector
2 Reset Button
3 VoIP Ports (1-2)
4 Gigabit LAN Ports (1-4)
5 Gigabit WAN Port
6 DSL Port
D-Link DSL-G2452GR User Manual

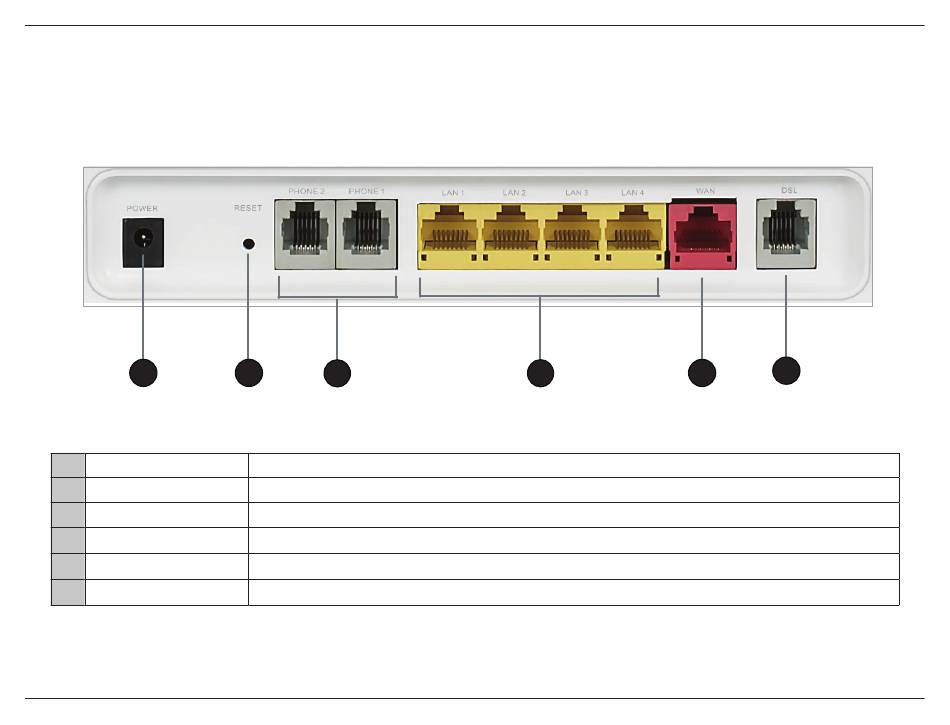

Hardware Overview

Back Panel

2
3
Connector for the supplied power adapter.
Use a paper clip to press and hold the reset button for 3 seconds.
Connects to an analogue telephone for Internet telephony.
Connects to Ethernet devices such as computers, switches, storage (NAS) devices and game consoles.
Connects to Ethernet WAN devices.
Connects to a DSL-enabled telephone line, and to the supplied microsplitter.
5
4
6
5
