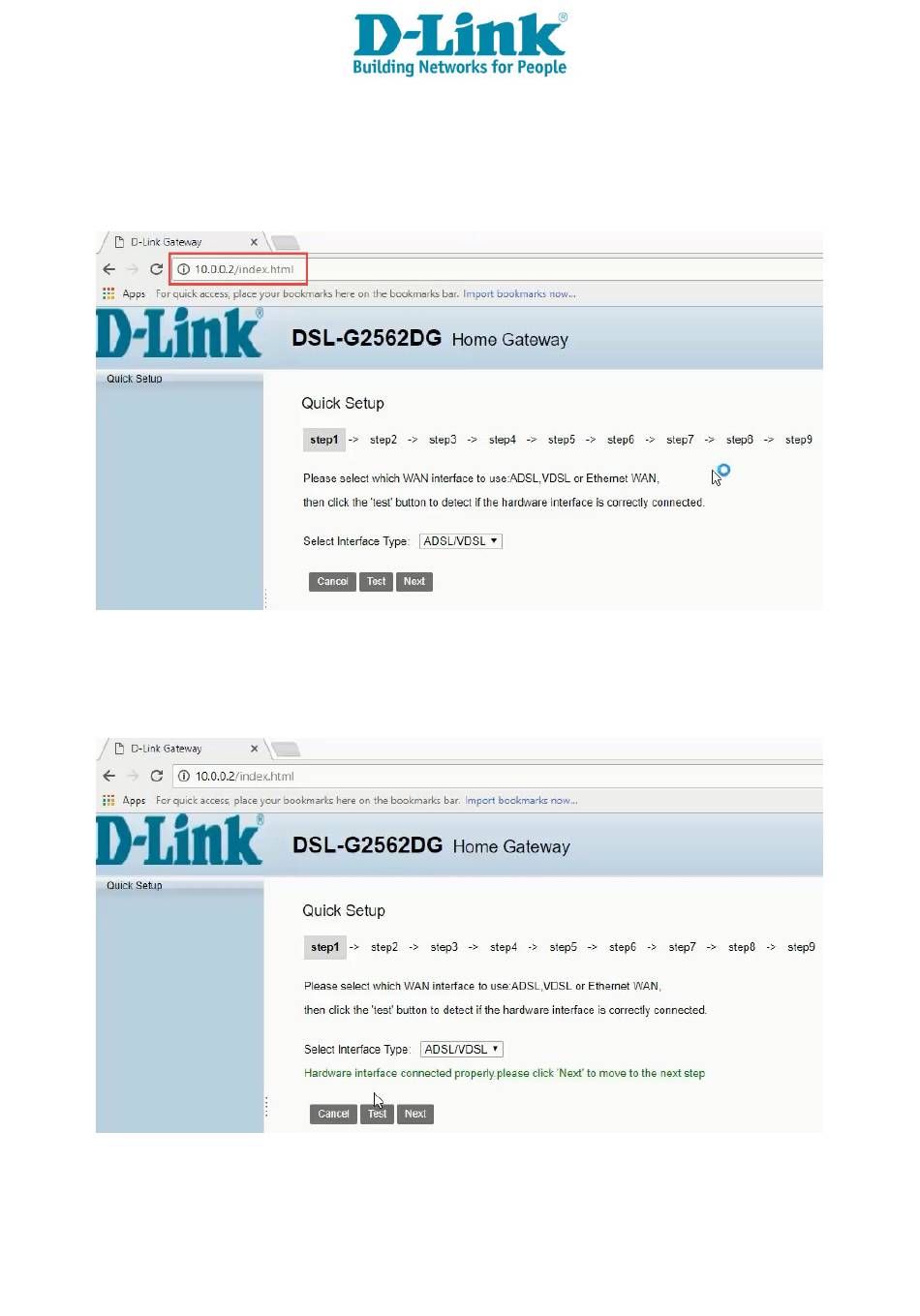

1) Type in the IP address bar 10.0.0.2 into your web-browser (IE, Chrome, Firefox etc)
2) Make sure your router is connected as per the Quick Installation Guide (QIG) for DSL service.
Select Interface Type: ADSL/VDSL
Click on [Test] to confirm your connection
Click on [Next] to proceed
DSL-G2562DG ADSL/VDSL Wizard Setup Guide

Advertisement

loading

  Summary of Contents for D-Link DSL-G2562DG

  • Page 1 DSL-G2562DG ADSL/VDSL Wizard Setup Guide 1) Type in the IP address bar 10.0.0.2 into your web-browser (IE, Chrome, Firefox etc) 2) Make sure your router is connected as per the Quick Installation Guide (QIG) for DSL service. Select Interface Type: ADSL/VDSL...
  • Page 2 3) Click on [Test] to confirm your default PPP account Click on [Next] to proceed Note: If the test fails, please contact Telkom Support for port recreation/verification 4) For new DSL line installation, make sure the correct option is ticked and click the URL to proceed This will take you to the Telkom Webpage for DSL verification...
  • Page 3 5) Continue as instructed on the Telkom Webpage If you have not received your PPPoE details,  proceed with [Configure your modem with your Telkom Internet account] If you have your PPPoE details sent to you via SMS, proceed with http://10.0.0.2 ...
  • Page 4 Alternatively, contact Telkom Support for a password reset 8) D-Link modem comes set with unique default WIFI password on both the 2.4 & 5 GHz band for security purposes. The default password can be located on the back of the router. You can change the default password for both bands below (minimum of 8 characters) or [skip] to leave as default.
  • Page 5 10) If you are subscribed to Telkom VPN Lite’s services, entered the details provided. If not, click on [Skip] to proceed 11) Here you will be able to see a summary of the wizard setup. Click on [Apply] to complete the setup. You will be taken back to modem login page.
