iSinwheel GT2 - Electric Scooter Manual

Package Contents

When unboxing your GT2 electric scooter, please verify that the below items are included in the package. If anything is missing or damaged, please contact isinwheel customer service for support: support@isinwheel.com
Keep the package box to ship back the scooter when necessary.
Never use a charger that exceeds 54.6V 2A to avoid danger.

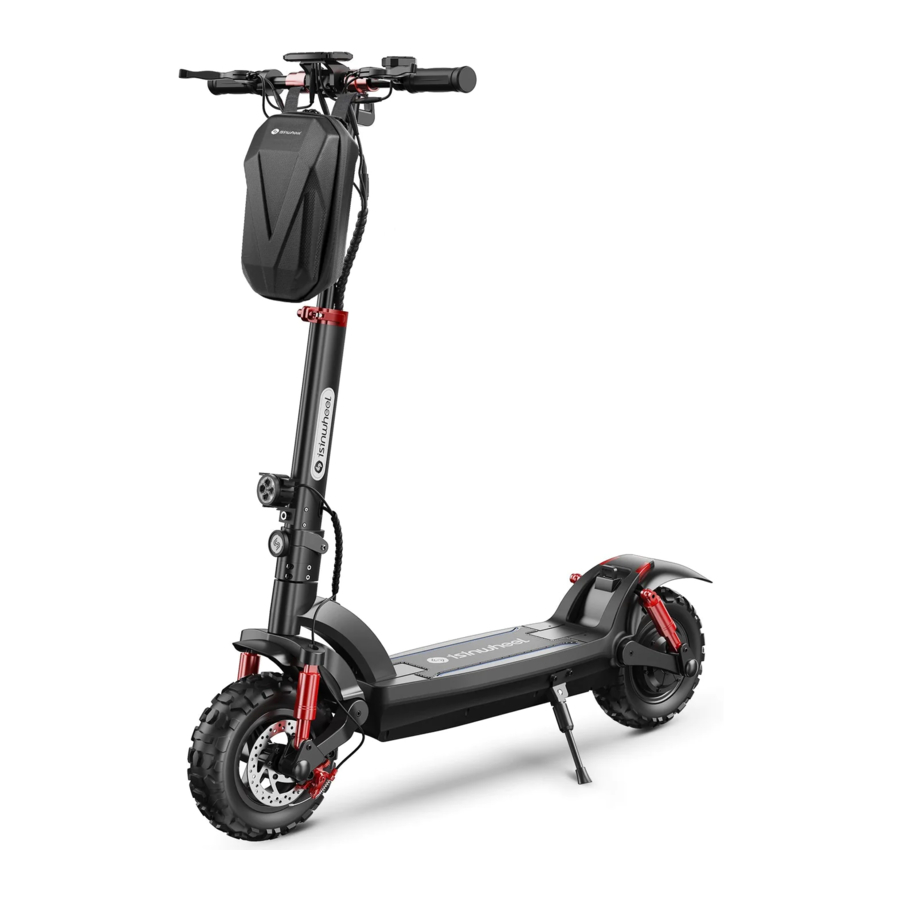

Product Overview

Control Panel

Displayed Content
Speed	Distance riding per hour.
Riding Mode	Three riding modes after power on, press +/- key to switch between ECO,STD, and TURBO modes.
	ECO: First gear	STD: Second gear	TURBO:Third gear
Battery Level	5-bar battery level.

Mode settings:
After turning on the scooter, press and hold 'M' and 'Light' buttons for about 10 seconds. Release the 'Light' button first, then release 'M' button to enter setting mode.
P01: Kilometer/mile selection setting
P05: Cruise selection: 0 means cruise off, 1 means cruise on; after the cruise is turned on, the cruise icon appears on the display
P06: Zero start/non-zero start setting, 0: zero start; 1: non-zero start
P99: Restore factory default parameters; press and hold the + button for 5 seconds during P99
ODO: Travel distance reset; long press the + button for 5 seconds at ODO

Assembly

Open the package, take out the E-scooter and its accessories.
Press the folding mechanism and lift the T-bar upright. Push down the kickstand.

1. Cut the tapes on the handlebars and lift up the handlebars
2. Tighten the handlebars by rotating the fasteners in the direction of arrows
  (Tips: You can visit www.isinwheel.com for additional fast assembly help)

Open the adjustable lock, adjust the handlebar to the height you needed, then close the lock.

Riding Notice

The isinwheel GT2 electric scooter is a leisure device. But once they're in a public area, they'll be seen as vehicles, subjecting to any risks faced by vehicles. For your safety, please follow instructions in the manual and traffic laws and regulations set forth by government and regulatory agencies.

At the same time, you should understand that risks cannot be entirely avoided as others may violate traffic regulations and drive incautiously, and you're exposed to road accidents just as when you're walking or biking. The faster the scooter is, the longer it takes to stop. On a smooth surface, the scooter may slip, lose balance, and even result in a fall. Thus it is crucial that you use caution, keep proper speed and distance, especially so when you're unfamiliar with the place.
Respect pedestrians' Right of Way. Try not to startle them while driving, especially children. When you ride from behind pedestrians, ring your bell to give them a heads-up and slow your scooter to pass from their left (applicable to countries where vehicles drive on the right). When you ride across pedestrians, keep to the right at a low speed. When you drive across pedestrians, keep the lowest speed or getting off the vehicle.
Closely follow the safety instructions in the manual. isinwheel shall not be liable for any financial losses, physical injuries, accidents, legal disputes and other interest conflicts resulted from actions that violate user instructions.
Do not lend your scooter to whoever doesn't know the operations. And when you do lend it to your friends, please take the responsibility to ensure he/she knows the operation and wears the safety gear.
Check the scooter before every use. When you note loosen parts, low battery alerts, excessive wear, strange sounds, malfunctions and other abnormal conditions, stop riding.
Risk of Fire – No User Serviceable Parts.

Charging

Your scooter will be fully charged when the LED indicator on the charger changes to green from red.
With charging protection, it will cut off charging automatically after fully charge.
Even so, we still don't recommend charging your scooter for a long time more than 24 hours at one time.
Do not connect the charger if the charging port is wet.
Keep the charging port closed when not charging.
Never use a charger that exceeds 54.6V 2A to avoid danger.

First Ride

Press the power switch for 1-3 seconds and then release, LCD display is on — it means the electric scooter is successful turned on.

Press the headlight button after power on to turn on the headlight and the ambient light on the deck.

Zero start: after power-on, press the accelerator and the motor of the scooter will rotate, and the scooter will go forward. (The throttle works even when the E-scooter is not in motion.)
Non-zero/Kick-and-go start: With kick-and-go start mode on, scoot the E-scooter for the throttle to operate.
Riding mode: After power on, press +/- key to switch between ECO, STD, and TURBO modes. (The default mode is low-speed ECO at first power-on.)

Riding Basics

danger Wear a helmet, elbow pads, and knee pads in case of falls and injuries either you are a beginner learning to ride or you are a seasoned rider.

Turn the power on, and check the battery level indicator.

Stand with one foot on the deck and one foot on the ground. Scoot yourself with the foot on the ground.
When the scooter starts to move forward, put both feet on the deck and press the accelerator. (The accelerator initiates once the speed exceeds 3 mph.)

Release the accelerator and the kinetic energy recovery system (KERS) initiates automatically to brake slowly; And squeeze the brake lever for a sudden brake.
Tilt your body to the steering direction as you turn, and slowly turn the handlebar.

Safety Instructions

Do not ride in the rain.

Please keep a medium or low speed (5mph) when you ride across speed bumps, elevator door sills, bumpy roads or other uneven surfaces. Slightly bend your knee to better adjust mentioned surfaces.
Safety Instructions - Example 1

Look out for doors, elevators and other overhead obstacles.

Do not accelerate when you go downhill.
Safety Instructions - Example 2

Do not press the accelerator when you're walking alongside the scooter.
Safety Instructions - Example 3

Always steer clear of obstacles.

Do not hang bags or other heavy stuff on the handlebar.

Keep both feet on the deck all time.
Safety Instructions - Example 4

Dangerous Actions (No Attempting!)

Do not ride in traffic lanes or residential areas where vehicles and pedestrians are both allowed.

Do not turn the handlebar violently during high-speed riding.

Do not ride in a ponding that is higher than 20mm.
Dangerous Actions - Example 1

Do not ride with anyone else, including children.
Dangerous Actions - Example 2

Keep your feet off the rear mudguard. Always keep your hands on the handlebar.

Always keep your hands on the handlebar.
Dangerous Actions - Example 3

Do not touch the disc brake.

Do not try riding up or down stairs, and jumping over obstacles.
Dangerous Actions - Example 4

Disc Brake Adjustment

To adjust the disc brake sensitivity:
You need a hex wrench to remove the screws on the rocker.

When the disc brake is too sensitive, rotate the disc brake rocker down a bit. Then, reinstall the screws back to the brake cable core to tighten.

When the disc brake cannot stop, rotate the disc brake rocker up a bit. Then, reinstall the screw back to the brake cable core to tighten.
Notice: The disc brake may squeak when in use until it is broken in. This is normal and does not affect the brake's function or performance.

To remove the disc brake noise:
First make sure the scooter is turned off. For easier operating, we suggest you put the scooter on the desk.

Loosen two screws on the pump (not the screw on the rocker).

Adjust the position of the disc brake pump to ensure that the brake disc is in the middle of the two brake pads.

Keep the brake disc and brake pad not touching each other.

Hold the disk brake pump in the desired position, then re-tighten the screws to the pump.

Daily Care and Maintenance

Cleaning and Storage

If you see stains on the scooter's body, wipe them off with a damp cloth. If you cannot scrub off the stain, put on some toothpaste, and brush them with a toothbrush, then wipe them off with a damp cloth.

Notes:

Do not clean the scooter with alcohol, gasoline, kerosene, or other corrosive and volatile chemical solvents to prevent dire damage.
Do not wash the deck with a high-pressure water spray. During cleaning, make sure that the scooter's turned off, the charging cable is unplugged, and the rubber flap is closed as water leakage may result in electric shock or other major problems. When the scooter is not in use, keep it indoors where it is dry and cool.
Do not put it outdoors for a long time. Excessive sunlight, overheating, and over-cooling will shorten the battery pack's lifespan.

Battery Maintenance

Use original battery packs. Use of batteries of other models or brands may bring about safety issues,
Do not touch the contacts. Do not dismantle or puncture the casing. Keep the contacts away from metal objects to prevent short circuit which may result in battery damage or even injuries and deaths,
Use original power adapter to avoid potential damage or fire,
Mishandling of used batteries may do tremendous harm to the environment. To protect natural environment, please follow local regulations to properly dispose used batteries.
After every use, fully charge the battery to prolong its lifespan.

Storage and Disposal

Please try to store the scooter in a cool and dry place between 14℉and 104℉. In extremely humid environments the interior of the scooter may suffer condensation or even water accumulation, which may damage the battery rapidly. Devices are not intended for use at elevations greater than 2000 m above sea level. Prolonged Exposure to UV Rays, Rain and the Elements May Damage the Enclosure Materials, Store Indoors When Not in Use.
In daily use, try to recharge the scooter after completely exhausting the battery. If the battery level is low, charge it as soon as possible.
Please charge the scooter every other month to preserve the battery.

Specifications

GT2	ltem	Electric Scooter
Dimensions	Unfolded (Length. x Width x Height)	12263125 cm
Dimensions	Folded (Length. x Width x Height)	1222257 cm
Weight	Net Weight	53LB / 24KG
User	Load	150 kg
User	Recommended Age Recommended Height	14+ 120~200cm
Scooter	Speed	28MPH
	Long Range	40-45 km
	Max. Slope	35%
	Operating Temperature	-15°C~40°C
	Protection level	IPX4
Battery	Voltage	48 V
	Max. Charging Voltage	54.6 V
	Capacity	15 AH
Motor	Power	800 W
Charger	Input Voltage	110-240 V
	Output Voltage	54.6 V
	Output Current	2A
	Charging Time	5-7 h

The height of the body: Distance from the ground to the highest end of the body.

Description of the battery life: It is measured under the condition of full charge, a load of 70KG, at 25°C, on a flat road without wind, and at a speed of 15KM/H. The real battery life will differ with different factors of the load, humidity, wind speed and operation habits.

The maximum allowable weight shall be kept within 150KG (driver and objects included) in any case. Consider an extra weight of the clothes or other accessories with us during the trip and the gravity generated by speed, the scooter will not support it if this load limit is exceeded.

Question & Answer

What if the E-Scooter arrived with missing accessories or broken parts?
A: Please take a photo and send to isinwheel Support Team by sending email: And isinwheel Support Team will reply you soon and send correct accessory or part replacement.
Is the tire replaceable and how to replace the tire?
Yes, the tire is replaceable. Please contact isinwheel support team for more information or search the video "How to replace the offroad tire" in YouTube instead.
What if the rear disc brake of the scooter doesn't work well?
A: You may please contact us for instructions of brake adjusting, or search "How to adjust rear brake of scooter" in YouTube for tutorial video as well.
What should I do when I hear an unusual noise coming from the rear wheel?
A: It usually means your disc brake tilts to cause friction noise. Please see Disc Brake Adjustment page. If you still have problem, please contact us for help.

Why does the screen display an error code?

A: If you see any error code below, Please contact isinwheel Support Team to remove the error code.

Error code	Definition
03	Check whether the 3-phase wire terminals and the Hall signal connector are in poor contact, or the system startup time exceeds 2S due to heavy load, such as climbing or the wheels are stuck. If this state still occurs after reconnecting the terminals, the controller or motor is damaged.
04	Low battery voltage protection, under voltage protection
06	Detect whether the Hall commutation signal of the motor is faulty, and check whether the connector of the Hall signal is in poor contact. If the state still occurs after reconnecting the terminals, the Hall of the motor is damaged.
07	When the system is powered on, detect whether the handlebar is out of control, or the handlebar signal is less than 0.75V. Or the handlebar is twisted before the system works, in this case the fault can be removed after resetting.
08	Controller failure
10	The controller cannot receive the dashboard signal
15	The controller cannot receive the dashboard signal

If the 5-core wire connecting the dashboard and the controller fails, the specific reasons may be as follows:

If the dashboard cannot be turned on, the screen is black. Possible reasons: The main power line between the controller and the battery is not properly connected, or there is a problem with any one of the red, black, and blue wires connecting the dashboard and the controller.

If the dashboard can be turned on, but it will stop working after working for 3s. Possible reasons: Any one of the green-yellow signal wires connecting the dashboard and the controller is in open state.
