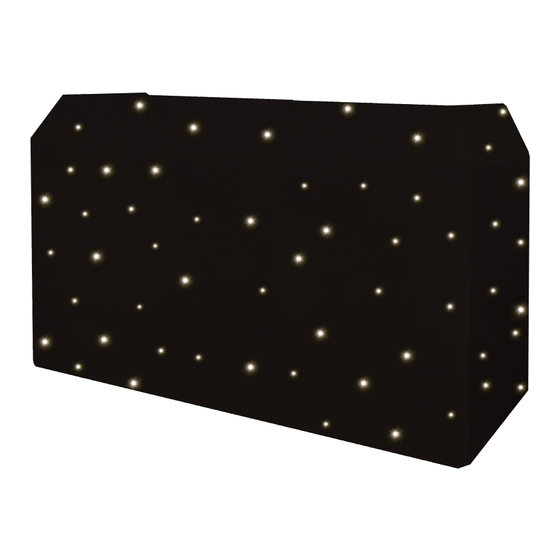

- Page 1 PRO DJ Booth LED Starcloth System User Manual Order code: EQLED025B...
-
Page 2: Safety Advice
• To clean the cloth, disconnect the mains power supply and equipment is not in use or before cleaning! Only handle then wipe with a damp cloth. Do not immerse in liquid. the power-cable by the plug. Never pull out the plug by The cloth will require monthly cleaning. Do not use alcohol pulling the power-cable. or solvents. Connections and LEDs must be kept clean and dry at all times. • Make sure that the available mains supply voltage is between 100~250V AC, 50/60Hz. • Repairs, servicing and power connection must only be carried out by a qualified technician. THIS UNIT CONTAINS • Make sure that the power cable is never crimped or NO USER SERVICEABLE PARTS. damaged. Check the equipment and the power cable periodically. • WARRANTY: One year from date of purchase. • If the equipment is dropped or damaged, disconnect the mains power supply immediately and have a qualified engineer inspect the equipment before operating again. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk PRO DJ Booth LED Starcloth System User Manual... - Page 3 Auto Au00-Au08 AS00-AS99 Addr d. 0 01-d. 5 12 MENU Soud so00-So08 SE00-SE31 Slave mode MENU www.prolight.co.uk PRO DJ Booth LED Starcloth System User Manual Fade mode Speed SLAv Software version A000-A255 LED string 1 FAde FS00-F599 Pattern u--- b000-b255...
-
Page 4: Technical Specifications
LED string 1 d000-d255 LED string 4 Pattern u--- b000-b255 LED string 2 mode CF00-CF99 Flash speed Static mode PAtt C000-C255 LED string 3 Stat S000-S015 d000-d255 LED string 4 CF00-CF99 Flash speed www.prolight.co.uk PRO DJ Booth LED Starcloth System User Manual... - Page 5 To exit out of any of the above options, press the “ESC” button. Sound active mode To access the sound active mode, press the “UP/DOWN” buttons on the front of the unit to show “Soud” on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the sound program you require. Press the “ENTER” button to confirm the setting. Now use the “UP” and “DOWN” buttons to set the the sound sensitivity (00: lowest, 31: highest). Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “ESC” button. Pattern mode: To access pattern mode, press the “UP/DOWN” buttons on the front of the unit to show “PAtt” on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the brightness of LED string 1. Press the “ENTER” button to confirm the setting. Repeat this step for LED string 2 - 4. Press the “ENTER” button to confirm the setting. Now use the “UP” and “DOWN” buttons to set the the flash speed required. Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “ESC” button. Slave mode: To access the slave mode, press the “UP/DOWN” buttons on the front of the unit to show “SLav” on the LED display. The unit is now in slave mode. Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “ESC” button. DMX address: To change the DMX address, press the “UP/DOWN” buttons on the front of the unit to show “Addr” on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the address you require. Press the “ENTER” button to confirm the setting. This is also the mode that needs to be used when controlling the starcloth via DMX. To exit out of any of the above options, press the “ESC” button. www.prolight.co.uk PRO DJ Booth LED Starcloth System User Manual...
-
Page 6: Software Version
Channel Value Function 0-20 LED group 1 blackout 21-230 LED group 1 flash speed 231-255 LED group 1 full on 0-20 LED group 2 blackout 21-230 LED group 2 flash speed 231-255 LED group 2 full on 0-20 LED group 3 blackout 21-230 LED group 3 flash speed 231-255 LED group 3 full on 0-20 LED group 4 blackout 21-230 LED group 4 flash speed 231-255 LED group 4 full on 0-100 All channels flash at speed set above 101-255 All channels full on www.prolight.co.uk PRO DJ Booth LED Starcloth System User Manual... -
Page 7: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Note: DMX cable must be daisy chained and cannot be split. www.prolight.co.uk PRO DJ Booth LED Starcloth System User Manual... - Page 8 3-pin XLR (socket) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk PRO DJ Booth LED Starcloth System User Manual...
-
Page 9: Related Items
Order code: EQLED025 Order code: EQLED025F Optional White Lycra You can also create a white starcloth effect by covering the optional black starcloth Order code: EQLED025C with the supplied white lycra www.prolight.co.uk PRO DJ Booth LED Starcloth System User Manual... -
Page 10: Weee Notice
Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk PRO DJ Booth LED Starcloth System User Manual... - Page 11 PRO DJ Booth LED Starcloth System User Manual...
- Page 12 PRO DJ Booth LED Starcloth System User Manual...
