PATPET p-collar 350 - Remote Training Collar Quick Start Guide

Introduction

Patpet dog training collar is designed to let dogs live safely, happily and get along with people more harmoniously.

Do not use with aggressive dogs.
Aggressive dogs can cause severe injury and even death to their owner and others. If you are unsure whether this product is appropriate for your dog, please consult your veterinarian or certified trainer.

Safety during on-leash training.
It is vitally important that you and your dog remain safe while learning during on-leash training. Your dog should be on astrong leash, long enough for him to attempt to chase an object, but short enough for him not to reach aroad or other unsafe area. You must also be physically strong enough to restrain your dog when he tries to chase.

Risk of skin damage.
Please read and follow the instructions in this manual. Proper fit of the collaris important. Acollar worn for too long or made too tight on the pet's neck may cause skin damage ranging from redness to pressure ulcers. This condition is commonly known as bed sores.

• Avoid leaving the collar on the dog for more than 12 hours per day.
• When possible reposition the collar on the pet's neck every 1 to 2 hours.
• Never connect a lead to the electronic collar; it will cause excessive pressure on the contacts.
• lf a rash or sore is found, discontinue use of the collar until the skin has healed.
• If the condition persists beyond 48 hours, see your veterinarian.
• This product is not a toy, please keep away from children.
• This product is only for use with healthy dogs.

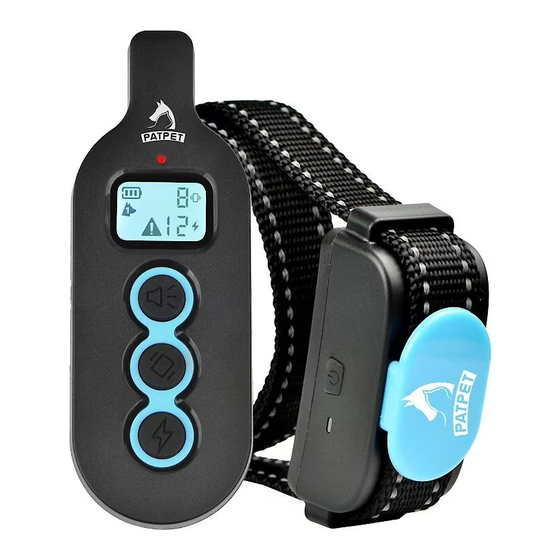

Overview

Remote

1. LED Indicator
2. Battery Display
3. Channel Display
4. High Shock Level Warning
5. On/Off Button
6. Vibration Level Display
7. Level +.
8. Shock Level Display
9. Level-

• Channel Conversion Button
• Press and Holdit for setting Vibration&Shock Level.

11. Tone Button
12. Vibration Button
13. Shock Button
14. Charging Port

Receiver Collar

15. Contact Points
16. Conductive Silicone
17. Charging Port (with cover)
18. On/Off Button
19. LED Indicator

Setting Up the Product

Before you can use the Dog Training Collar, you must set up the product as below steps:

1. Charging the Remote and the Receiver Collar.
2. Prepare the Remote and turn it on.
3. Prepare the Receiver Collar, install Contact Points, Conductive Silicone, and assembly collar, turn the Receiver Collar on.
4. Function test, test function of buttons before wearing it on dog.
5. How to use the Test Lamp, test Shock function or use as a screw driver.
6. Pair the Remote and the Receiver Collar, pair them when the product lose its code or pair forasecond collar.

Charging the Remote and the Receiver Collar

1. Plugin and fully charge the Remote and the Receiver collar. This may take 2-3 hours.
2. When full charged, the red LED on the Receiver Collar will become green. Thered LED on the Remote will flash and the Battery Display will stop cycling and appear full.
3. Please replace the rubber cover when the Receiver Collar is full charged.

Tips:

1. Excessive charging will shorten battery life. Only charge them when batteries are low.
2. When you're not using the collar, please turn it off to increase

Note:

1. Charge with the power adapter included in the product, other specifications of the power adapter may cause damage to the product.
2. If you lostit, please use the same specifications of the power adapter for replacement (Output: 5VDC 800mA) or contact us.

Prepare the Remote

Turn ON/OFF the Remote

1. Press the ON/OFF Button onthe remote once to turn it ON.
2. LCD willbe lighted, and show the information of current channel, battery power and levels. If not, please charge the remote.
3. Press and hold the ON/OFF Button onthe Remote to turn it OFF, until the LCD off, then release. It may take 2-3 seconds.

Prepare the Receiver

Install the Contact Points & Conductive Silicone

1. Select the correct Contact Points and Conductive Silicone length for your dog's coat type:

• For dogs with thicker coats, Use 2pcs longer Contact Points and Conductive Silicones.
• For dogs with shorter coats, Use 2pcs shorter Contact Points and Conductive Silicones.

Note: Notinstall the Metal Contact Points when shock function is not be used.

2. Insert the Contact Points into the ports of the collar, rotate clockwise to tighten them(1A).
3. Install the Conductive Silicone onto the Contact Points to make it softer, it may better to the dog's skin(1B).


Assembly Collar

1. Unhitch the nylon belt and take off the Slide Buckle(2A).

2. Thread the strap through the Receiver Collar(2B).

3. Thread the slide buckle through the strap(2C).


4. Thread the strap through the side release buckle(2D).

5. Thread the excess strap through the slide buckle to make sure the collar is secured tightly(2E).



Turn on the Receiver Collar

• Press the On/Off Button the Green LED light comes on.
• In normal mode, the Green LED will flash every 4 seconds, indicating the Receiver Collar is on and ready to receive a signal from the Remote.

Turn off the Receiver Collar

• Press and hold the On/Off Button until the Red LED light shuts off (This takes approximately 3 seconds).
• Release the On/Off Button.

NOTE: To extend the life of the batteries, please turn the Receiver Collar off when it is notin use.

Function Test

We recommend you experience firsthand how the different levels feel on yourself and always begin at the lowest level, and increase the levels up to your personal comfort levels.

1. Place one finger over both Contact Points of the training collar.
2. Hold your remote approximately 2 ft. from the training collar. Press the Vibration Button continuously for 1 to 2 seconds. You should feel continuous vibration.

	Vibration: sends 1-8 adjustable levels of vibration to the Receiver Collar.
	Tone: sends atone with non-adjustable level to the Receiver Collar.
	Shock: sends 1-16 adjustable levels of static stimulation to the Receiver Collar. Warning sign shows when the levels over 8.
	Channel Conversion: Press shortly once to change dog or dog channel. Vibration & Shock Level Adjustment: Press and hold until the Vibration/Shock Level display flashes, press +/- toincrease/ decrease levels.
	Press to increase the Shock/Vibration Level.
	Press to decrease the Shock/Vibration Level.

Note:

• Press and hold until the Vibration/Shock Level display flashes to set Vibration/Shock Level.
• The Shock Level can be adjusted from 1 to 16 levels and the Vibration Level from 1 to 8 levels; please adjust it properly as per your dog's reaction.
• It is not recommended to press and hold the Vibration/Shock Button too long to avoid physical or psychological hurt to the dog.

How to Use the Test Lamp

Shock Function Test

1. Turn on the Receiver Collar.
2. Hold the Test Lamp contacts against the Contact Points (or Conductive Silicone).

3. Press the Shock Button and the Test Lamp will be lighted. It will be lighter accordingly with the Shock Level increasing.


As a Screw Driver

Use the Test Lamp to tighten or loosen the Contact Points when prepare the Receiver Collar.

Pair the Remote and the Receiver Collar

1. Usethe DogButton onthe Remote to select Dog .
2. With the Remote turned on and the Receiver Collar turned off, press and hold the ON/OFF Button on the Receiver Collar for 4-5 seconds.
3. The Red & Green LED will blink for about 10 seconds indicating that itis ready for pairing.
4. Press and hold the first Tone Button and the second Vibration Button at the same time for 2-3 seconds, the Green Led on the Receiver Collar will blink for 5 times indicating successful pairing.

Pairing a Second Collar with the Remote

1. Use the Dog Button on the Remote to select Dog. Then follow the above pairing steps from 2-4.

Dog Training

Selecting The Contact Points and The Conductive Silicone

For the best results, select the correct Contact Points based on your dog's coat.

• For dogs with thicker coats, Use 2pcs longer Contact Points and Conductive Silicones.
• For dogs with shorter coats, Use 2pcs shorter Contact Points and Conductive Silicones.

Collar Fitting

Please fit the collar properly so that the Contact Points press firmly against the dog's skin. When properly fitted, you should be able to put a finger in between the Receiver Collar and dog's neck.

Too loose: the Receiver Collar will move around the dog's neck, the Contact Points may hurt the dog's skin.

Too tight: it may cause dog's to breathe hard.

1. do not shave the pet's neck as this may increase the risk of skin irritation.
2. the collar should not be worn for more than 12 hours per day. Or it may cause skin irritation.

Find the Best Shock Level for Your Pet

The unit comes with Up and Down buttons to control the Shock Level, with Level 1 being the lowest level and Level 16 being the highest. The level of Shock best suited for your dog depends on your dog's temperament and threshold for Shock. Always start at the lowest level and work your way up. The appropriate level can be found when the dog responds to the Shock witha mild reaction, such asa flick of the ear, a lick of the lips, atensing of the neck muscles etc. The Shock Level may vary depending on the training situation. When highly distracted, dog's will require a higher level of Shock.

Device Information

Product Specification

Troubleshooting Guide
