- Page 1 Bark Collar User Manual Model BC02 0.3.0.02.BC0200-PT-02 Please read the manual @PATPET carefully before using service@patpet.com...
-
Page 2: Package Contents

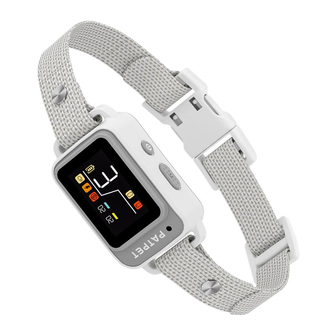

Package Contents Bark Collar Test Light Tool Contact points Silicone Caps Bark Collar User Manual Model BC02 0.3.0.02.BC0200-PT-02 @PATPET Please read the manual service@patpet.com carefully before using Charging Cable User Manual... - Page 3 Overview Mode Power Button Microphone USB C Charging Port Contact Points Silicone Caps Week Barking count of the day Barking count of 7 days Sensitivity Level Adjustable Collar LED Indicator...
- Page 4 WARNING Do not use for the aggressive dog. This product is not use for the aggressive dogs because they can cause severe injury to their owners and others. If you are not sure if this product is right for your dog, please check with your veterinarian or certified trainer. CAUTION Risk of skin damage.
- Page 5 Charge the Bark Collar USB C Charging Port The battery icon varies, the screen turns off after 5s, the red indicating light will be always on. The indicating light will be always on and the battery icon stops varying when charging is over.
- Page 6 Turn on the collar Press and hold the power button for 2 seconds to turn on the bark collar. Note: The screen will turn off when no button pressed after 15 seconds. Turn off the collar Press and hold the power button for 2 seconds to turn off the bark collar.
- Page 7 How to Adjust the Sensitivity Level The sensitivity grade number varies each time you press the power button, from 1 to 5. The lager the grade, the more sensitive the collar will act. Mode Barking Times Functional Feedback The first bark is detected--- sound and vibration delivers simultaneously Detected the second bark ---...
- Page 8 Custom Mode Barking Times Functional Feedback Detected the sixth bark--- sound+vibration+electric shock 5 gears (the electric shock is the highest gear). After 5 consecutive electric shocks (reaching step 6), the machine will enter the protection state. Whether the 6 voices later dog is barking or not, the machine will stop acting for 30 seconds and will display "P".
- Page 9 How to Turn Off Shock Press the Mbutton to switch shock function, you may notice the shock button varies when you press the M button. If the icon exists, it means the shock is on. barking Shockless mode Function Feedback frequency The buzzer beeps 1 time + Turn off stimulation...
- Page 10 How to Observe Barking Records "D" shows the number of barking times of the day, and each bar lights up to indicate that the dog barks 5 times. The digital record is based on the actual number of barking times, and the number stops calculating after 99 times.
- Page 11 2. When it is turned on for more than 24 hours, the barking data of "D" will be automatically cleared for the day. 3. When it is turned on, it will record the number of barking times from 1 to 7 days. When it reaches the 8th day, the data of the first day will be subtracted.
- Page 12 How to Install Contact Points...
- Page 13 How to Use the Test Light Tool 1. Turn on the electric shock mode, select "5" gear to enter the test. 2. Put the lamp test tool vertically on the 2 contact points, make sure the metal wire directly touches the top of the 2 points. 3.
- Page 14 Wearing a Bark Collar The point of contact must be in direct contact with the dog's neck skin. Check the tightness of the collar by inserting 2 fingers firmly between the collar and the neck.
- Page 15 How to Adjust the Collar...
-
Page 16: Frequently Asked Questions
Frequently Asked Questions Q: Why does the product not work when the dog barks? A: Please first make sure the product is snug, but loose enough that one finger can be placed between the strap and the pet's neck, some dogs bark very weakly, in this case, you need to turn up the sensitivity level. -
Page 17: Troubleshooting
Sensitivity level adjustment 5, if the problem is still not solved, please feel free to contact us at service@patpet.com. We will do our best to help you. - Page 18 Warranty 1-Year Warranty The original purchaser of the unit has a 1 year limit warranty. Warranty starts from the date of purchase. Parts and labor are covered for warranty repair services during the first year. After the first year, the limited lifetime warranty covers parts only and excludes labor and accessories.
- Page 19 altered or an unauthorized person has damaged the unit while attempting repair work. maintenance work procedure If the unit malfunctions, refer to “Troubleshooting” (p. 16) in the manual before sending it in for service. A copy of the sales receipt showing the date of purchase may be required before warranty work can begin.
- Page 20 Shenzhen Patpet Technology Co., Ltd https://patpet.com service@patpet.com @PATPET 1-855-888-9922 (Mon-Fri, EST 9:00-17:00) No. 59-63, The 2nd Industrial Park, Houting, Shajing Street, Baoan District, Shenzhen, China...
- Page 21 尺寸 80(宽)mm*100mm(长) 颜色 四色+哑油 装订方式 骑马钉 128g双铜单色印刷+印哑油 名称 BC02说明书PATPET版 材质 版本日期 2023年11月01日...
- Page 22 The device has been approved for use in EU countries and is therefore provided with the CE All necessary documentation is available on the website: www.electric-collars.com mark. Changes to technical parameters, properties and printing errors reserved. Service center and distribution Reedog, sro Sedmidomky 459/8 101 00 Prague 10...
