nordictrack.com
Model No. NTEX71017.2
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
ACTIVATE YOUR
WARRANTY
To register your product and
activate your warranty today,
go to my.nordictrack.com.
CUSTOMER CARE
For service at any time, go to
support.nordictrack.com.
Or call 1-800-TO-BE-FIT
(1-800-862-3348)
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NTEX71017.2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NordicTrack NTEX71017.2

Summary of Contents for NordicTrack NTEX71017.2

  • Page 1 USER’S MANUAL Model No. NTEX71017.2 Serial No. Write the serial number in the space above for reference. Serial Number Decal ACTIVATE YOUR WARRANTY To register your product and activate your warranty today, go to my.nordictrack.com. CUSTOMER CARE For service at any time, go to support.nordictrack.com.

  • Page 2: Table Of Contents

    Apply the decal in the location shown. Note: The decal(s) may not be shown at actual size. NORDICTRACK and IFIT are registered trademarks of ICON Health & Fitness, Inc. The Bluetooth ® word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. Google Maps is a trade- mark of Google LLC.

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read all important precautions and instructions in this manual and all warnings on your exercise bike before using your exercise bike. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
  • Page 4 STANDARD SERVICE PLANS...

  • Page 5: Before You Begin

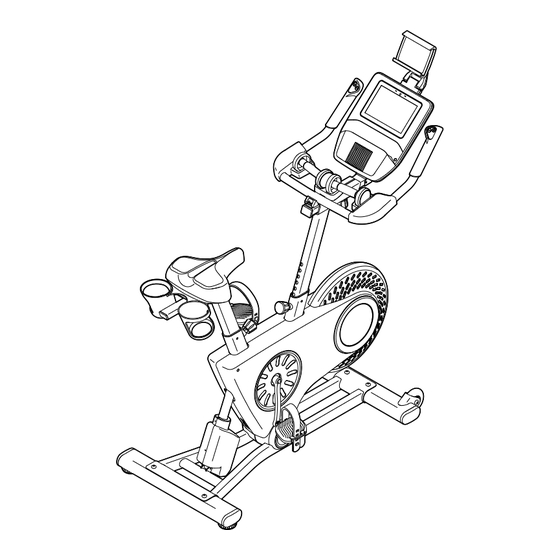

    BEFORE YOU BEGIN Congratulations for selecting the revolutionary reading this manual, please see the front cover of this NORDICTRACK ® GRAND TOUR exercise bike. The manual. To help us assist you, note the product model GRAND TOUR exercise bike is unlike any ordinary number and serial number before contacting us.

  • Page 6: Part Identification Chart

    PART IDENTIFICATION CHART Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity needed for assembly.

  • Page 7: Assembly

    • Left parts are marked “L” or “Left” and right parts power tools. are marked “R” or “Right.” • To identify small parts, see page 6. 1. Go to my.nordictrack.com on your computer and register your product. • documents your ownership • activates your warranty •...
  • Page 8 3. If there is a shipping support attached to the front of the Base (1), remove the screws from the shipping support, and discard the screws and the shipping support. Attach the Front Stabilizer (22) to the Base (1) with two M10 x 58mm Screws (74). 4.
  • Page 9 6. Locate the Post Knob (47) on the rear of the Frame (2). Loosen and pull the Post Knob. Next, orient a Post Bushing (42) as shown, and insert it into the Frame (2). Make sure that the tabs (A) on the Post Bushing are in the holes (B) in the Frame.
  • Page 10 8. Orient a Post Bushing (42) as shown and hold it near the Frame (2). Insert the Main Wire (68) upward through the Post Bushing. Next, locate the Post Knob (47) on the front of the Frame (2). Loosen and pull the Post Knob, and then insert the Post Bushing into the Frame.
  • Page 11 10. Tip: Avoid pinching the Main Wire (68) during this step. Pull the Post Knob (47). Next, insert the Handlebar Post (6) into the Frame (2), and release the Post Knob (47) into the lowest adjustment hole (H) in the Handlebar Post.
  • Page 12 12. Loosen the Handlebar Knob (95). Next, slide the Handlebar Carriage (99) forward as far as Avoid pinching possible. Then, tighten the Handlebar Knob. the wires Tip: Avoid pinching the wires. Attach the Handlebar (7) to the Handlebar Carriage (99) with four M6 x 20mm Screws (103);...
  • Page 13 15. Attach the Tablet Holder (10) to the Console (9) with four Tablet Holder Screws (82); start all the Tablet Holder Screws, and then tighten them. 16. Set the two Hand Weights (15) on the Hand Weight Rest (83) and on the Armrests (69, 72). 17.

  • Page 14: How To Use The Exercise Bike

    HOW TO USE THE EXERCISE BIKE HOW TO PLUG IN THE POWER CORD A temporary adapter may 2-pole Receptacle This product must be grounded. If it should mal- be used to function or break down, grounding provides a path of connect the Adapter least resistance for electric current to reduce the risk...
  • Page 15 HOW TO ADJUST THE EXERCISE BIKE How to Adjust the Handlebar Post The exercise bike can be adjusted to promote correct To adjust the height form and to ensure proper training of the muscles. of the handlebar Note: Make adjustments in small increments, post, loosen and and then pedal the exercise bike to test the pull the post knob...
  • Page 16 HOW TO LEVEL THE EXERCISE BIKE HOW TO USE THE TABLET HOLDER IMPORTANT: The tablet holder (I) is designed If the exercise bike for use with most full-size tablets. Do not place rocks slightly on any other electronic device or object in the tablet your floor during holder.

  • Page 17: How To Use The Console

    HOW TO USE THE CONSOLE CONSOLE DIAGRAM FEATURES OF THE CONSOLE When you use the manual mode of the console, you can change the resistance of the pedals and the incline The advanced console offers an array of features of the frame with the touch of a button. designed to make your workouts more effective and enjoyable.
  • Page 18 HOW TO TURN ON THE POWER HOW TO USE THE TOUCH SCREEN IMPORTANT: If the exercise bike has been exposed The console features a tablet with a full-color touch to cold temperatures, allow it to warm to room tem- screen. The following information will help you use the perature before you turn on the power.
  • Page 19 HOW TO SET UP THE CONSOLE 5. Check for firmware updates. Before you use the exercise bike for the first time, set First, touch the menu button (three horizontal lines up the console. symbol), touch Settings, touch Maintenance, and then touch Update. The console will check for firm- 1.
  • Page 20 HOW TO USE THE MANUAL MODE (+ symbol) to view statistics or charts. Touch the center of the screen to view even more display 1. Touch the screen or press any button on the mode options. console to turn on the console. If desired, adjust See HOW TO TURN ON THE POWER on the volume level by...
  • Page 21 HOW TO USE A FEATURED WORKOUT OR AN To draw your own map for a workout, see HOW TO ONBOARD WORKOUT CREATE A DRAW-YOUR-OWN-MAP WORKOUT on page 23. 1. Touch the screen or press any button on the console to turn on the console. When you select a workout, the screen will show an overview of the workout that includes details See HOW TO TURN ON THE POWER on...
  • Page 22 If the resistance level and/or incline level is too high When the workout ends, a workout summary will or too low, you can manually override the setting appear on the screen. If desired, you can select by pressing the Resistance buttons or the Incline/ options such as adding the workout to your sched- Decline buttons.
  • Page 23 HOW TO CREATE A DRAW-YOUR-OWN-MAP If you make a mistake, touch Undo in the map WORKOUT options. 1. Touch the screen or press any button on the The screen will display the elevation and distance console to turn on the console. statistics for your workout.
  • Page 24 HOW TO USE AN IFIT WORKOUT 4. Select an iFit workout that you have previously added to your schedule on iFit.com. To use an iFit workout, the console must be connected IMPORTANT: Before iFit workouts will load, you to a wireless network (see HOW TO CONNECT TO A must add them to your schedule on iFit.com WIRELESS NETWORK on page 26).
  • Page 25 HOW TO CHANGE CONSOLE SETTINGS The console can display speed and distance in either standard or metric units of measurement. IMPORTANT: Some of the settings and features described may not be enabled. Occasionally, a 4. View machine information or console app information.
  • Page 26 HOW TO CONNECT TO A WIRELESS NETWORK Note: You must have your own wireless network and an 802.11b/g/n router with SSID broadcast To use iFit workouts and to use several other features enabled (hidden networks are not supported). of the console, the console must be connected to a wireless network.
  • Page 27 HOW TO USE THE SOUND SYSTEM THE OPTIONAL CHEST HEART RATE MONITOR To play music or audio books through the console Whether your sound system while you exercise, plug a 3.5 mm male goal is to to 3.5 mm male audio cable (not included) into the burn fat or to jack on the console and into a jack on your personal strengthen your...

  • Page 28: Fcc Information

    FCC INFORMATION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 29: Maintenance And Troubleshooting

    MAINTENANCE AND TROUBLESHOOTING HOW TO MAINTAIN THE EXERCISE BIKE power cord. Next, locate the small reset opening Regular maintenance is important for optimal (A) on the side or back of performance and to reduce wear. Inspect and properly the console. Using a bent tighten all parts each time the exercise bike is used.
  • Page 30 HOW TO ADJUST THE REED SWITCH HOW TO ADJUST THE DRIVE BELT If the console does not display accurate feedback, the If the pedals slip while you are pedaling, the drive belt reed switch should be adjusted. Before you adjust the may need to be adjusted.

  • Page 31: Exercise Guidelines

    EXERCISE GUIDELINES Aerobic Exercise—If your goal is to strengthen your WARNING: cardiovascular system, you must perform aerobic Before beginning this exercise, which is activity that requires large amounts or any exercise program, consult your physi- of oxygen for prolonged periods of time. For aerobic cian.

  • Page 32: Part List

    PART LIST Model No. NTEX71017.2 R0919A Key No. Qty. Description Key No. Qty. Description Base Board Bracket Frame Standoff Seat Post Crank Pulley Seat Carriage Crank Seat Magnet Handlebar Post M8 x 16mm Screw Handlebar Bearing Water Bottle Holder Snap Ring...
  • Page 33 Key No. Qty. Description Key No. Qty. Description M4 x 10mm Flange Screw M4 x 45mm Screw Handlebar Carriage Cap M8 x 3mm Washer M6 x 20mm Screw M4 x 12mm Ground Screw 38mm Washer Ground Wire M4 x 16mm Flange Screw –...
