EVERSPRING AN145-2 Quick Start Manual

AN145

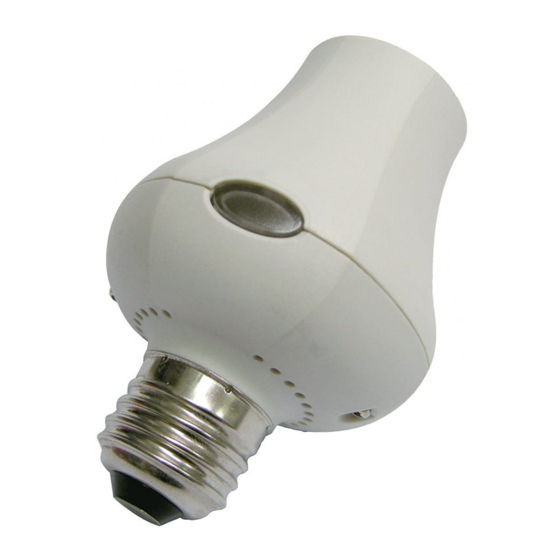

SCREW-IN ON/OFF MODULE
The AN145 Screw-in On/Off Module is a transceiver which is a Z-Wave
enabled device and is fully compatible with any Z-Wave
TM
Z-Wave enabled devices displaying the Z-Wave
it regardless of the manufacturer, and ours can also be used in other
TM
manufacturer's Z-Wave enabled networks. Inclusion of this Module on other
manufacturer's Wireless Controller allows remote turn-on of On/Off status. Each
Module is designed to act as a repeater. Repeaters will re-transmit the RF
signal to ensure that the signal is received by its intended destination by routing
the signal around obstacles and radio dead spots.
TM
Adding to Z-Wave Network
In the front casing, there is an On/Off knob coupled with LED indicator which is
used to carry out inclusion, exclusion or association. Put a Z-Wave
Controller into inclusion/exclusion mode, press the knob on the Module to
complete the inclusion/exclusion process.
B 2 2 l a m p c a p
Installation
As soon as the light bulb is screwed into the lamp holder, the LED on the Module
will be flashing slowly. This implies that the Module is not included in Z-Wave
system and cannot be controlled by the Wireless Controller. However, pressing
TM
enabled network.
TM
logo can also be used with
TM

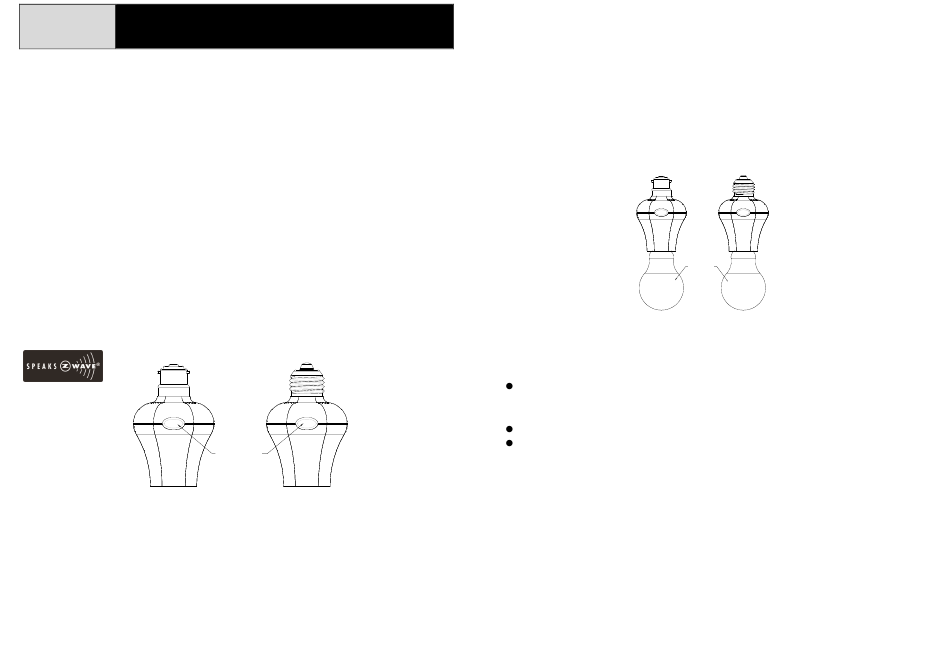

E 2 6 / E 2 7 l a m p c a p
O N / O F F K N O B
L E D I N D I C A T O R
the On/Off knob will control directly the On/Off status of the connected
incandescent lamp without using the Wireless Controller.
(1) Turn off the wall switch on the wall or mains power supply.
(2) There are three types of lamp caps – B22, E26, E27. Choose whichever
TM
suits you most.
(3) The Module is designed for ceiling mounting. Fit the Module into the
existing lamp cap.
(4) Place the light bulb into the lamp holder.
Note: The Module cannot be screwed in an air tight environment/ lamp stand.
Wireless
Operation
To turn on or off the incandescent lamp controlled by the Module:
Simply press and release the On/Off knob. The red indicator LED will turn
On/Off and the incandescent lamp screwed into the Module will also turn
On/Off.
With Z-Wave controller: simply press On or Off button on the controller.
With Z-Wave routing slave: To do association between routing slave and
Module through Z-Wave controller, the routing slave can control the On/Off
status of Module.
Advanced Operation*
*AN145-2, AN145-4 only
As long as any Z-Wave
command
1
B 2 2 l a m p c a p E 2 6 / E 2 7 l a m p c a p
L I G H T B U L B
TM
enabled device that can send below mentioned alarm
