EVERSPRING AN148 Quick Start Manual

AN148 ON/OFF MODULE
This AN148 plug-in ON/OFF Module is a transceiver whi ch is a Z-Wave
device and is fully com patible with a ny Z-Wave
enabled devices displaying the Z-Wave
of the manufacturer, and ours can also be used in other manufacturer's Z-Wave
enabled networks. Rem ote On/Off control of the connected load is possibl e with
other manufacturer's Wireless Controller. Each mod ule is designed to a ct as a
repeater. Repeaters will re-transmit the RF signal to ensu re that the sig nal is
received by i ts intended destination by routing the signal around obstacles and
radio dead spots. The AN148 plug-in ON/OFF Module is compatible with our
Motion Detectors SP103 and Door/Window Detectors SM103.
TM
Adding to Z-Wave Network
In the front casing, there i s an On/Off knob which i s used to carry out in clusion,
exclusion or association. Put a
inclusion/exclusion mode, press the kno b on the Module to compl
inclusion/exclusion process.

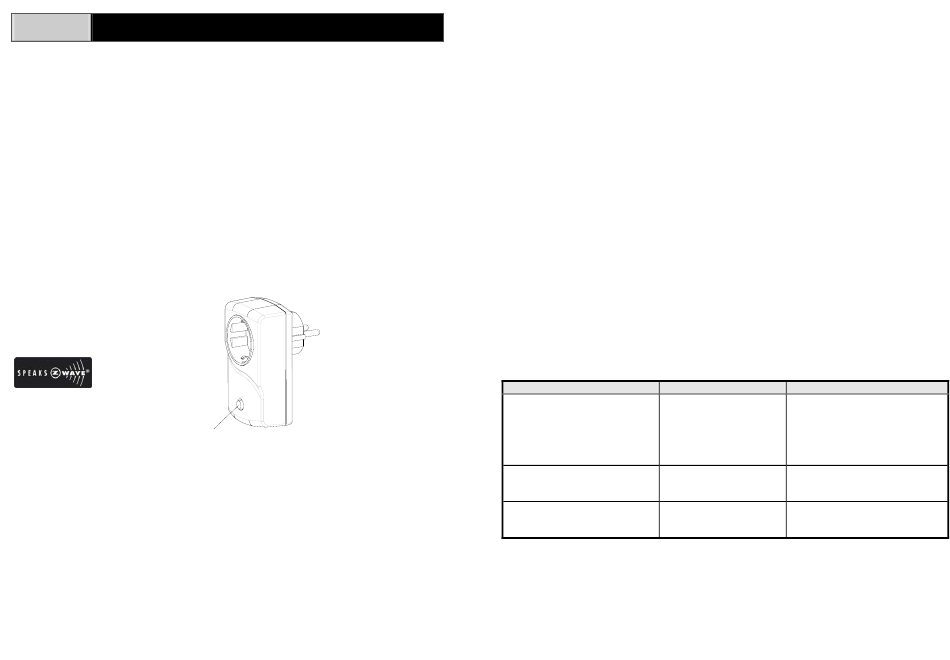

ON/OFF KNOB

Installation

1. Plug this On/Off Module into a wall outlet near the load to be controlled.
2. Plug the l oad into the Module. Make sure the lo ad to b e controlled cannot
exceed 2990/3500 watts.
3. Turn the knob or switch on the load to the ON position.
4. To manually turn O N the On/Off Module, press and release the On/Off knob.
The red indicator LED will turn ON, and the load plugged into the Module will
also turn ON.
TM
TM
enabled network. Z-Wave
TM
logo can also be use d with it regardless
TM
Z-Wave Wireless Controller
5. To manually turn OFF the Module, simply press and release the On/Off knob.
The red indicator LED will turn OFF and the load plugged into the Module will
also turn OFF.
enabled
TM
6. If Motion D etector SP103 or Doo r/Window Detector SM103 has bee n
removed from the wall by triggerin g the tamper switch, the Detector (SP103 or
TM
SM103) will send an alarm command (ALARM_REPORT, Alarm Type ==
0x01, Alarm Level == 0x11) to the Module, of which red indicator LED and the
load plugged into the Module will be on and off intermittently for 10 seconds.
Note: When putting Motion Detector or Door/Window Detector in use, do not
connect the load bel ongs to motor or electroni c transformers, as the loa d
would be impaired.

Programming

The On/Off knob allows the user
into
- Turn on or off the load attached
ete the
- Include or exclude the Module from the Z-Wave
- Control other Z-Wave
See the instructions for SP103 Motion Detector or SM103 Door/Window Detector.

Troubleshooting

Symptom
The Module not working and
LED off
The Module LED illuminating,
but cannot control the ON/OFF
Switch of the load attached
The Module LED illuminating,
but the Detector cannot control
the Module

Socket Type

1
TM
system
TM
enabled devices
Cause of Failure Recommendation
1. The Module is not 1. Check power connections
plugged into the 2. Don't open up the Module and
electrical outlet send it for repair.
properly
2. The Module is out of
order
Check if the load plugged Set the ON/OFF switch of the
into the Module has its load attached to ON
own ON/OFF switch
1. Not carry out 1. Carry out association
association 2. Wait for a while to re-try
2. Frequency interference
