AN163 ON/OFF MODULE
This plug-in ON/OFF Module is a transceiver which is a Z-Wave
and is fully compatible with any Z-Wave
TM
devices displaying the Z-Wave
manufacturer, and ours can also be used in other manufacturer's Z-Wave
networks. Remote On/Off control of the connected load is possible with other
manufacturer's Wireless Controller. Each module is designed to act as a repeater.
Repeaters will re-transmit the RF signal to ensure that the signal is received by its
intended destination by routing the signal around obstacles and radio dead spots.
This plug-in ON/OFF Module is able to detect current wattage (5~1440W) and
overload wattage of connected non-dimmable lights or appliances. When detecting
overload state, the Module will be disabled and its On/Off button will be locked out of
which LED will flash quickly for 30 seconds. However, unplug and re-connect the
Module will reset its overload condition to normal status.
Include to or Exclude from a Z-Wave
In the front casing, there is an On/Off button with LED indicator which is used to carry
out inclusion, exclusion, reset or association. Toggle On/Off button between On and
Off. When first power is applied, its LED flashes on and off alternately and repeatedly
at 2-second intervals. It implies that it has not been assigned a node ID and cannot
work with Z-Wave enabled devices. Please get familiar with the terms below before
starting the operations.
Function
Inclusion Add a Z-Wave enabled device (e.g. On/Off Module) to Z-Wave network.
Exclusion Delete a Z-Wave enabled device (e.g. On/Off Module) from the network.
TM
TM
enabled network. Z-Wave
logo can also be used with it regardless of the
TM
Network

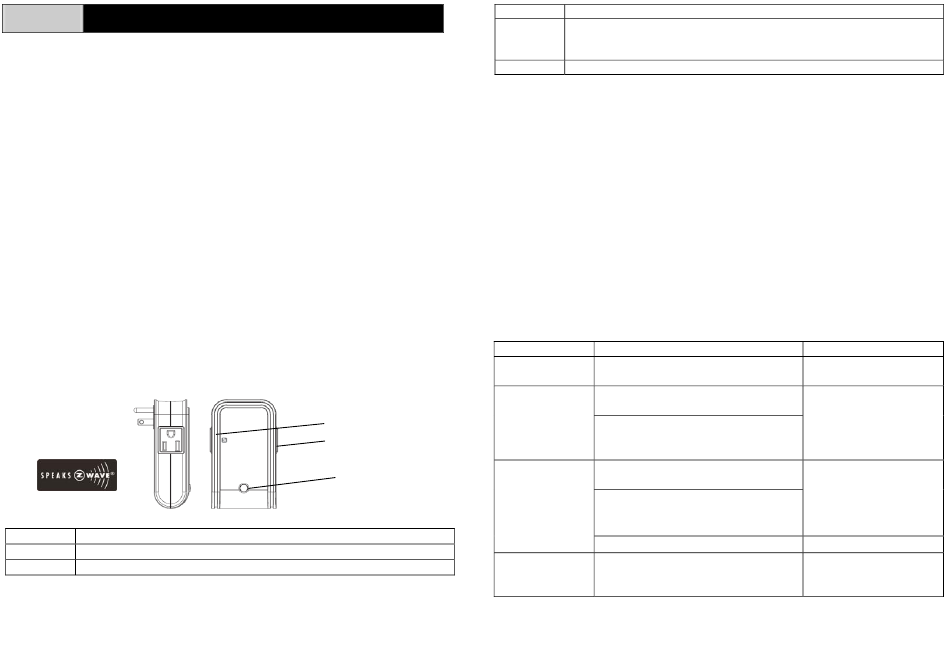

Controllable outlet
Pass-through outlet
On /Off knob
Description
Function
Association
enabled device
Reset
TM
enabled
The table below lists an operation summary of basic Z-Wave functions. Please refer
TM
enabled
to the instructions for your Z-Wave
setup function, and to include/exclude/associate devices. The module executes the
function of auto inclusion when...
Auto Inclusion
The function of auto inclusion will be executed as long as the module does not have
a node ID and in situations where...
1. The power is first applied.
2. The execution of exclusion/reset is successful where the stored node ID is
cleared.
Note: Auto inclusion timeout is 4 minutes during which the node information of
explorer frame will be emitted once every 5 seconds. Unlike "inclusion" function as
shown in the table below, the execution of auto inclusion is free from pressing the
tamper switch on the unit.
Function
No node ID
Inclusion
Exclusion
Reset
1
Description
After inclusion, you have to define the relationship between devices.
Through association, device can be assigned as master/slave, and specify
which slave is going to be controlled by which master.
Restore On/Off Module to factory default.
TM
Certificated Primary Controller to access the
Description
The Z-Wave Controller does not allocate
a node ID to the Module.
1. Have Z-Wave Controller entered
inclusion mode.
2. Pressing On/Off button three times
within 1.5 seconds will enter
inclusion mode.
1. Have Z-Wave Controller entered
exclusion mode.
2. Pressing On/Off button three times
within 1.5 seconds will enter
exclusion mode.
Node ID has been excluded.
1. Pressing On/Off button three times
within 1.5 seconds will enter
inclusion mode.
LED Indication
2-second on, 2-second off
Press On, for on
Press Off, for off
Press On, for on
Press Off, for off
2-second on, 2-second off
Press On, for on
Press Off, for off
