Toa F-500WP Specification Sheet

2-WAY WEATHERPROOF SPEAKER
F-5OOWP/F-5OOWP-L/F-6OOWP/F-6OOWP-L
DESCRIPTION
The TOA F-500WP/F-500WP-L & F-600WP/F-600WP-L are
weatherproof 2-way sealed type loudspeaker systems housing
a 7.9" (F-600WP/F-600WP-L: 12") woofer with high power
capacity, and a constant directivity (CO) horn tweeter with a
high-efficiency driver. The CD horn assures a uniform, well-
controlled dispersion pattern of 60° horizontal by 40° vertical
within its specified frequency response range. An extremely
durable low-foam polypropylene resin enclosure provides
superb acoustic characteristics. Providing not only high
efficiency, wide frequency coverage and high durability, but
also easy installation, the TOA weatherproof F-5OOWP/
F-500WP-L & F-600WP/F-600WP-L speaker systems have
been designed for all-weather outdoor applications and moist
places such as ice arenas, as well as for a wide variety of
other applications.

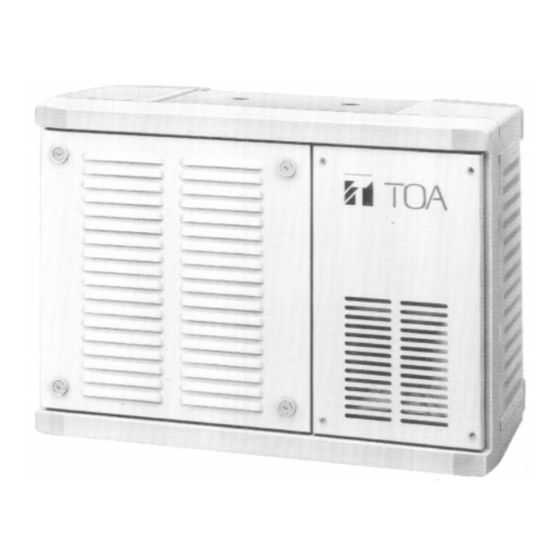

TOA SPEAKER SYSTEM
F-500WP
F-500WP-L
FEATURES
1. Rain- and weather-proof construction makes these speaker
systems ideal for all-weather use outdoors and in highly
humid indoor applications.
2. The 2-way sealed 100V/70V constant voltage speaker
system (F-500WP-L, F-600WP-L: 8 ohms) incorporates a
woofer with high power handling capacity, and a constant
directivity (CD) horn tweeter that also includes a high-
efficiency driver.
3. CD horn provides a uniform dispersion pattern of 60°
horizontal by 40° vertical.
4. Low-foam polypropylene resin enclosure assures high-
quality acoustic response.
5. Speaker design and weatherproofing provide high
efficiency, extended range and durability, plus easy
installation, enabling use in a wide range of all-weather
outdoor and humid indoor situations.
6. Built-in overload protection circuitry.
