Wallbox COMMANDER 2 Service Manual page 7

Replacement of the Power Board
The Power board of the Commander 2 charger is enclosed within the plastic body of the charger.
The Power board consists of the following components:
• Power Supply Unit
• Wired Communications: MID, Power Sharing, Control pilot, etc.
• Energy Metering
The Power board of the Commander 2 charger, if malfunctioning or damaged can be replaced by
performing the following steps:
Removing the old Power board
1.
Turn off the power supply to the charger.

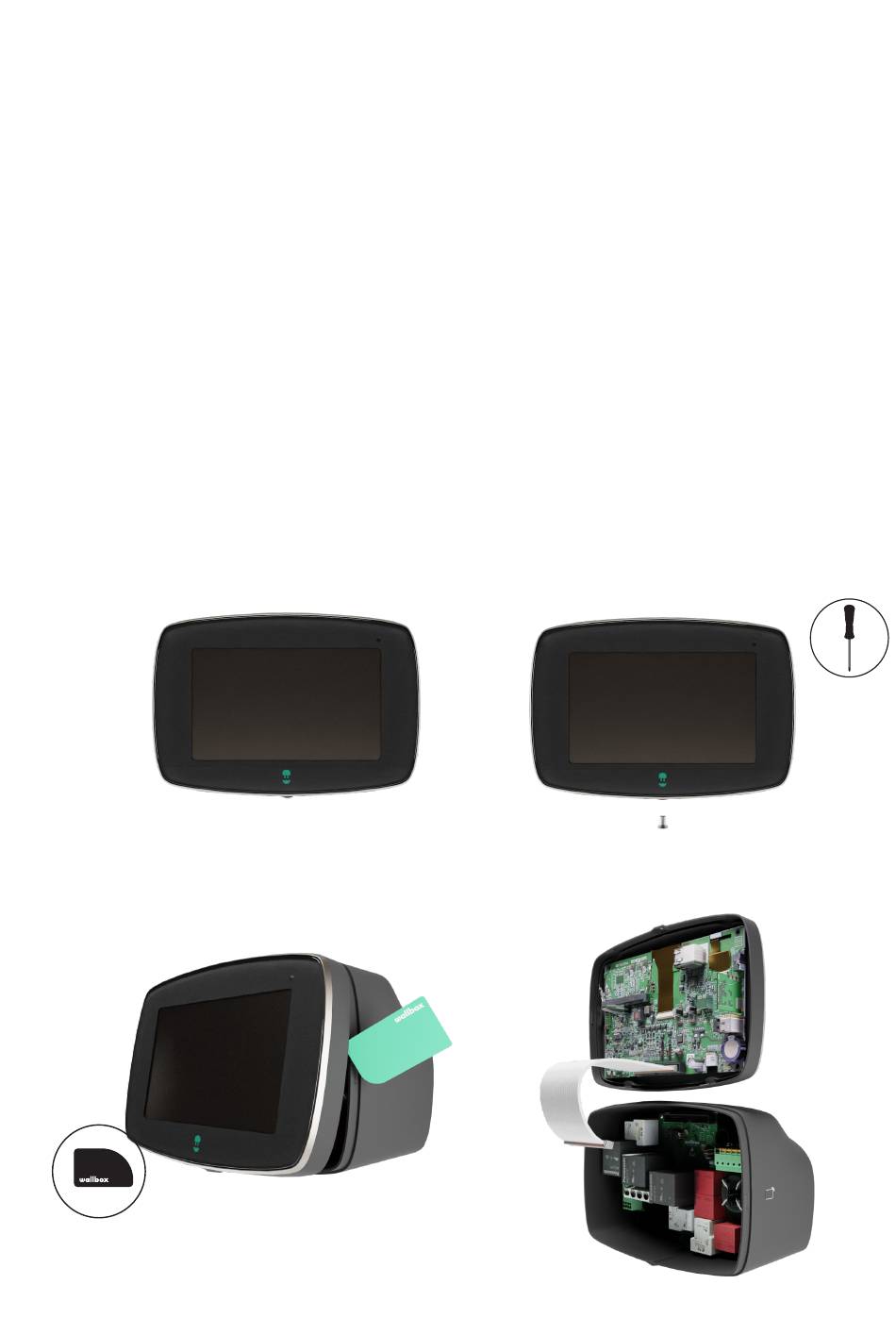

3.
Unclip the lateral and bottom clips with the
opening tool, then gently pull the front cover
from the bottom part.
7
2.
Unscrew the Torx screw at the bottom of
the charger using a Torx T9 screwdriver and
save it for later use.
4.
Carefully remove the communications cable
from the body of the charger.
