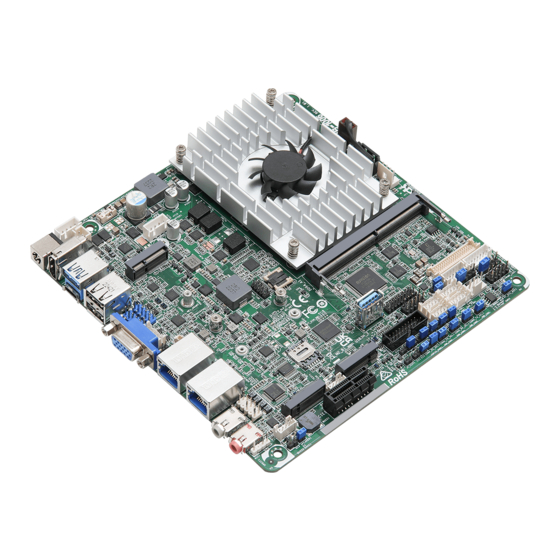

IMB-1006
User Manual
Version 1.2
Updated July 11, 2023
Copyright©2023 ASRockInd INC. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMB-1006 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ASRock Industrial IMB-1006

  • Page 1 IMB-1006 User Manual Version 1.2 Updated July 11, 2023 Copyright©2023 ASRockInd INC. All rights reserved.
  • Page 2 Version 1.0 Published May, 2023 Copyright©2023 ASRockInd INC. All rights reserved. Copyright Notice: No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRockInd Inc.
  • Page 3 WARNING THIS PRODUCT CONTAINS A BUTTON BATTERY If swallowed, a button battery can cause serious injury or death. Please keep batteries out of sight or reach of children. CALIFORNIA, USA ONLY The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature.
  • Page 4: Table Of Contents

    Contents Chapter 1 Introduction Package Contents Specifications Motherboard Layout I/O Panel Block Diagram Chapter 2 Installation Screw Holes Pre-installation Precautions Installation of Memory Modules Expansion Slots Jumpers Setup Onboard Headers and Connectors Chapter 3 UEFI SETUP UTILITY Introduction 3.1.1 Entering BIOS Setup 3.1.2 UEFI Menu Bar 3.1.3...
  • Page 5 3.3.3 Storage Configuration 3.3.4 Super IO Configuration 3.3.5 ACPI Configuration 3.3.6 USB Configuration 3.3.7 Trusted Computing Hardware Health Event Monitoring Screen Security Screen Boot Screen Exit Screen...
  • Page 6: Chapter 1 Introduction

    If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. https://www.asrockind.com/support/index.asp 1.1 Package Contents ASRockInd IMB-1006 Motherboard (Mini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm x 3.8 cm))
  • Page 7: Specifications

    1.2 Specifications Mini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm x 3.8 Form Factor Dimensions Intel® Alder Lake-N SoC Processors IMB-1006J (N97, QC, Max Speed Up to 3.6GHz, 12W) Processor *For other CPU SKUs request, please contact regional Sales System for availability Chipset...
  • Page 8 IMB-1006 3 x USB 3.2 Gen1 (1 x USB 3.2 header, 1 x USB 3.2 Gen1 Type-A vertical connector) 4 x USB 2.0 (2x2.54 pitch header) COM1, COM2 (RS-232/422/485) COM3, COM4 (RS-232/TTL-5V) GPIO 4 x GPI, 4 x GPO Internal...
  • Page 9: Motherboard Layout

    1.3 Motherboard Layout FROM_UPS1 DC_JACK1 TO_UPS1 HDMI1 MIPI1 T : USB3H_1 PWR_ADAPTER1 B : TC_U3D_0 M2_E1 USB 2.0 T : USB2_7 B : USB2_6 VGA1 VGA2 BIOS BAT1 PWR_BAT2 SPI_TPM1 DDR4_ 1 LAN1 LAN2 SIM1 LVDS1 USB3H_2 ESPI1 Line Out BLT_PWM1 BLT_PWR1 BLT_VOL1...
  • Page 10 IMB-1006 1 : 4-pin DC-in PWR Connector (Input +12V~+28V) & UPS Module Power Output Connector (FROM_UPS1) 2 : 2-pin UPS Module Power Input Connector (TO_UPS1) 3 : M.2 Key-E Socket (M2_E1) 4 : PWR_ADAPTER1 5 : SPI_TPM Header (SPI_TPM1) 6 : MIPI Connector (MIPI1)
  • Page 11 34 : DACC Jumper (DACC1) 35 : Buzzer Header (BUZZ2) 36 : 3W Audio AMP Output Wafer (SPEAKER1) 37 : SPDIF Header (SPDIF1) 38 : Front Panel Audio Header (HD_AUDIO1) 39 : Battery Connector (BAT1) 40 : PWR_BAT2 41 : VGA Header (VGA2) 42 : USB 2.0 Headers (USB2H_1~4)
  • Page 12: I/O Panel

    IMB-1006 1.4 I/O Panel DC Jack (DC_JACK1) D-Sub Port (VGA1) HDMI Port (HDMI1) RJ45 LAN Port (LAN1)* Top : USB 3.2 Gen1 Port (USB3H_1) RJ45 LAN Port (LAN2)* Bottom : USB 3.2 Gen2 Type-C Port Audio Output : Green – Line Out (TC_U3D_0) Audio Output : Pink –...
  • Page 13: Block Diagram

    1.5 Block Diagram IMB-1006 Channel A SO-DIMM LVDS/By Chrontel DDR4 LVDS/ CH7513 3200MHz pass mode SATA SATA Port HDMI HDMI Connector IT66318FN PCIe x1 CNVi M.2 Key E USB2.0 Type-C 1x USB2.0 PCIe x1 Connector USB3.2 Gen2 M.2 Key B SIM Card USB2.0...
  • Page 14: Chapter 2 Installation

    IMB-1006 Chapter 2 Installation This is a Mini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm x 3.8 cm) form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it.
  • Page 15: Installation Of Memory Modules

    2.3 Installation of Memory Modules IMB-1006 provides one 260-pin DDR4 (Double Data Rate 4) SO-DIMM slots, and supports single Channel Memory Technology. Please make sure to disconnect the power supply before adding or removing SO- DIMMs or the system components.
  • Page 16: Expansion Slots

    IMB-1006 2.4 Expansion Slots There are 1 PCI Express Gen3 slot, 3 M.2 sockets and 1 SIM socket on this motherboard. PCIE slot: PCIE1 (PCIe x1 slot) is used for PCIe Gen3 x1 lane width card. M.2 sockets: 1 x M.2 (Key E, 2230) with PCIex1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042/3052) with PCIex1, USB 3.2 Gen1, USB 2.0 and SIM for...
  • Page 17: Jumpers Setup

    2.5 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short.” If no jumper cap is placed on pins, the jumper is “Open. ” The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”...
  • Page 18 IMB-1006 supply. After waiting for 15 seconds, use a jumper cap to short pin 2 and pin 3 on CLRMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clear-CMOS action.
  • Page 19 Chassis Intrusion Headers Setting Description (2-pin CI1, CI2) Close Active Case Open (see p. 4, No. 25) Open Normal (Default) Setting Description Close Normal (Default) Open Active Case Open This motherboard supports CASE OPEN detection feature that detects if the chassis cover has been removed.
  • Page 20: Onboard Headers And Connectors

    IMB-1006 2.6 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause per- manent damage to the motherboard! 4-pin DC-in PWR Connector Signal Name &...
  • Page 21 CPU Fan Connector (+12V) Signal Name (4-pin CPU_FAN1) +12V (see p. 4, No. 7) CPU_FAN_SPEED FAN_SPEED_CONTROL The board offers three 4-pin CPU fan (Smart Fan) connectors which are compatible with 3-pin CPU fan. If you connect a 3-pin CPU fan to the CPU fan connector on this mother- board, please connect it to pin 1-3.
  • Page 22 IMB-1006 ESPI Header Signal Name Signal Name ESPI_CLK (17-pin ESPI1) ESPI_CS# SMB_CLK_MAIN ESPI_RST# SMB_DATA_MAIN (see p. 4, No. 11) ESPI_IO3 ESPI_IO2 ESPI_IO1 ESPI_IO0 S_PWRDWN# +3VSB DUMMY The header is reserved for Port 80 code display and for debugging purposes. LVDS Panel Connector...
  • Page 23 System Panel Header Signal Name Signal Name HDLED+ PLED+ (9-pin PANEL1) HDLED- PLED- PWRBTN# (see p. 4, No. 18) RESET# This header accommodates several system front panel functions. Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below.
  • Page 24 IMB-1006 USB 3.2 Gen1 Header Signal Name Signal Name DUMMY IntA_P_D+ (19-pin USB3H_3_4) IntA_P_D+ IntA_P_D- (see p. 4, No. 28) IntA_P_D- IntA_P_SSTX+ IntA_P_SSTX+ IntA_P_SSTX- 10 11 IntA_P_SSTX- IntA_P_SSRX+ 14 15 IntA_P_SSRX+ IntA_P_SSRX- 16 17 IntA_P_SSRX- Vbus Vbus There is one USB 3.2 Gen1 connector on this motherboard. This header can support two USB 3.2 Gen1 ports with maximum power current 0.9A per port.
  • Page 25 SMB_TEST1 Signal Name GP_E01 (4-pin SMBUS_TEST1) SMB_CLK (see p. 4, No. 32) SMB_DATA Buzzer Header Signal Name Buzz+ (2-pin BUZZ2) Buzz- (see p. 4, No. 35) This header provides additional external Buzzer to boot up debugging. 3W Audio AMP Output Wafer Signal Name OUTLN (4-pin SPEAKER1)
  • Page 26 IMB-1006 Battery Connector Signal Name +BAT (BAT1) (see p. 4, No. 39) VGA Header Signal Name Signal Name (10-pin VGA2) GREEN (see p. 4, No. 41) BLUE HSYNC VSYNC DDC_CLK DDC_DATA USB 2.0 Headers Signal Name Signal Name USB_PWR USB_PWR (9-pin USB2H_1~4) (see p.
  • Page 27: Chapter 3 Uefi Setup Utility

    Chapter 3 UEFI SETUP UTILITY 3.1 Introduction ASRock Industrial UEFI (Unified Extensible Firmware Interface) is a BIOS utility which offers tweak-friendly options in an advanced viewing interface. The UEFI system works with a USB mouse and offers users a faster, sleeker experience.
  • Page 28: Uefi Menu Bar

    IMB-1006 3.1.2 UEFI Menu Bar The top of the screen has a menu bar with the following selections: Main For setting system time/date information For advanced system configurations Advanced H/W Monitor Displays current hardware status Security For security settings Boot...
  • Page 29: Navigation Keys

    3.1.3 Navigation Keys Use < > key or < > key to choose among the selections on the menu bar, and use < > key or < > key to move the cursor up or down to select items, then press <Enter>...
  • Page 30: Main Screen (Advanced Mode)

    IMB-1006 3.2 Main Screen (Advanced Mode) When you enter the UEFI SETUP UTILITY, the Main screen will appear and display the system overview. Because the UEFI software is constantly being updated, the following UEFI setup screens and descriptions are for reference purpose only, and they may not exactly match what you see on your screen.
  • Page 31: Advanced Screen

    3.3 Advanced Screen In this section, you may set the configurations for the following items: CPU Configuration, Chipset Configuration, Storage Configuration, Super IO Configura- tion, ACPI Configuration, USB Configuration, and Trusted Computing. Setting wrong values in this section may cause the system to malfunction. Instant Flash Instant Flash is a UEFI flash utility embedded in Flash ROM.
  • Page 32: Cpu Configuration

    IMB-1006 3.3.1 CPU Configuration Active Processor E-Cores This allows you to select the number of E-Cores to enable in each processor package. NOTE: Number of P-Cores and E-Cores are looked at together. When both are {0,0}, Pcode will enable all cores.
  • Page 33 CFG Lock The option allows you to enable or disable the CFG Lock. Configuration options: [Enabled] [Disabled] Intel Virtualization Technology Intel Virtualization Technology allows a platform to run multiple operating systems and applications in independent partitions, so that one computer system can function as multiple virtual systems.
  • Page 34 IMB-1006 Power Limit 1 "Power Limit 1 in Mi l li Watts. BIOS w i l l round to t he nearest 1/8W when programming. 0 = no custom override. For 12.50W, enter 12500. Overclocking SKU: Value must be between Max and Min Power Limits (specified by PACKAGE_ POWER_SKU_MSR).
  • Page 35: Chipset Configuration

    3.3.2 Chipset Configuration VT-d Intel® Virtualization Technology for Directed I/O helps your virtual machine monitor better utilize hardware by improving application compatibility and reliability, and providing additional levels of manageability, security, isolation, and I/O performance. Configuration options: [Enabled] [Disabled] Re-Size BAR Support If system has Resizable BAR capable PCIe Devices, this option enables or disables Resizable BAR Support.
  • Page 36 IMB-1006 Render Standby Power down the render unit when the GPU is idle for lower power consumption. Active LVDS Use this to enable or disable the LVDS. The default value is [Disabled]. Set the item to [Enabled]. Then press <F10> to save the setting and restart the system. Now the default value of Active LVDS is changed to [Enabled] (F9 load default is also set to [Enabled]).
  • Page 37: Storage Configuration

    3.3.3 Storage Configuration SATA Controller(s) The option allows you to enable or disable the SATA controllers. Configuration options: [Enabled] [Disabled] SATA Mode Selection AHCI supports new features that improve performance. Configuration option: [AHCI] Hybrid Storage Detection and Configuration Mode The option allows you to select Hybrid Storage Detection and Configuration Mode. Configuration options: [Dynamic Configuration for Hybrid Storage Enable] [Disabled] SATA Aggressive Link Power Management...
  • Page 38 IMB-1006 Hard Disk S.M.A.R.T. S.M.A.R.T stands for Self-Monitoring, Analysis, and Reporting Technology. It is a monitoring system for computer hard disk drives to detect and report on various indicators of reliability. Configuration options: [Enabled] [Disabled]...
  • Page 39: Super Io Configuration

    3.3.4 Super IO Configuration COM1 Configuration Use this to set parameters of COM1. Type Select Use this to select COM1 port type: [RS232], [RS422] or [RS485]. COM2 Configuration Use this to set parameters of COM2. Type Select Use this to select COM2 port type: [RS232], [RS422] or [RS485]. COM3 Configuration Use this to set parameters of COM3.
  • Page 40: Acpi Configuration

    IMB-1006 3.3.5 ACPI Configuration Suspend to RAM Suspend to RAM allows you to select [Disabled] for ACPI suspend type S1. It is recommended to select [Auto] for ACPI S3 power saving. Configuration options: [Auto] [Disabled] PCIE Devices Power On Use this item to enable or disable PCIE devices to turn on the system from the power-soft-off mode.
  • Page 41: Usb Configuration

    3.3.6 USB Configuration USB Power Control Use this option to control USB power. M.2 Key_B USB Function Enable or disable M.2 Key-B USB function.
  • Page 42: Trusted Computing

    IMB-1006 3.3.7 Trusted Computing NOTE: Options vary depending on the version of your connected TPM module. Security Device Support Security Device Support allows you to enable or disable BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.
  • Page 43 SM3_256 PCR Bank SM3_256 PCR Bank allows you to enable or disable SM3_256 PCR Bank. Configuration options: [Enabled] [Disabled] Pending Operation Pending Operation allows you to schedule an Operation for the Security Device. NOTE: Your computer will reboot during restart in order to change State of the Device.
  • Page 44: Hardware Health Event Monitoring Screen

    IMB-1006 3.4 Hardware Health Event Monitoring Screen This section allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage.
  • Page 45: Security Screen

    3.5 Security Screen In this section you may set or change the supervisor/user password for the system. You may also clear the user password. Supervisor Password Set or change the password for the administrator account. Only the administrator has the authority to change the settings in the UEFI Setup Utility. Leave it blank and press enter to remove the password.
  • Page 46 IMB-1006 Secure Boot Mode [Standard] Select this item and the system will automatically load the Secure Boot keys from the BIOS database. [Custom] Select this item and Secure Boot Policy variables can be configured by a physically present user without full authentication.
  • Page 47: Boot Screen

    3.6 Boot Screen This section displays the available devices on your system for you to configure the boot settings and the boot priority. Boot From Onboard LAN The item allows the system to be waked up by the onboard LAN. Configuration options: [Enabled] [Disabled] Setup Prompt Timeout The item allows you to...
  • Page 48: Exit Screen

    IMB-1006 3.7 Exit Screen Save Changes and Exit When you select this option, the following message “Save configuration changes and exit setup?” will pop out. Select [Yes] to save the changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option, the following message “Discard changes and exit...
