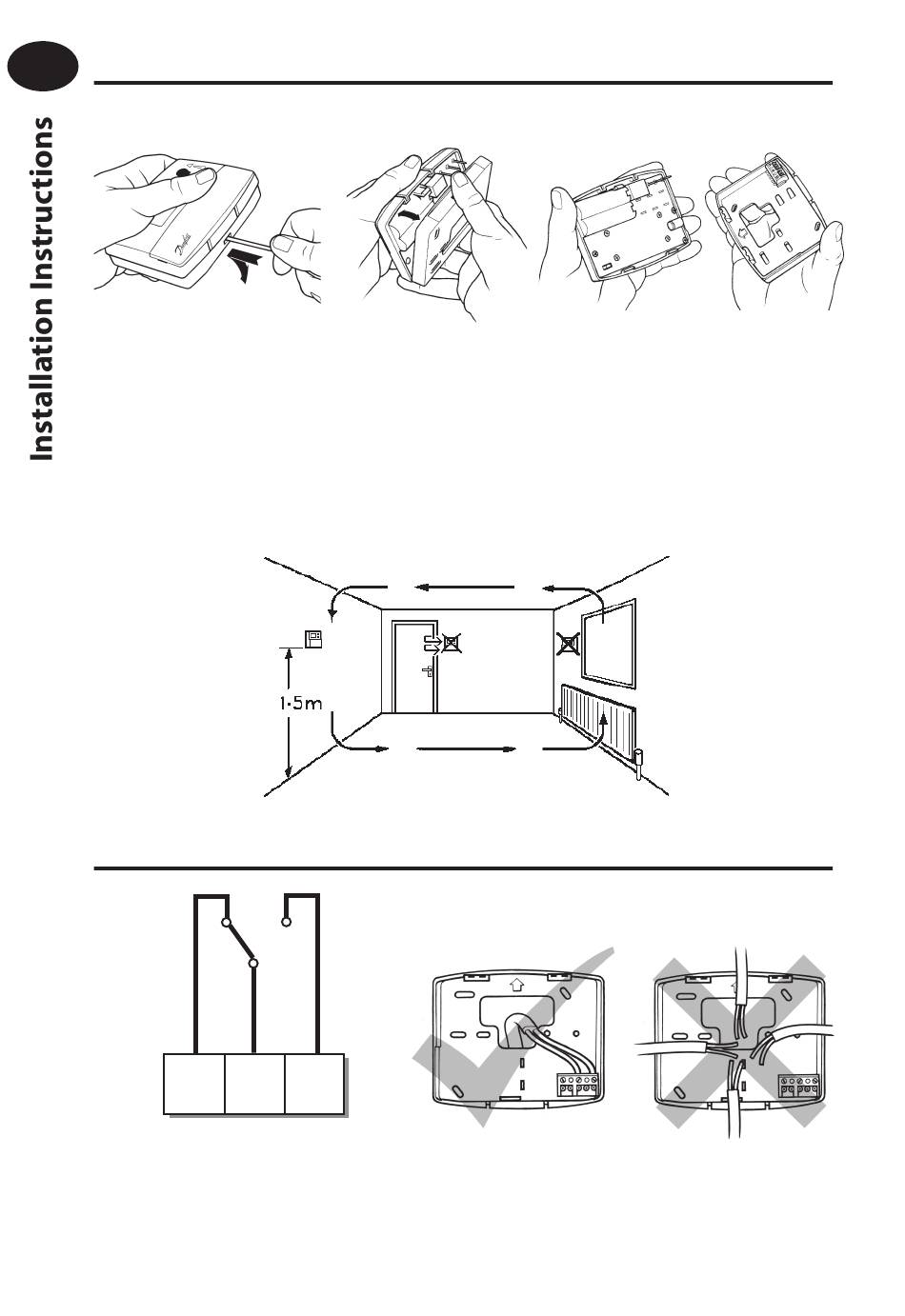

Installation

First, remove the wallplate from the back of the unit.

From the top left hand corner of the wallplate, there must be

clearances of at least 150mm to the right, 15mm to the left, 30mm

above and 100mm below in order to mount the plug-in module.

Fix at a height of approximately 1.5m from the ﬂ oor, away from

draughts or heat sources such as radiators, open ﬁ res or direct

sunlight.

OFF

Some existing thermostats will have a Neutral and/or Earth wire connected.

These are not required by the TP4000 and must NOT be connected to any TP4000

terminals. Instead they should be made electrically safe and coiled in the recess at

the back of the TP4000.

N/C

N/O

2 3

COM
