IEI Technology PulM-10G4T AQC107 Quick Installation Manual

PulM Series
PulM-10G4T-AQC107
w w w. i e i wor l d. co m
Package Contents

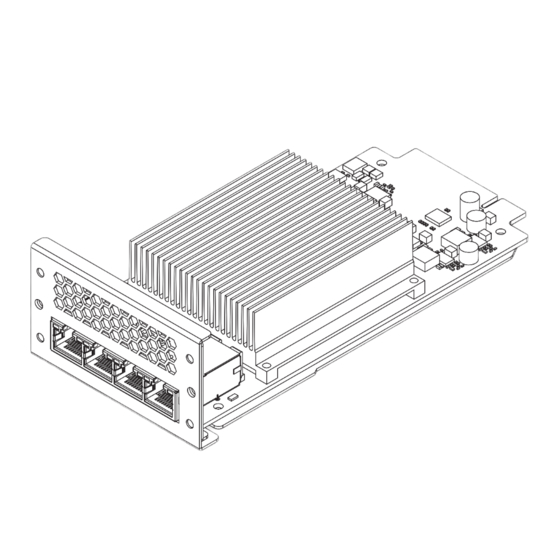

PulM-10G4T-AQC107
Torx Screws x 2
Hardware Installation
Slot A
CPU
DMI GEN3 x4
One PCIe x8 or
Two PCIe x4
Slot A
PCIe Con guration
x8
x4 x4
A
Torx Wrench x 1
Slot B
PCH
Four PCIe x2 or
Two PCIe x4
Slot B
PCIe Con guration
x2 x2 x2 x2
x4 x4
A19 A32 PCIe Con g.
0
B
0
1
Networking Module Quick Installation Guide
PulM-10G4T-AQC107 Block Diagram
PCIe CONF. MODE A32
Four x2 0
A19
PCIe 3.0
A32
LAN LED Status
LAN Port
Link Speed
LED LED
Install the PulM-10G4T-AQC107 networking module into the slot
of the PUZZLE series. The Slot A supports 8 lanes from CPU (1 PCIe
x8 or 2 PCIe x4); the Slot B supports 8 lanes from PCH (2 PCIe x4 or
4 PCIe x2). When the PulM-10G4T-AQC107 is installed into the slot
A, only two LAN ports (port 1 & port 3 ) are active.
Slot
0 4x2 B
1 2x4 A & B
0 1x8 A
A19
0
Ethernet 10G
AQC107
Ethernet 10G
AQC107
Ethernet 10G
AQC107
Ethernet 10G
AQC107
LED State Description
Link (Left) Yellow Active
Orange 10 Gbps date rate
Speed (Right)
Green 5 Gbps/1 Gbps/ 100 Mbps
RJ-45
RJ-45
RJ-45
RJ-45
