PulM Series

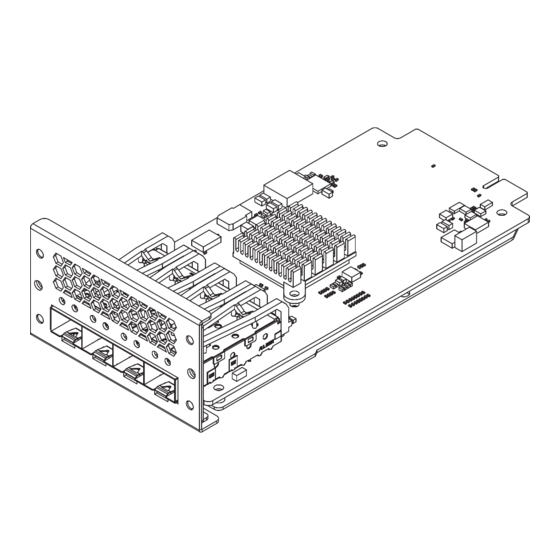

PulM-10G4SF-XL710
w w w. i e i wor l d. co m
Package Contents
PulM-10G4SF-XL710
Torx Screws x 2
Hardware Installation
Slot A
CPU
DMI GEN3 x4
One PCIe x8 or
Two PCIe x4
Slot A
PCIe Con guration
x8
x4
x4
A
Torx Wrench x 1
Slot B
PCH
Four PCIe x2 or
Two PCIe x4
Slot B
PCIe Con guration
x2
x2
x2
x2
x4
x4
A19 A32 PCIe Con g.
0
B
0
1
Networking Module Quick Installation Guide
PulM-10G4SF-XL710 Block Diagram
PCIe CONF. MODE
A32
One x8
0
A19
PCIe 3.0
A32
LAN LED Status
LAN Port
LED
Link (Right)
Speed
Link
LED
LED
Speed (Left)
Install the PulM-10G4SF-XL710 networking module into the slot of
the PUZZLE series. The Slot A supports 8 lanes from CPU (1 PCIe x8
or 2 PCIe x4); the Slot B supports 8 lanes from PCH (2 PCIe x4 or 4
PCIe x2). When the PulM-10G4SF-XL710 is installed in the Slot B, The
LAN ports function normally, but with half of the bandwidth.
Slot
0
4x2
B
1
2x4
A & B
0
1x8
A
A19
1
Intel ® XL710
SFI 10G x4
State
Description
Yellow
Active
Green
10Gbps data rate
Off
1 Gbps/100Mbps data rate
SFP+
SFP+
SFP+
SFP+
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for IEI Technology PulM-10G4SF-XL710
Summary of Contents for IEI Technology PulM-10G4SF-XL710
- Page 1 2 PCIe x4); the Slot B supports 8 lanes from PCH (2 PCIe x4 or 4 Slot A Slot B PCIe x2). When the PulM-10G4SF-XL710 is installed in the Slot B, The PCIe Con guration PCIe Con guration LAN ports function normally, but with half of the bandwidth.
- Page 2 Networking Module Installation Step Step Use the Torx wrench to remove the two Torx screws. Remove the slot cover. Save the slot cover screws. Step Step Slide an IEI networking module into the slot until the module Install the previously-removed Torx screws to secure the module is seated in the slot correctly and securely.
