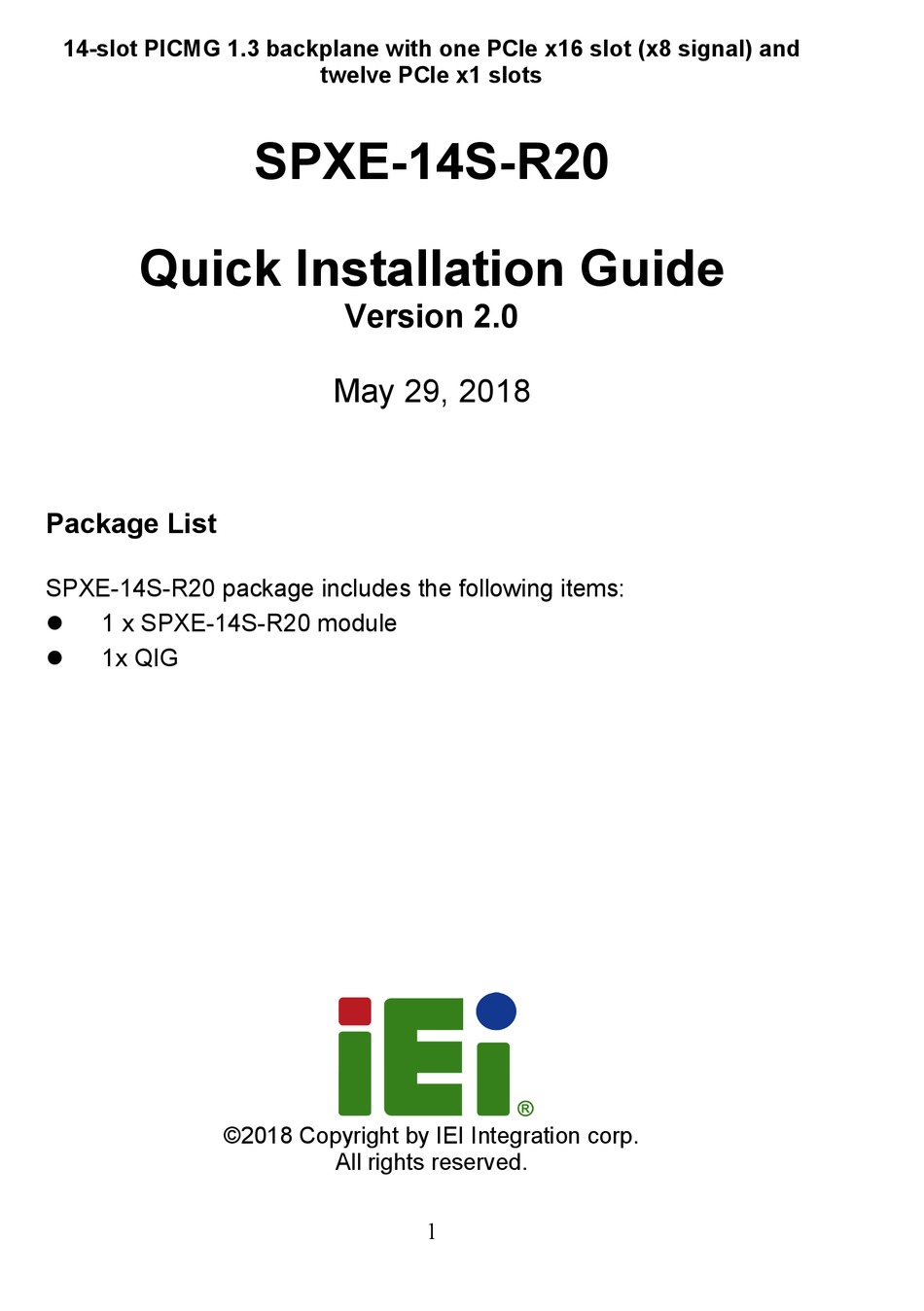

14-slot PICMG 1.3 backplane with one PCIe x16 slot (x8 signal) and
Quick Installation Guide
Package List
SPXE-14S-R20 package includes the following items:
1 x SPXE-14S-R20 module
1x QIG
twelve PCIe x1 slots
SPXE-14S-R20
Version 2.0
May 29, 2018
©2018 Copyright by IEI Integration corp.
All rights reserved.
1
Advertisement
Table of Contents
Related Manuals for IEI Technology SPXE-14S-R20
Summary of Contents for IEI Technology SPXE-14S-R20
- Page 1 14-slot PICMG 1.3 backplane with one PCIe x16 slot (x8 signal) and twelve PCIe x1 slots SPXE-14S-R20 Quick Installation Guide Version 2.0 May 29, 2018 Package List SPXE-14S-R20 package includes the following items: 1 x SPXE-14S-R20 module 1x QIG ©2018 Copyright by IEI Integration corp. All rights reserved.
-
Page 2: Specifications
12 ea from IDT PES8T5 (12 x 1X) Slot type: 1X signal with 4X slot PCI slot: 0 Chassis: Mounting hole compatible with PCI-14S Ordering Information SPXE-14S-R20: 14-slot PICMG 1.3 backplane with one PCIe x16 slot (x8 signal) and twelve PCIe x1 slots RACK-305G: ... - Page 3 Jumpers setting and connectors LABEL FUNCTION USB1 External 4 Port USB Connectors from the mainboard USB2 FAN1 FAN2 Fan Connectors FAN3 FAN4 ATXCTL1 Backplane to mainboard ATX Power Control Connector PWR1 ATX Power Connectors 12V2 ATX12V Power Source Connectors PWRBTN External Power On Button Connector RESET External Reset Button Connector...
- Page 4 PWR1: ATX Power Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION +3.3V +3.3V +3.3V -12V PSON# PWRGD +5VSB +12V +12V +3.3V 12V2: CPU Power Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION +12V +12V +12V +12V PWRBTN: Power on Button PIN NO. DESCRIPTION PIN NO.
- Page 5 SM-BUS: System Management BUS Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION SMCLK SMDAT CN1: PCIE X8 SDVO Control Signal Pin PIN NO. DESCRIPTION PIN NO. DESCRIPTION EXP_EN SDVO_CLK SDVO_DAT IOPWR: I/O Power Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION -12V +12V IPMB_DA 5VSB...
- Page 6 Board Layout: Jumper and Connector Locations （Unit: mm）...
