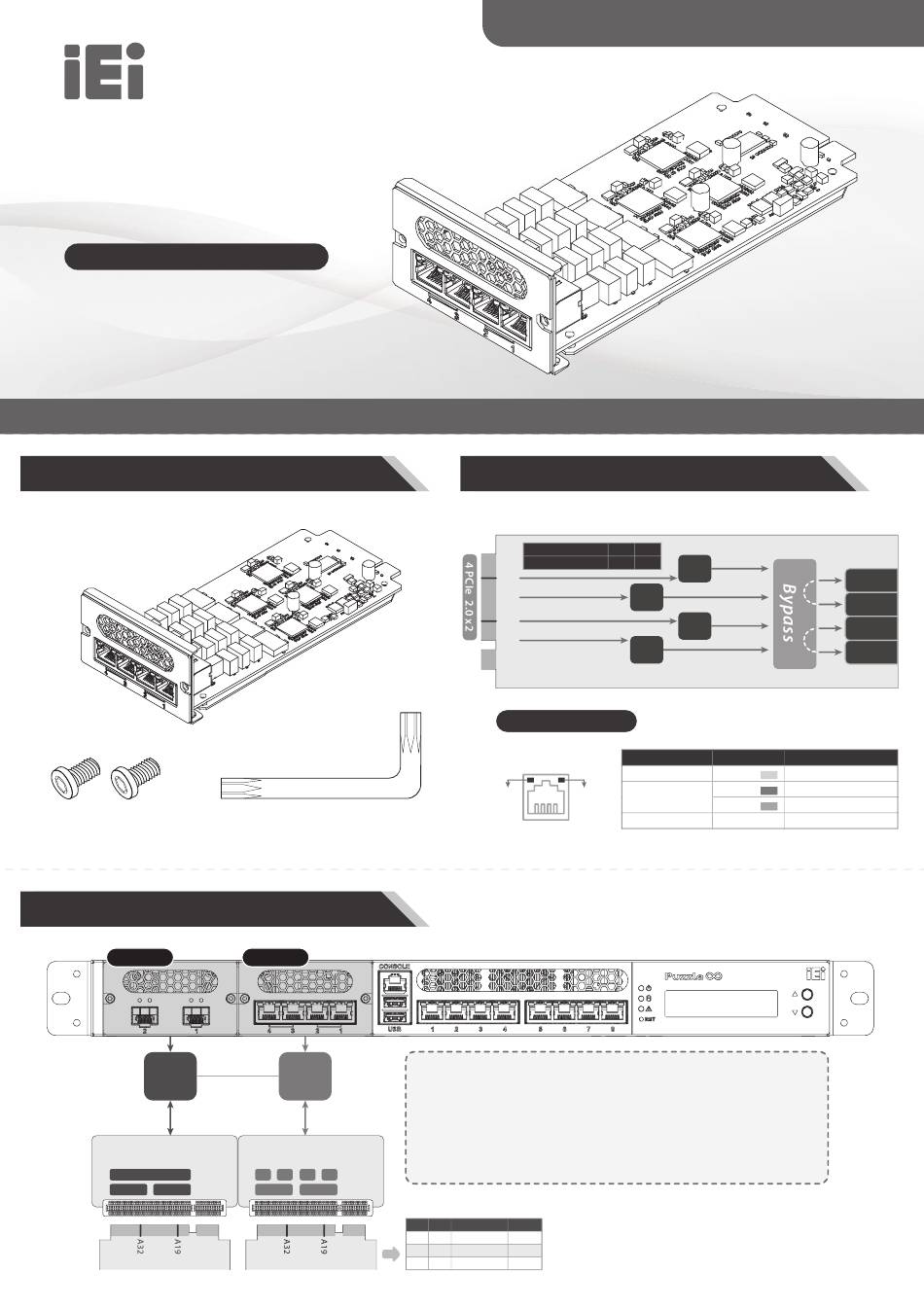

IEI Technology PulM Series Quick Installation Manual

PulM Series
PulM-1G4T-I211-BP
w w w. ieiwor ld. co m
Package Contents
PulM-1G4T-I211-BP
Torx Screws x 2

Hardware Installation

Slot A
CPU
One PCIe x8 or
Two PCIe x4
Slot A
PCIe Configuration
x8
x4 x4
A
Torx Wrench x 1
Slot B
DMI GEN3 x4
PCH
Four PCIe x2 or
Two PCIe x4
Slot B
PCIe Configuration
x2 x2 x2 x2
x4 x4
B
Networking Module Quick Installation Guide
PulM-1G4T-I211-BP Block Diagram
PCIe CONF. MODE
Four x2
A32
A19
PCIe 2.0
LAN LED Status
LAN Port
Link Speed
LED LED
Install the PulM-1G4T-I211-BP networking module into the slot of the
PUZZLE series. The Slot A supports 8 lanes from CPU (1 PCIe x8 or 2
PCIe x4); the Slot B supports 8 lanes from PCH (2 PCIe x4 or 4 PCIe x2).
When the PulM-1G4T-I211-BP is installed in the Slot A, only two LAN
ports (port 1 & port 3) are active; however, the 2-pair bypass is still
available.
A19 A32 PCIe Config. Slot
0 0 4x2 B
0 1 2x4 A & B
1 0 1x8 A
A32 A19
Ethernet 1G
Intel ®
0 0
I211
Intel ® Ethernet 1G
I211
Ethernet 1G
Intel ®
I211
Intel ® Ethernet 1G
I211
LED State
Link (Left) Yellow
Orange
Speed (Right)
Green
Off (Left/Right) Off
RJ-45
RJ-45
RJ-45
RJ-45
Description
Active
1 Gbps date rate
100 Mbps data rate
Bypass function
