Sim-Lab GT1-PRO Instruction Manual page 9

Vario VESA Vario VESA Vario VESA
Plate Pin Holder
1X 2X
B13
B12

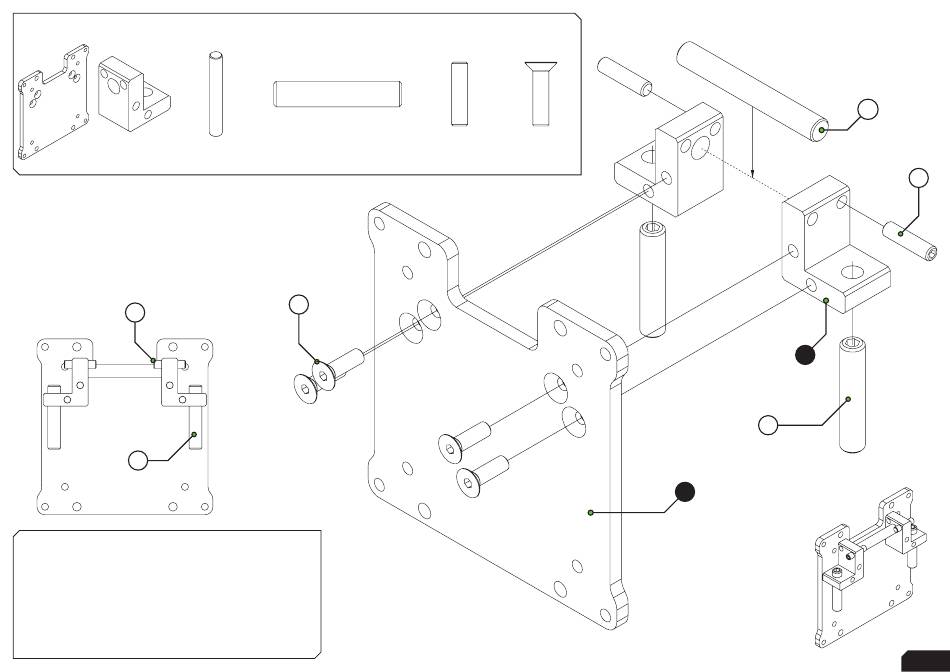

When parts B12 and B13 are installed like above,
monitors are easy to install in a neutral
position. Parts B12 can be adjusted to change
the tilt and/or height.
Parts B13 can be adjusted to adjust the monitor
sideways if needed, and fix it in place.
M8 X 40
Pin (Set Screw)
1X 2X
B6
M5 X 20 M5 X 20
(Set Screw)
2X 4X
B3
B12
B2
B4
B13
