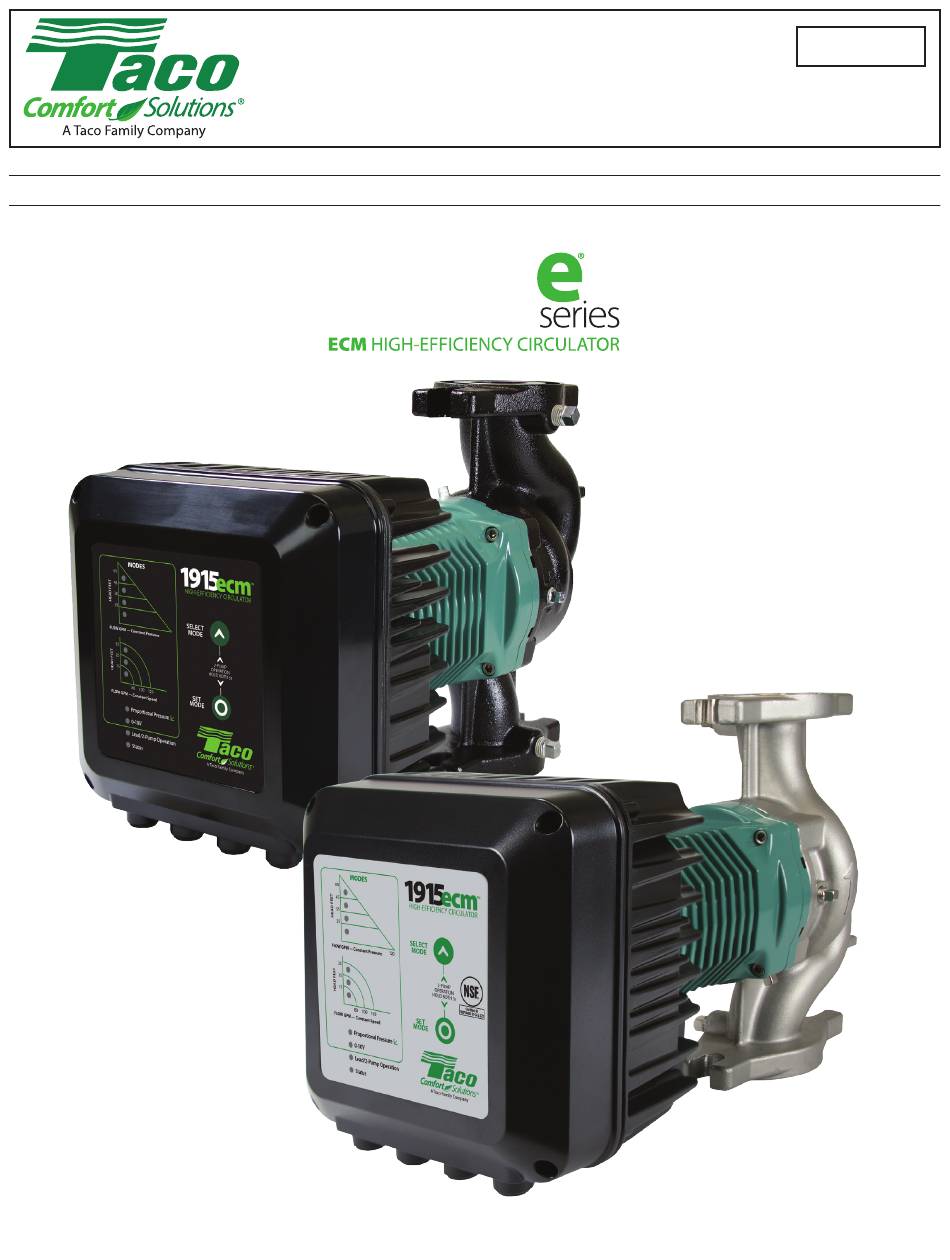

- Page 1 Instruction Sheet 302-388 1915ecm ECM High-Efficiency Circulator SUPERSEDES: July 29, 2019 Effective: January 10, 2023 Plant ID No. 001-5031...
-
Page 2: Table Of Contents
Table of Contents Section 1 - Installation and Operation Section 2 - Controller Operation General Use ............3 Features ..............7 Safety ..............3 19. Specifications ............7 Pump Description ..........3 Controller Layout ........... 8 Features ..............3 Connection Considerations ........8 Use ................ -
Page 3: Section 1. Installation And Operation

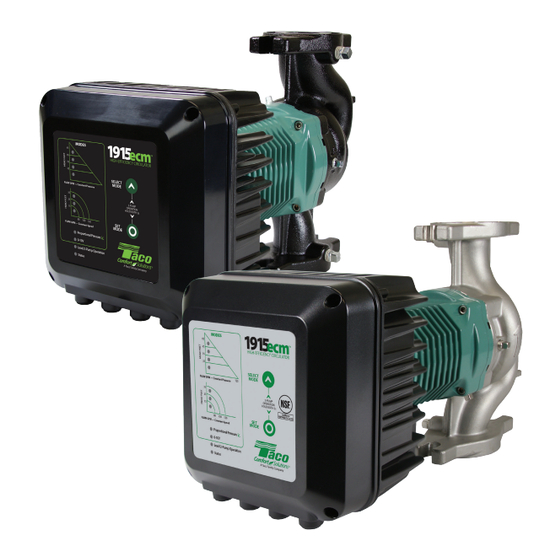

AVERTISSEMENT: Ne pas actionner la pompe si le couvercleélectrique n’est pas correctement fixé. 1 - General Information Uses The 1900e series circulating pumps are available in 2 versions. The ductile iron version is used for the transfer of liquid media within a closed-loop Warning: Pump motor, electronics enclosure and conden- hot-water heating or air-conditioning hydronic system. -
Page 4: Pumped Fluids
The 1915ecm uses a mechanical seal. To ensure reliability of the seal, a minimum continuous safe flow rate of 9 gpm at full load (15% of BEP flow) 7 - Motor Rotation Procedure is recommended. Ensure flange bolts are adequately torqued. The 1900e series model pumps can be installed with the motor shaft in the Caution: If system is filled and pressurized, shut off valves before and after the 1900e series pump. Allow to cool if system fluid is hot. horizontal position or the vertical position with the control module facing up (see Figure 1). -
Page 5: Control Panel Ui Rotation
Check to make sure the impeller/shaft assembly will rotate. separately. (see Section 8 Control Panel UI Rotation Procedure) If the impeller does not spin freely, contact Taco Technical Support d. Reinstall the motor assembly to the pump housing being sure not to at 1 (401) 942-8000. -
Page 6: Setup And Operation
f. Connect the black wire of the pump Long Press (10 seconds) – LOCKOUT to the “Hot/ Live” wire of the • Pressing and holding the [O] Set Mode Button for 10 seconds system. Typically black, or red activates or deactivates pump LOCKOUT. In LOCKOUT, the cur- wire if no black wire is present. -
Page 7: Specifications
Note: Supply voltages below 230V may result in performance reduction at low flow. — For 1915ecm only. Section 2. Controller Operation 18 - Features General Data This section describes the controller features for 1900e series of pumps. Also see appropriate pump < 95% relative, The controller is used for various remote control applications, including: Ambient Humidity... -
Page 8: Controller Layout
20 - Controller Layout Terminal Designation Description Used to enable alarm output, Relay is closed during normal operation and open during alarm. RELAY OUTPUT Used to enable Lag pump when in 2 pump operation. The primary pump relay is used to turn on/off the Lag pump through the slave enable input. -
Page 9: Connection Examples
21.1 - Connection Examples DEFAULT (FACTORY) Configuration REMOTE START - Analog Control 1 REMOTE START - Analog Control 2 REMOTE START - Analog Control 3 - 9 -... - Page 10 2-PUMP OPERATION - Lead Pump To Enable Input of Lag Pump From 0 - 10VDC Output from Lag Pump 2-PUMP OPERATION - Lag Pump From Relay Output on Lead Pump To 0 - 10VDC Input on Lead Pump - 10 -...
-
Page 11: Fault Finding & Error Codes
Analog Control Curve 0-10v Analog Control MAX. Function Voltage Voltage Pump at > 1 V < 3 V minimum speed. Pump is at = 0 V < 2 V 1/2 speed. Speed is proportional > 3 V 3 to 10 V to voltage regulation. -
Page 12: Limited Warranty Statement
LIMITED WARRANTY STATEMENT Taco, Inc. will repair or replace without charge (at the company’s option) are substantially similar in design and functionally equivalent to the any commercial pump product or part which is proven defective under defective product or part. Taco reserves the right to make changes in normal use within one (1) year from the date code.
