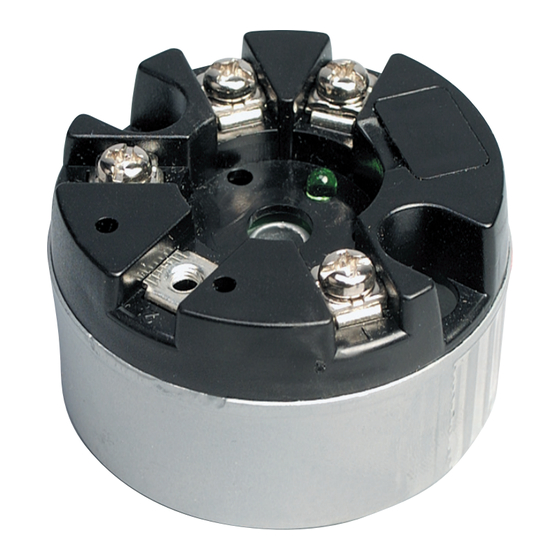

- Page 1 User’ s Guide Shop online at omega.com e-mail: info@omega.com For latest product manuals: omegamanual.info MADE IN TAIWAN TX31 Thermocouple Input 2-Wire Head-Mounted Transmitter...
- Page 2 The TX31 is performed by means of a 3 DIP-switch array for coarse range setting, and two multi-turn potentiometers (ZERO & SPAN) which are used for the final fine-tuning. The unit is housed in a metal enclosure with a plastic top cover, fitting into DIN B connection heads providing excellent RFI immunity.The TX31 accepts low level signal from thermocouple,...
- Page 3 Note: The DIP-switch is protected by a small tip which has to be moved before setting Table 1 Switch settings for Span Wiring Connections Dimensions mm(inch) H=27 NOTE: When change span by dip switch, the transmitter will be calibrated again for best accuracy Adjustments Connect signal source (calibrator) to the unit, power on warm up 10 minutes.
- Page 4 European New Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification. The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice. WARN- ING: These products are not designed for use in, and should not be used for, human applications.
