Proctor Silex 43686, 43687 - Coffee Maker Manual

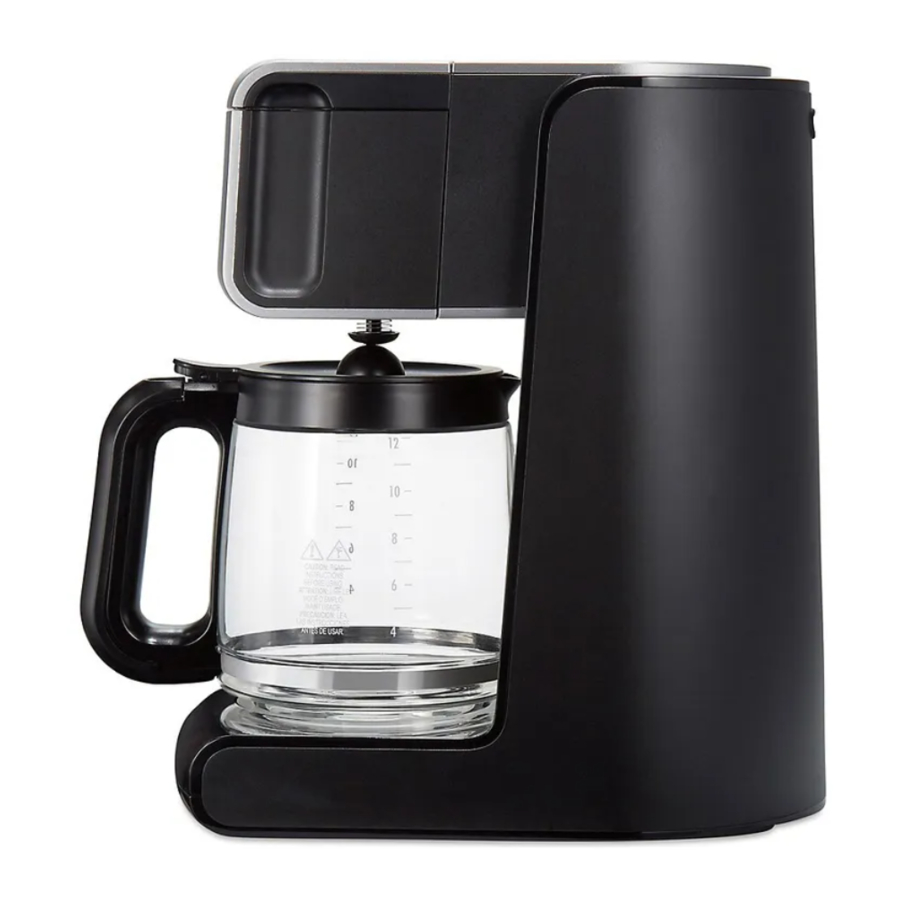

Parts and Features

Parts and Features - Part 1
Parts and Features - Part 2

  1. Water Fill Lid
  2. Swing-Out Brew Basket
  3. Filter Basket
  4. Carafe
  5. Warming Plate
  6. Brewing Indicator Light
  7. ON/OFF ( ) BREW Button

To order parts, visit:
proctorsilex.com/parts
proctorsilex.ca/parts

How to Make Coffee


If filter basket overflow occurs, unplug coffee maker and allow coffee in filter basket to cool before removing filter basket. To avoid hot coffee overflowing from the filter basket:

  • When using decaffeinated coffee, do not exceed the coffee manufacturer's recommended serving amount.
  • The carafe must be replaced within 20 seconds of being removed to prevent overflow.

Before first use: Clean Coffee Maker by following steps in "Care and Cleaning."

  1. Place a 8–12 cup basket style paper filter in Filter Basket. Ensure Filter Basket is fully inserted into Brew Basket.
  2. Add desired amount of ground coffee to paper filter. Use one level tablespoon ground coffee for each cup.
  3. Push Brew Basket counterclockwise to close, and ensure it clicks into place. Do not open until brewing cycle is complete and unit is cool.
  4. Fill Carafe with desired amount of water. Lift Water Fill Lid and slowly pour water into reservoir. Do not fill above maximum mark on reservoir.
  5. Close Water Fill Lid.
  6. Place Carafe, with lid attached, on Warming Plate.
  7. Press ON/OFF ( ) BREW Button to start brewing and Brewing Indicator Light will illuminate white. Press OFF ( ) Button after brewing or Coffee Maker will automatically shut off after 2 hours.

Brewing Chart

  • Measurements are based on a 5 oz. (148 ml) cup of coffee.
  • These measurements will vary based on type of coffee used.
Cups of Coffee to Make* Water Needed to Brew Ground Coffee Needed
12 60 oz. (1774 ml) 12 tbsp. (60 g)
10 50 oz. (1478 ml) 10 tbsp. (50 g)
8 40 oz. (1183 ml) 8 tbsp. (40 g)
6 30 oz. (887 ml) 6 tbsp. (30 g)
4 20 oz. (591 ml) 4 tbsp. (20 g)

*1 standard cup of coffee = 5 oz. (148 ml)

Features

Pause 'N Serve

This feature allows you to pour a cup of coffee before entire brew cycle has completed. By removing Carafe, flow of coffee will temporarily stop. Flow of coffee will resume when Carafe is returned to Warming Plate.


Return carafe to base within 20 seconds. Hot water continues to flow into filter basket when this feature is used. Overflowing coffee and hot water are a burn hazard.

Digital clock (on select models)

To set clock:

  1. Plug in Coffee Maker.
  2. To set time of day, pulse HOUR button until desired hour is set in AM or PM. Pulse MIN button until desired minutes are set.

How to program BREW LATER (on select models)

  1. Make sure clock is set for correct time of day.
  2. Fill Coffee Maker with desired amount of water and coffee. Place Carafe with lid on Warming Plate. Close Water Fill Lid.
  3. While holding BREW LATER button, pulse HOUR button to set desired brewing hour in AM or PM. Then, pulse MIN button to increase to set minutes. Set time will display. Release BREW LATER button and current time is displayed.
  4. Press and release BREW LATER button again to activate automatic brew. BREW LATER light will come on.

Care and Cleaning

  1. Unplug Coffee Maker.
  2. Carafe, Filter Basket, and Lid are dishwasher-safe, or wash in hot, soapy water. Rinse and dry.
  3. Wipe outside with a soft damp cloth and dry. Do not use abrasive cleaners, as they will scratch finish of product.

NOTE: Clock models will display CLEAN to let you know it is time to clean your Coffee Maker.

Monthly Cleaning

  1. Plug in Coffee Maker.
  2. Follow "How to Make Coffee," adding 1 cup (237 ml) of plain white vinegar instead of water to water reservoir for one brew cycle.
    NOTE: Do not add coffee or a filter in "How to Make Coffee" steps.
  3. Press BREW ( ) Button to start. After 30 seconds, press BREW ( ) Button to turn off. Wait 30 minutes to allow vinegar to clean. Then press BREW ( ) Button again to turn Coffee Maker off. When finished, let cool. Follow steps 4 and 5.
  4. Empty Carafe and rinse. Open Water Fill Lid. Pour desired amount of water into water reservoir. Place Carafe on Warming Plate. Close Water Fill Lid.
  5. Press BREW ( ) Button to turn on. When brew cycle is complete, empty Carafe and press BREW ( ) Button to turn off. Allow to cool, then repeat with one more carafe of cold water.
  6. Press OFF ( ) Button after brewing or coffee Maker will automatically shut off after 2 hours.
