729 082/95575/23MM90141-PW13
729 086/94004/23MM90141-PC78
729 084/95582/23MM90141-PG03
USE AND CARE GUIDE

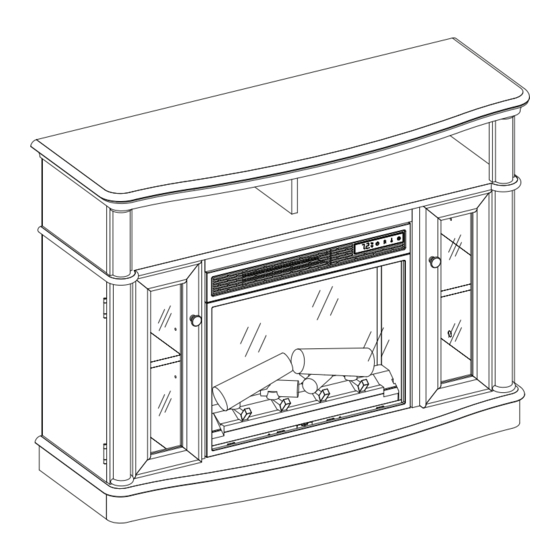

TOLLESON ELECTRIC FIREPLACE
QUESTIONS, PROBLEMS, MISSING PARTS? BEFORE RETURNING TO THE STORE,
CALL HOME DECORATORS COLLECTION CUSTOMER SERVICE
8 A.M. - 7 P.M., EST, MONDAY - FRIDAY, 9 A.M. - 6 P.M., EST, SATURDAY
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators through the purchase of this electric fireplace. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 23MM90141-PW13 and is the answer not in the manual?

Questions and answers

Related Manuals for Home Decorators Collection 23MM90141-PW13

Summary of Contents for Home Decorators Collection 23MM90141-PW13

  • Page 1 USE AND CARE GUIDE TOLLESON ELECTRIC FIREPLACE QUESTIONS, PROBLEMS, MISSING PARTS? BEFORE RETURNING TO THE STORE, CALL HOME DECORATORS COLLECTION CUSTOMER SERVICE 8 A.M. - 7 P.M., EST, MONDAY - FRIDAY, 9 A.M. - 6 P.M., EST, SATURDAY 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS THANK YOU We appreciate the trust and confidence you have placed in Home Decorators through the purchase of this electric fireplace.

  • Page 2: Table Of Contents

    Table of Contents Maximum Load Warning ........... 2 Package Contents .............. 7 Safety Information ............. 3 Assembly ..............8 Warranty ..............5 Operation ..............18 Pre-Assembly ............. 6 FCC/IC Information ............20 Hardware Included ........... 6 Care & Cleaning ............20 Product Specifications ............

  • Page 3: Safety Information

    Safety Information Please read and understand this entire manual before attempting to assemble, operate or install the product. If you have any question regarding the product, please call customer service at service at 1-800-986-3460, 8 a.m.-7 p.m., EST, WARNING: Under no circumstances should this fireplace be Monday-Friday, 9 a.m.
  • Page 4 Safety Information (continued) NOTE: Use care in assembling your new fireplace. Take your time and use the hardware provided and a quality Phillips head screwdriver. Never overtighten bolts. • Do not sit on any part of the mantel. NOTE: To avoid injury from unexpected starting or electrical shock, do not plug the power cord into a source of power during unpacking and assembly.

  • Page 5: Warranty

    Warranty Warranty 1 Year Limited Warranty: The manufacturer warrants that your new Electric Fireplace is free from manufacturing and material defects for a period of one year from date of purchase, subject to the following conditions and limitations. Install and operate this appliance in accordance with the installation and operating instructions furnished with the product at all times.

  • Page 6: Pre-Assembly

    Pre-Assembly HARDWARE INCLUDED Part Description Part Number Quantity Wood Dowel PH-DWLNTL001 Shelf Pin PH-SPNPCSPLB2 Knob (with Screw) Screw 3 x 12 mm PH-SCRBLK007 OR PH-SCRZNC007 Door Hinge PH-HNGDQB003 OR PH-HNGQSV003 Screw 4 x 50 mm PH-SCRBLK006 Screw 4 x 15 mm PH-SCRBLK009 OR PH-SCRZNC009 Angle Bracket PH-BKTBLK007...

  • Page 7: Package Contents

    Pre-Assembly (continued) PACKAGE CONTENTS NOTE: All panels are labeled left and right as viewed from the front of unit. Part Description Quantity Bottom Base Panel Left Center Panel Right Center Panel Upper Front Panel Left Side Panel Right Side Panel Top Assembly Center Shelf Left Decorative Side Panel...

  • Page 8: Assembly

    Assembly Aligning the center panels Preparing the center panels Place the Left Center Panel (B7) and the Right Center Slide together Left Center Panel (B7) into Bottom Base Panel (C7) onto a flat surface. Panel (A7) aligning the dowels into the pre-drilled holes. Insert the Wood Dowels (AA) into the pre-drilled holes as Repeat this step for the Right Center Panel (C7).
  • Page 9 Assembly (continued) Attaching the upper front panel Securing the bottom base panel Insert Screws (FF7) into the pre-drilled holes in the Flip-up the base assembly and locate the Metal Plate Bottom Base Panel (A7). (NN7) pre-attached in Upper Front Panel (D7). Secure using a Phillips screwdriver.
  • Page 10 Assembly (continued) Securing the side panels Preparing the center panel Align the Right Side Panel (F7) to the Bottom Base Panel Place the Center Panel (H7) on a flat surface. (A7), as shown. Align the Magnetic Catches (II7) with the pre-drilled Insert Cam Locks (MM7) into the pre-drilled holes and holes in the bottom of Center Panel (H7).
  • Page 11 Assembly (continued) Preparing for the center panel Attaching the center panel Insert Wood Dowels (AA) into the pre-drilled holes, as Align the Center Panel (H7) to the base assembly, as shown. shown. Insert Cam Locks (MM7) into the pre-drilled holes and secure using a Phillips screwdriver.
  • Page 12 Assembly (continued) Installing decorative side panels Installing the divider Align Right Decorative Side Panel (J7) to the base as- Align Divider (K7) to the base assembly, as shown. sembly, as shown. Insert Screw (FF7) into the pre-drilled hole in the bottom Insert Cam Locks (MM7) into the pre-drilled holes and in Center Shelf (H7) secure using a Phillips screwdriver.
  • Page 13 Assembly (continued) Installing the top assembly Preparing the top assembly Align the Top Assembly (G7) onto the base Place the Top Assembly (G7) onto a flat surface. assembly as shown. Insert Cam Lock Screws (LL7) into the pre-drilled Insert Cam Lock (MM7) into the pre-drilled holes holes in the Top Assembly (G7) and secure with a and secure with a Philips screwdriver.
  • Page 14 Assembly (continued) Attaching the handles Remove the preassembled screws from the Knob with Screw (CC7), then attach the Knob with Screw (CC7) to the Left Door (L) and Right Door (M) with the screws. Attaching the doors Align the Right Door (M) with the Right Side Panel (F7).
  • Page 15 Assembly (continued) Installing the back panels Insert the Screws (DD7) through the pre-drilled holes in the Upper Back Panel (N) and the Side Back Panels (O). Attaching the adjustable shelves Insert the Shelf Pins (BB7) into the pre-drilled holes on the inside of the Left Side Panel (E7) and the Left Center Panel (B7).
  • Page 16 Assembly (continued) Installing the fireplace insert into the mantel assembly Lift the Fireplace Insert (Q) carefully into the back of the unit and center in the fireplace insert opening. Do not drag the fireplace insert across the Base as it may scratch your unit. Securing the fireplace insert Insert the Screw (GG7) through the Angle Bracket (HH7) into the pre-drilled hole in the Bottom Base Panel (A7).
  • Page 17 Assembly (continued) Installing the tipping restraint hardware When the Tipping Restraint Hardware (KK7) is properly installed, it can provide protection against unexpected tipping of the Unit due to small tremors, bumps or climbing. Your Unit comes with two Tipping Restraint Hardware Wall (KK7).

  • Page 18: Operation

    Operation Operation NOTE: The control panel can be accessed at the upper-right corner of the insert. Powering the fireplace Adjusting the flame Push the Power button to supply power to all There are 6 brightness levels that can be selected: functions of the fireplace and put the insert in a standby mode.
  • Page 19 Operation (continued) Replacing the remote control battery Disposing of used batteries The battery may contain hazardous substances that When the remote control stops operating or its range could endanger the environment and human health. seems reduced, it is time to replace the battery with new ones.

  • Page 20: Fcc/Ic Information

    FCC/IC Information WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules.

  • Page 21: Troubleshooting

    Troubleshooting PROBLEM ROOT CAUSE CORRECTIVE ACTION Unplug the fireplace, remove the back panel of the fireplace and check that the thermo- The thermostat sensor is stat is plugged into the main circuit board. Display shows " " broken or disconnected. If this does not solve the problem contact customer service for a replacement thermostat sensor.
  • Page 22 Troubleshooting (continued) PROBLEM ROOT CAUSE CORRECTIVE ACTION Flame effect works but heater With the power on press and hold the POWER function does not and the emberbed button on the control panel for 10 seconds. The heater is disabled. flashes when the Heater button is Once re-enabled the emberbed lights will pressed.

  • Page 23: Replacement Parts

    Replacement Parts For replacement parts, call our customer service department at 1-800-986-3460, 8 a.m.-7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday. Part Description Qty. Remote Control Flame Circuit Board Blue LED Circuit Board Flame Generator Drive Motor Thermostat Sensor Blower/ Heater assembly Control Panel Circuit Board...
  • Page 24 Questions, problems, missing parts? Before returning to the store call Home Decorators Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS RETAIN THIS MANUAL FOR FUTURE USE.
